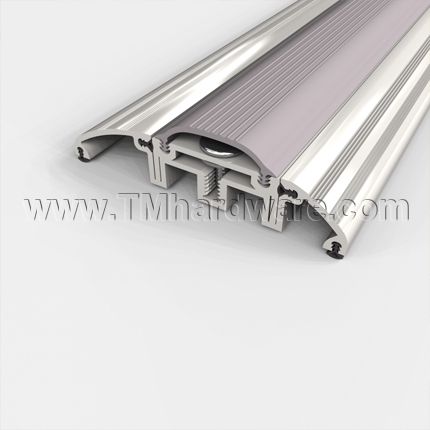

Pemko #249V Adjustable Vinyl Top Aluminum Threshold, 3.5” W, up to 1.125” H
Adjustable Vinyl Top Thresholds function as both a threshold and a door bottom. The vinyl bulb functions as a door seal, thereby eliminating the need for door sweeps and door shoes. It can be adjusted to overcome swelling and/or shrinking of the door and floor. Product has a strong aluminum casing and is fire rated.
SOLD IN STOCK SIZES
Vinyl Top Threshold is made of sturdy aluminum and functions as both a threshold and door bottom seal.
Width: 3-1/2" (3.5")

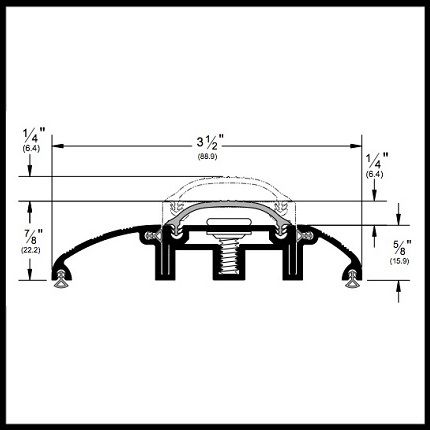

Height: Aluminum saddle has a height of 5/8" (.625"). Vinyl top creates a full height of 7/8" (.875") and can be adjusted an additional 1/4" (.25"). Total height of 1.125" can be acheived.
Door Clearance: Maximum door clearance allowed is .5".
Length: Available in stock sizes 36", 72" and 96"
Saddle Design: Fitted with a vinyl top. Upon closing, the door compresses the rubber to seal door gap. Threshold has concealed, weather-sealed mounting screws and an adjustment mechanism. Vinyl top covers adjusting and installation screws for a seamless look.
Vinyl Seal: The top seal is made of Flexible Vinyl, better known as PVC. Flexible PVC is a thermoplastic polymer material that is widely used in the construction industry largely because it is inexpensive and durable. The material has good chemical resistance to adhesives and most mild cleaning solutions, but has limited ultraviolet and weather resistance.

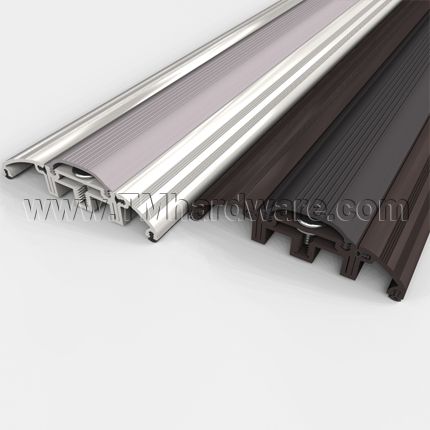

Available Finishes: Aluminum mill finish, dark bronze anodized aluminum
Compliance Details: Fire Rated, UL Listed (see product data for more information)

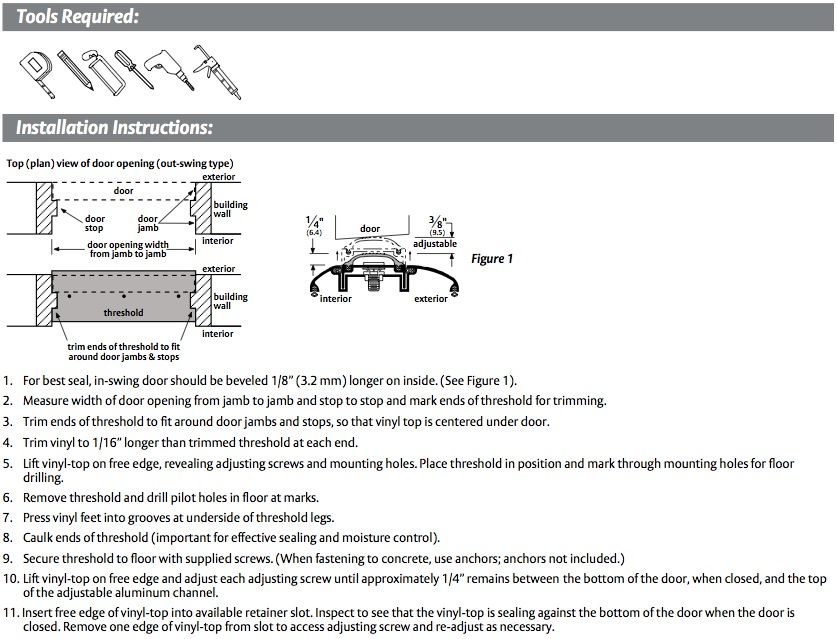

Installation: Installation guide and screws provided. Screws are colored to coordinate with casing. If threshold is being drilled into concrete, an Expansion Anchor is recommended. Please contact us or call us at 845-388-1300 for details.
Insert Replacement: Vinyl Seal is manufactured from high quality material and will last through much usage, however if replacement is required, see our Vinyl Bulb Insert Replacement for Adjustable Doorway Threshold (#249).
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
To see a similar vinyl top threshold that is not adjustable, please see our Vinyl Top Thresholds with Aluminum Casing, 3. 5” W, 1.125” H
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN249_V
- Dimensions
-
Overall Height1.125” Height
-
Overall Width3.5" Width
-
Threshold Length36" Length, 96" Length, 72" Length
-
Required Door Clearance.5" Height
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeRubber Top Threshold
-
Seal TypeVinyl Seal
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Warranty5 Year Limited Warranty
-
