Zero #56FS-557FS Aluminum Meeting Stile, Mortised, With INTUMET and Silicone
This Zero #56FS-557FS mortised meeting stile includes complementing aluminum and silicone meeting stiles designed for use on double active doors. Utilizing Intumet™ intumescent material which expands when heated to prevent the spreading of fire, this meeting stile effectively seals the gap between a pair of doors from the infiltration of fire, in addition to smoke, sound, light, drafts and insects. Available in various finishes and is custom cut to size.
SOLD BY THE FOOT - See the full product details and specs in the tabs below
How to order: This product can be ordered as a full set or as individual parts. Select which parts you would like to order from the 'Options' drop-down box below.
This mortised meeting stile includes complementing aluminum and silicone meeting stiles designed for use on double active doors. The double-lip shaped, self extinguishing, silicone seal compresses against the complementary solid insert to prevent sound from leaking in or out of a room, to provide a weather seal, ensure privacy, and to minimizes the passage of light between the doors.

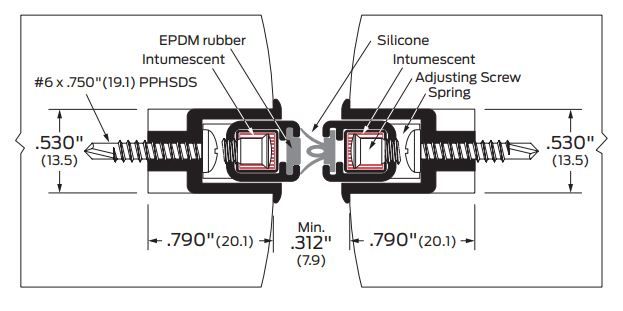

This specialty meeting stile utilizes Intumet™ intumescent material which expands when heated to prevent the spreading of fire. An adjusting screw and stainless steel spring (see product specs) permits the seal to be adapted to effectively close clearance gaps of varying sizes resulting from natural warping or inevitable shifting of the doors.

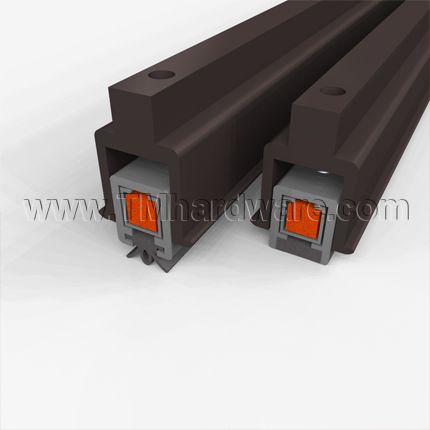

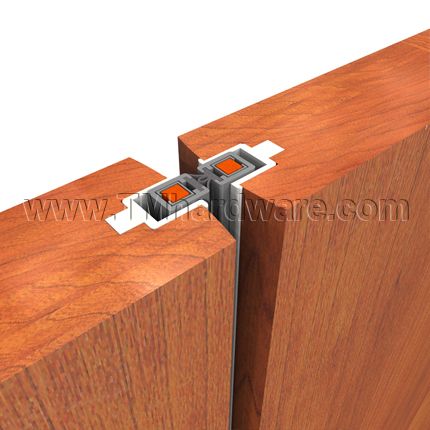

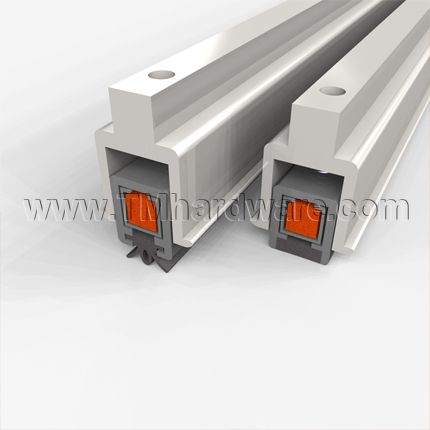

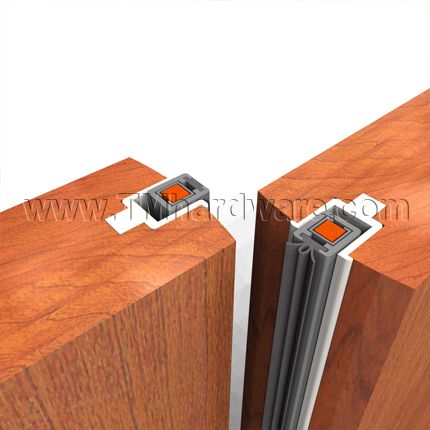

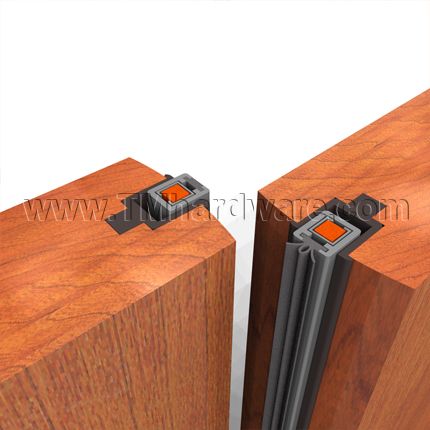

Each astragal has a strong aluminum base designed to be installed within a mortise measuring .790” deep and .530” wide. The mortised application of the meeting stile allows the door to maintain a clean, unobtrusive appearance, making it an optimal choice for high-end designer doors and luxury hotels and condos.

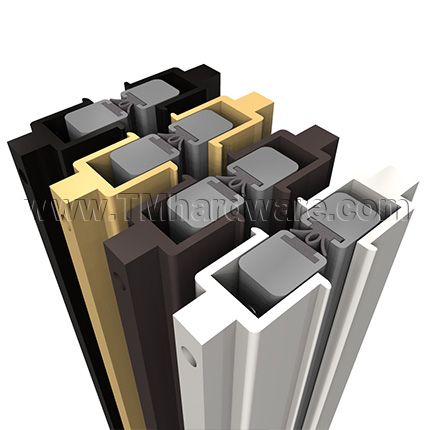

Available in various anodized finishes. Anodizing is an electrolytic process that applies a corrosion-resistant coating to the aluminum for longer wear and color maintenance. This product was anodized to 204 (dipped four times).
How to order: This product can be ordered as a full set or as individual parts. Choose which parts of this meeting stile you would like to order from the drop-down box labeled options above, then choose desired finish and the price will adjust accordingly.
Door Gasket is fitted with FS3003 INTUMET™ material. For more information, see Understanding Intumescent Fire Stop Material.

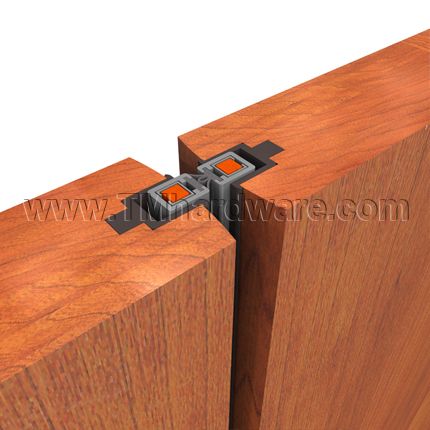

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
Check out our other Meeting Stiles for Double Active Doors.
-
QuickShipNo
-
ManufacturerZero International
-
MPN56FS-557FS
-
OptionsFull Set, Stile with Double-Lip Insert Only, Stile with Solid Insert Only
- About This Product
-
Retainer MaterialAluminum
-
Seal TypeSilicone
-
Door TypeDouble Active Doors
-
MountingFully Mortised
-
- Dimensions
-
Total Height.790"
-
Width.530"
-
- Installation
-
Installation Screws#6 x .750" (19.1) PPHSDS Provided
-
- Finishes
-
FinishBlack Anodized Aluminum (315), Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum
-

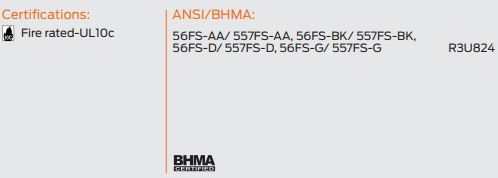

- Compliance Details
-
Compliance DetailsFire Rated, BHMA Certified
-
ANSI DesignationR3U824
-
Warranty1 Year Limited Warranty
-
Click to view more information on this product's UL Fire Rating.
