Zero #365 FS, Automatic Door Bottom, Aluminum with Neoprene and INTUMET Fire Stop, .5" Drop

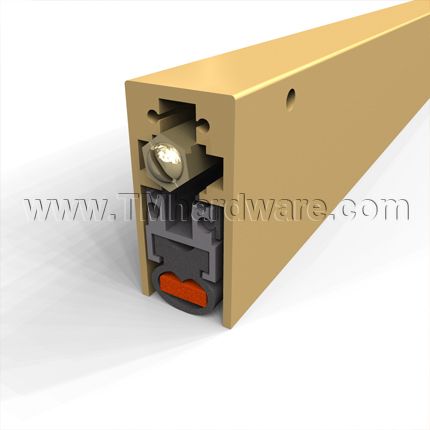

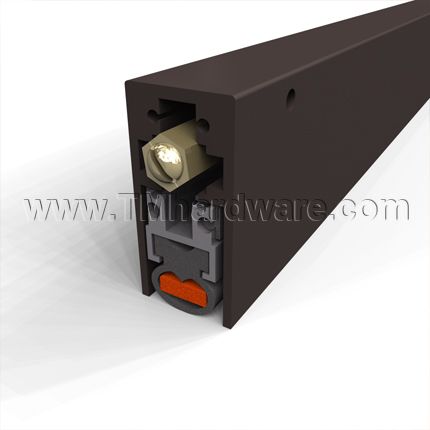

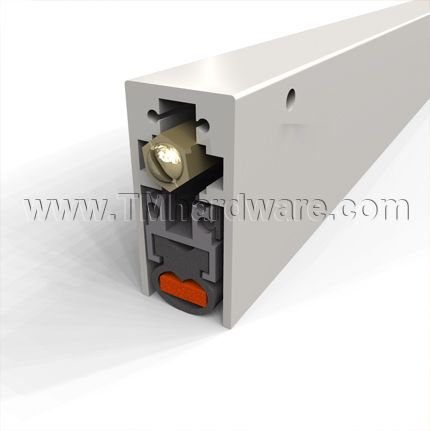

This Zero International #365FS Surface Mounted, Aluminum Automatic Door Bottom has a solid neoprene, self-extinguishing drop seal that closes beneath-the-door gaps of .5”. Seal is filled with Intumet™ Fire Stop material, which expands when heated to prevent the spreading of fire. Available in various anodized finishes and is custom cut to size.
Sizing: To determine length needed, see How to Measure for an Automatic Door Bottom.
How to Order: Selecting Finish and Exact Size required will determine your total price.

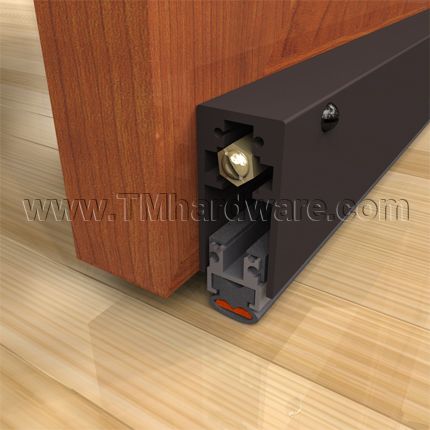

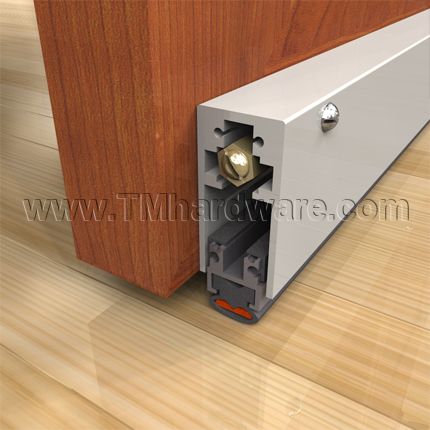

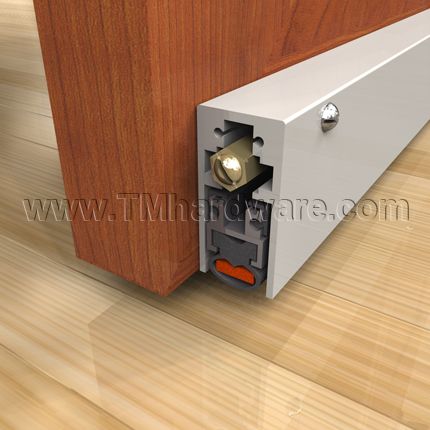

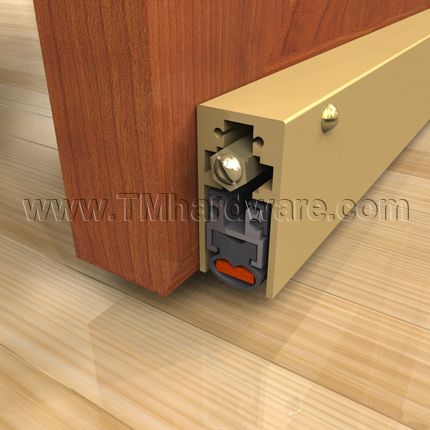

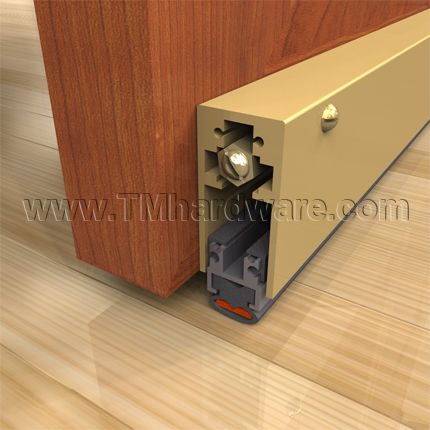

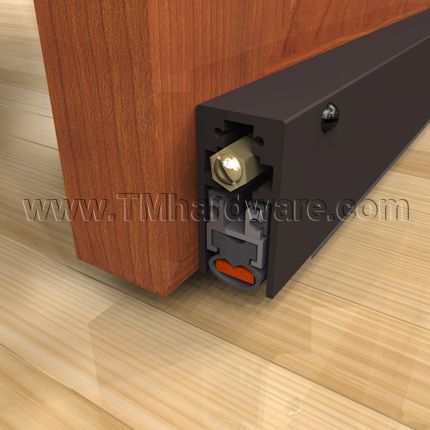

This Surface Mounted Automatic Door Bottom has a solid neoprene, self-extinguishing drop seal that closes beneath-the-door gaps of .5” upon door closure. Anti-squeak rubber lining the interior of the metal housing effectively reduces unwanted noise during use. Door bottom is surface mounted, for easy installation.
About INTUMET Fire Stop Technology: Utilizing Intumet™ Fire Stop intumescent material which expands when heated to prevent the spreading of fire. Fire, smoke, and air infiltration rated. Door Gasket is fitted with FS3003 INTUMET™ material. For more information, see Understanding Intumescent Fire Stop Material.

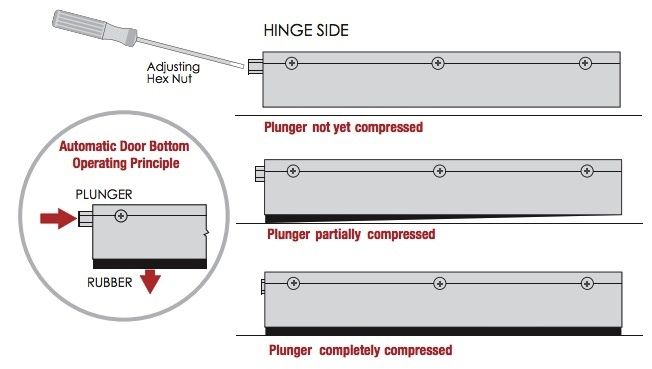

How it Works: The high quality automatic mechanism consists of an aluminum case which surrounds a moveable drop-bar seal. The drop-bar seal is actuated by a plunger which contacts the door frame jamb as the door is closing, forcing the drop-bar seal down against the floor / threshold. The plunger requires low closing force to actuate the drop-bar seal.
The mechanism causes the seal to always actuate on the hinge side first, which prevents the seal from skidding along the floor/threshold while the door is being closed. Door hang-up will not occur! This door bottom is rated for 5 million cycles.
Installation guide and screws provided. Screws are colored to coordinate with door hardware. To determine length needed, see How to Measure for an Automatic Door Bottom.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year warranty against defects in material and workmanship.
Click to view our Full Warranty Policy.
For a mortised product, see our Zero International #364FS Mortised Automatic Door Bottom with Instument Fire Stop Neoprene Bulb
-
QuickShipNo
-
ManufacturerZero International
-
MPN365FS
- Product Design
-
Seal TypeNeoprene Rubber Seal
-
Mounting TypeSurface Mounted
-
Door TypeWooden Door, Hollow Metal Door
-
- Dimensions
-

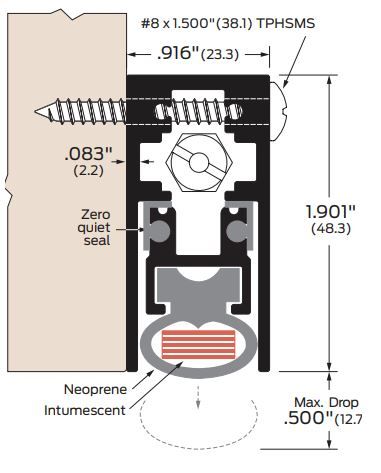

Casing DimensionsThe aluminum casing measures .916" wide, with a height of 1.907". Made of .083" thick aluminum.
-
LengthCustom Cut to Size
-
Drop SizeUp to .5" Drop
-
- Installation
-
HandingNon-Handed
-
Installation ScrewsInstallation Screws Provided
-
SizingTo determine sizing required see 'How to Size an Automatic Door Bottom'
-
- Special Features
-
FireStop MaterialYes
-
- Finishes
-

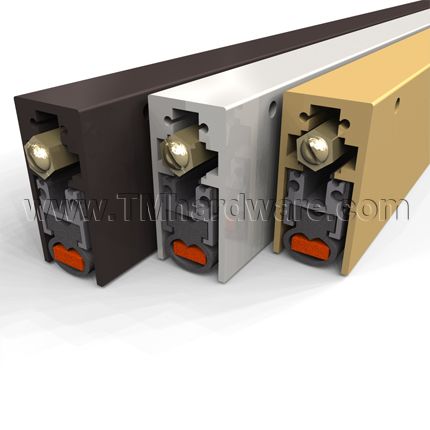

FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum
-
- Compliance Details
-

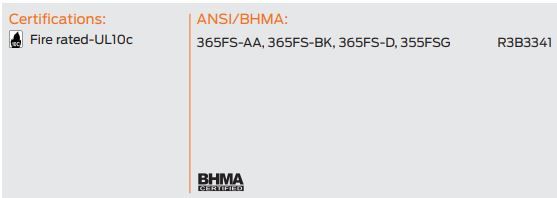

Compliance DetailsFire Rated, BHMA Certified
-
ANSI DesignationR3B3341
-
Warranty1 Year Limited Warranty
-
