Pemko #209 Door Sweep, 1.375" Aluminum Track with .5" Fingered Vinyl Seal

This door bottom sweep is applied to the underside of the door to create a strong seal against smoke, fire, dust, drafts and light without compromising on the appearance of the door. The aluminum track is fitted with a .5" (H) fingered vinyl seal and can be applied to doors with a minimum thickness of 1.375". Available in various finishes to coordinate with door color and length is custom cut to size.

PRICED PER FOOT.

See tabs below for additional information
    • SKU
      PK209AV
    • Market price:$10.40
      • save 10%
    • Starting price: Price: $9.36 per foot


    A door bottom sweep is a simple way to fill gaps under doors and prevent infiltration of smoke, fire, dust, drafts and light. This door bottom sweep is applied to the underside of the door to create a proper seal while maintaining the look of the door. Key features of this model include:

    Track: Aluminum track can be applied to door with a minimum thickness of 1.375". Available in various finishes to coordinate with the color of the door and additional door hardware. The track does not compromise on the appearance of the door.

    Seal: Fitted with a vinyl fingered seal. The fingered design conforms well to surface irregularities, and remains flexible in extreme temperatures, ensuring a proper seal at all times. The seal can fill gaps up to .5" and is smoke and fire rated. Seal is made of high quality material designed to last through many usage, however, if necessary, it can be easy replaced without removing the track.

    Installation: For proper installation, door must be removed. Track is punched with elongated slots to allow for easy adjustment after installation.

    Installation guide and screws provided.

    Insert Replacements: The seal is manufactured from high quality material and will last through many usages, however, if a replacement is needed, see our Fingered Vinyl Insert Replacement for Pemko Door Bottom #209.

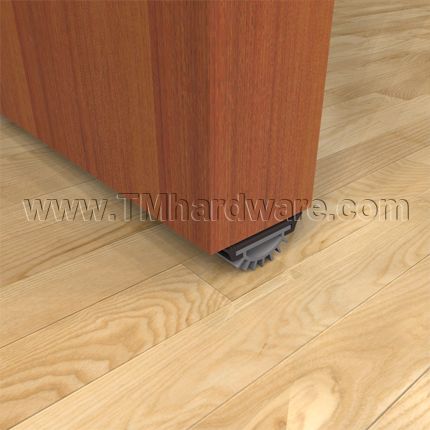

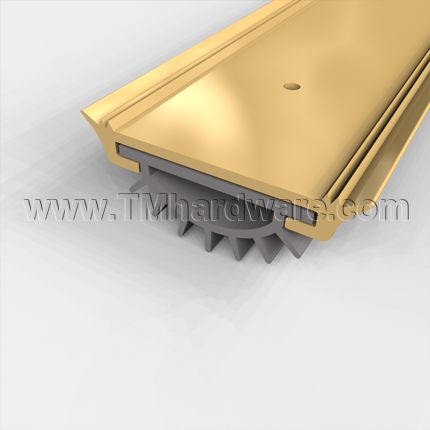

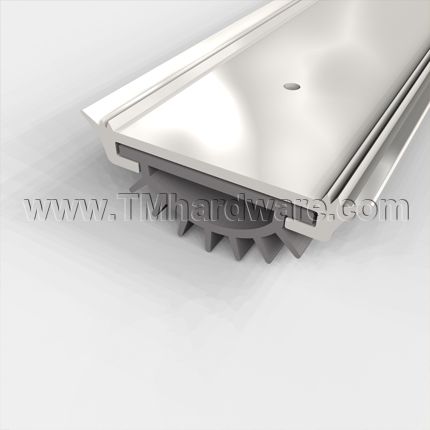

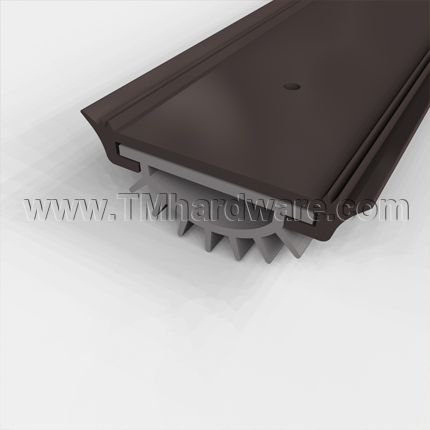

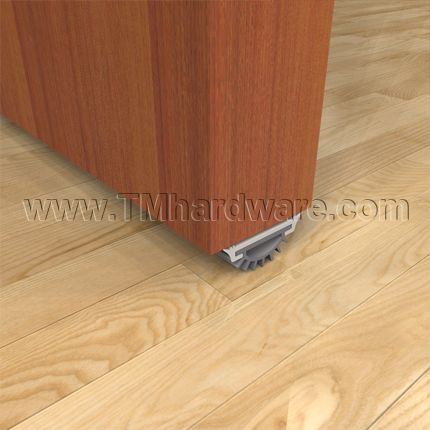

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    To view this product in a Door Shoe Mount, see our U Shaped Door Shoe Sweep with Fingered Seal.

      • SKU
        PK209AV
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      209
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Eco-Vinyl Rubber Seal
      • Mounting
        Underside Mount

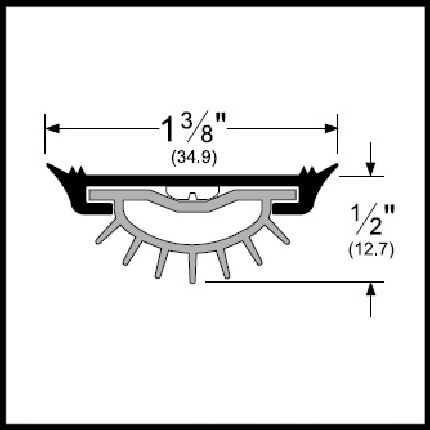

    • Dimensions
      • Seal Height
        1/2" Height
      • Additional Dimensions
        Door seal is 1-3/8" thick
      • Length
        Custom Cut to Size
      • Door Thickness
        1-3/8" Thick
    • Installation
      • Drill Holes
        Drill holes are provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        Fire Rated, Smoke Rated, UL Classified
      • ANSI Designation
        R3D414
      • Warranty
        5 Year Limited Warranty

    Click to Print

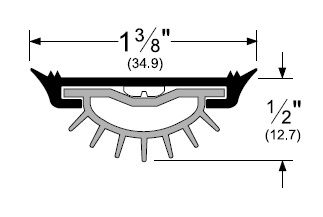

    P209 Product Specs:



    Click to Print

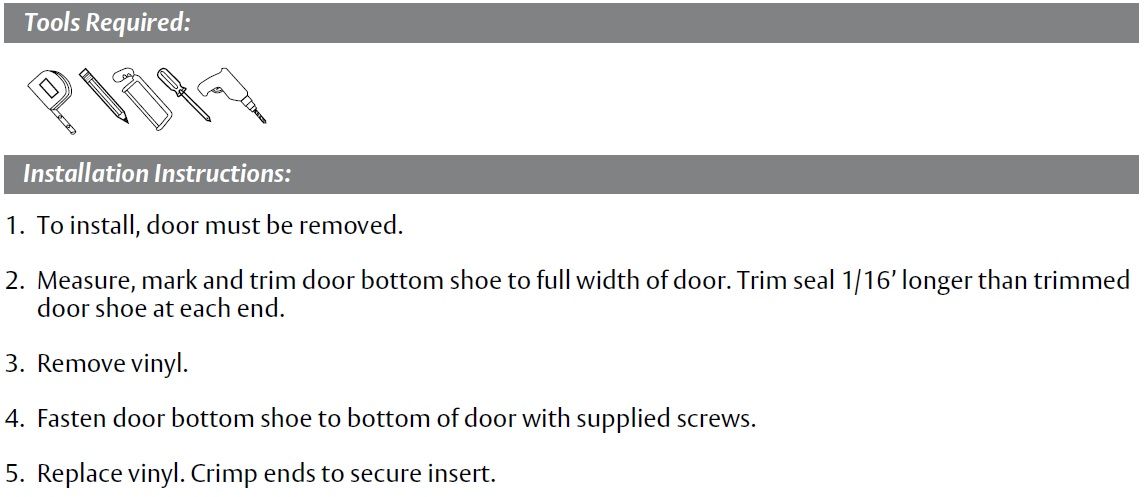

    P209 Installation Guide:

    Click to View Ratings Explained



    Finishes Comply with the Following ANSI / BHMA Codes:
    • Aluminum Mill Finish - US27 / 719
    • Dark Bronze Anodized Aluminum - US10B / 710
    • Gold Anodized Aluminum - US4 / 688
