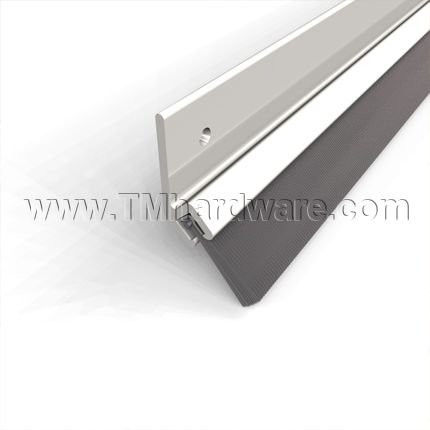

Door Gasket and Sweep, Aluminum with .375" Angled Brush
Clear Anodized with Nylon Brush Door Bottom Application Door Gasket Application Overhead Garage Door Aluminum Mill Finish with Soft Brush Dark Bronze Anodized with Nylon Brush Door Bottom Application Door Gasket Application Dark Bronze Anodized with Soft Brush Gold Anodized with Nylon Brush Door Bottom Sweep Door Gasket Gold Anodized with Soft Brush Satin Nickle Anodized with Nylon Brush Door Bottom Sweep Satin Nickel Anodized with Soft Brush

Door Gasket and Sweep, Aluminum with .375" Angled Brush

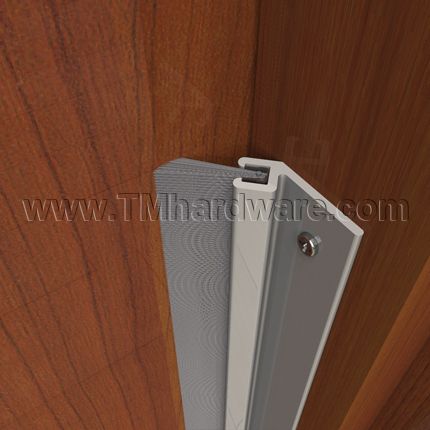

This Door Gasket and Sweep is supplied with an 45º angled flange which provides the best contact between the seal and the floor surface or door jamb. It can seal up to .25” gaps and greatly reduce infiltration of light, air, wind, rain, and snow; prevents heat loss; and controls the penetration of smoke and fumes. Available in four aluminum finishes, with two brush insert options, and is custom cut to size.


Price: $3.24

MPN 45041NB, 45041SB
Options Nylon Brush or Soft Brush Insert
Avail. Finishes Clear Anodized, Dark Bronze Anodized, Gold Anodized, Satin Nickel Anodized Aluminum
Shipping 3-8 Business Days

This multi-purpose fire and smoke rated door sweep can be applied to both wood and metal doors. It can be used on overhead garage doors, sectional, sliding and automatic doors. Available in four aluminum finishes, with two brush insert options, and lenght is custom cut to size.

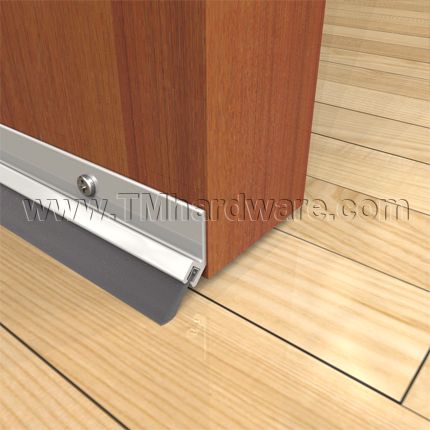

The door sweep is supplied with a 45º angled flange which provides ideal contact between the seal and the floor surface beneath it. It is fitted with a row of .375" high quality bristles which can seal up to .25” gaps. They conform well to the contours of many sealing surfaces, which provides a superior seal with extremely low closing force. The brush insert remains flexible in weathers down to -40ºF and over 400ºF. The casing is punched with elongated slots which allow for easy adjustment once installed.

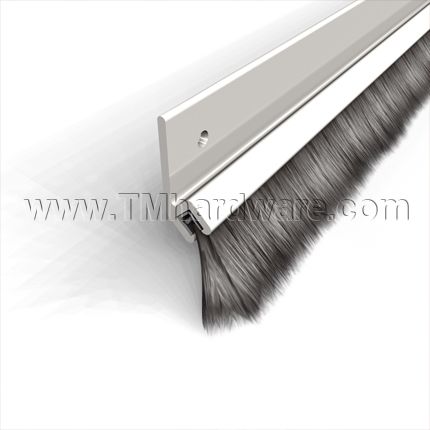

Nylon Brush consits of densely compressed nylon bristles for a superior seal. Soft Brush is made of very flexible, soft fibers, made for applications above delicate surfaces.

  • Fire and smoke rated
  • Nylon or soft brush option
  • .375" angled brush, seals up to .25”
  • 45º  Angled aluminum anodized casing
  • Door bottom sweep or door gasket application
  • Conforms well to surface irregularities
  • Remains flexible in extreme weather
  • Custom cut to size

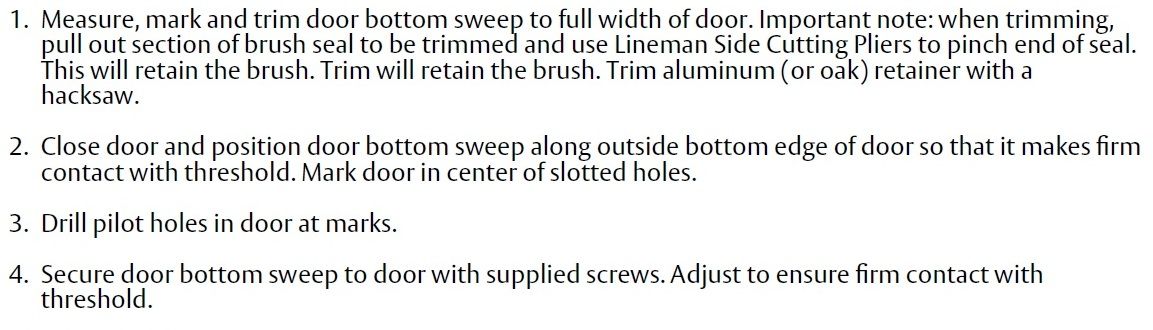

Installation instructions and screws provided. Screws are colored to blend unobtrusively with casing.

Brush Inserts: Clear Anodized is supplied with a grey insert and all other finishes is supplied with a black insert. Other combinations can be requested. Contact us or call us at 845-388-1300 to place a request.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For a larger brush size, see our .625” Angled Brush Door Bottom Sweep.

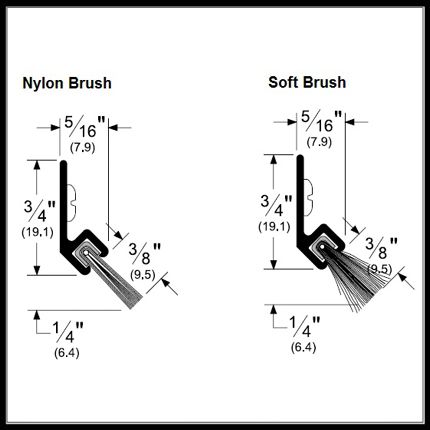

Product Specs

Click to Print Product Specs

Compliance Details

Click to View Ratings Explained

Please note, these ratings apply to nylon brush version only, and when product is used as a door gasket

Finishes Comply with the Following ANSI / BHMA Codes:

  • Clear Anodized Aluminum - US28 / 628
  • Dark Bronze Anodized Aluminum - US10B / 710
  • Gold Anodized Aluminum - US4 / 688
  • Satin Nickel Anodized Aluminum - US15 / 619
