Zero #55FS-555FS Meeting Stile, Aluminum Casing with Adjustable Silicone and INTUMET Interior
This Zero #55FS-555FS specialty aluminum and silicone, surface mounted, meeting stile utilizes Intumet™ intumescent material which expands when heated to prevent the spreading of fire and effectively seals the gap between a pair of doors from the infiltration of fire, smoke, sound, light, drafts and insects. Available in various finishes and is custom cut to size.
See full product details and specs in the tabs below.
SOLD BY THE FOOT
How to order: This product can be ordered as a full set or as individual parts. Select which parts you would like to order from the 'Options' drop-down menu below.
This meeting stile has a strong, 1” wide, and .561 “ deep, aluminum casing into which is inserted a high quality, self-extinguishing, silicone seal with lip-shaped design. This silicone seal projects out and compresses against a complementary solid silicone insert and serves as an astragal between double active doors.

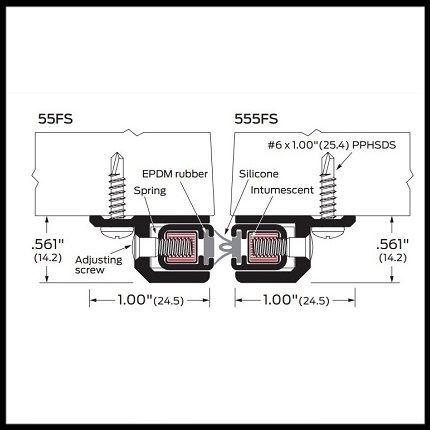

This specialty meeting stile utilizes Intumet™ intumescent material which expands when heated to prevent the spreading of fire. An adjusting screw and stainless steel spring (see product specs) permits the seal to be adapted to effectively close clearance gaps of varying sizes resulting from natural warping or inevitable shifting of the doors. These distinctive features assure fire and smoke protection, prevent sound from leaking in or out of a room, provide a weather seal, ensure privacy, as well as minimize the passage of light between the doors.
Its surface mounted application makes for a no-hassle installation. The screw is easily adjustable with a screwdriver. Installation screws provided, screws are colored to blend unobtrusively into casing.
Door Gasket is fitted with FS3003 INTUMET™ material. For more information, see Understanding Intumescent Fire Stop Material.
How to order: This product can be ordered as a full set or as individual parts. Select which parts you would like to order from the 'Options' drop-down box above.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship. Click here to view our full Warranty Policy.
Check out our other Zero International #55-555 Surface Mounted Aluminum and Silicone Meeting Stile.
-
QuickShipNo
-
ManufacturerZero International
-
MPN55FS-555FS
-
OptionsFull Set, Stile with Double-Lip Seal Only, Stile with Solid Insert Only
- About This Product
-
Retainer MaterialAluminum
-
Seal TypeSilicone
-
Door TypeDouble Active Doors
-
MountingSurface Mounted
-
- Dimensions
-
Total Height1"
-
Width.561"
-
- Installation
-
Installation Screws#6 x 1.00" (25.4) PPHSDS Provided
-
- Finishes
-

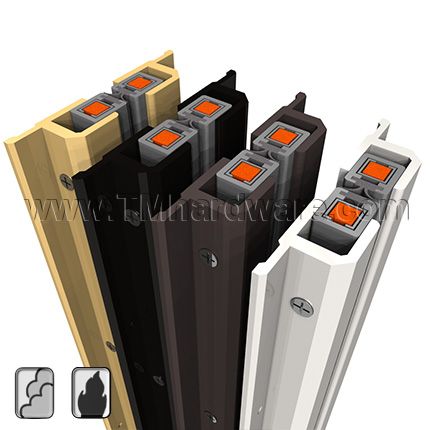

FinishBlack Anodized Aluminum (315), Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum
-
- Compliance Details
-

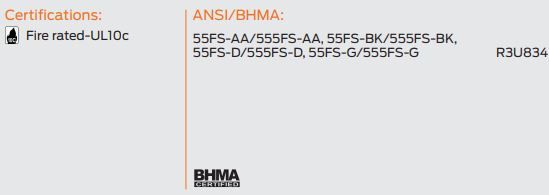

Compliance DetailsFire Rated
-
ANSI DesignationR3U834
-
Warranty1 Year Limited Warranty
-
Click to view more information on this product's UL Fire Rating
