Metal Weatherstrip, Interlocking, for Wooden Jambs, Sill, Head, Single Flange

This product has been discontinued.

A similar item #P41M and #P43 is available through our office. Please call for details and pricing.

See tabs below for additional information
    • SKU
      ZR12Z
    Call for price!
    845-388-1300

    This product has been discontinued.

    A similar item #P41M and #P43 is available through our office. Please call for details and pricing.

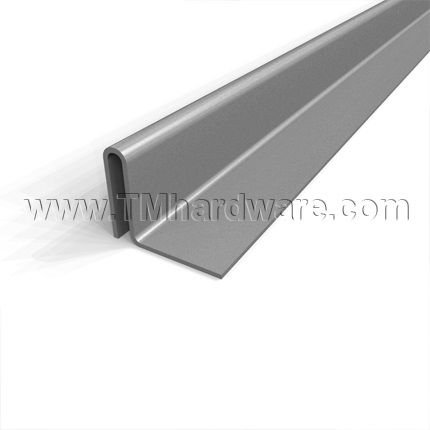

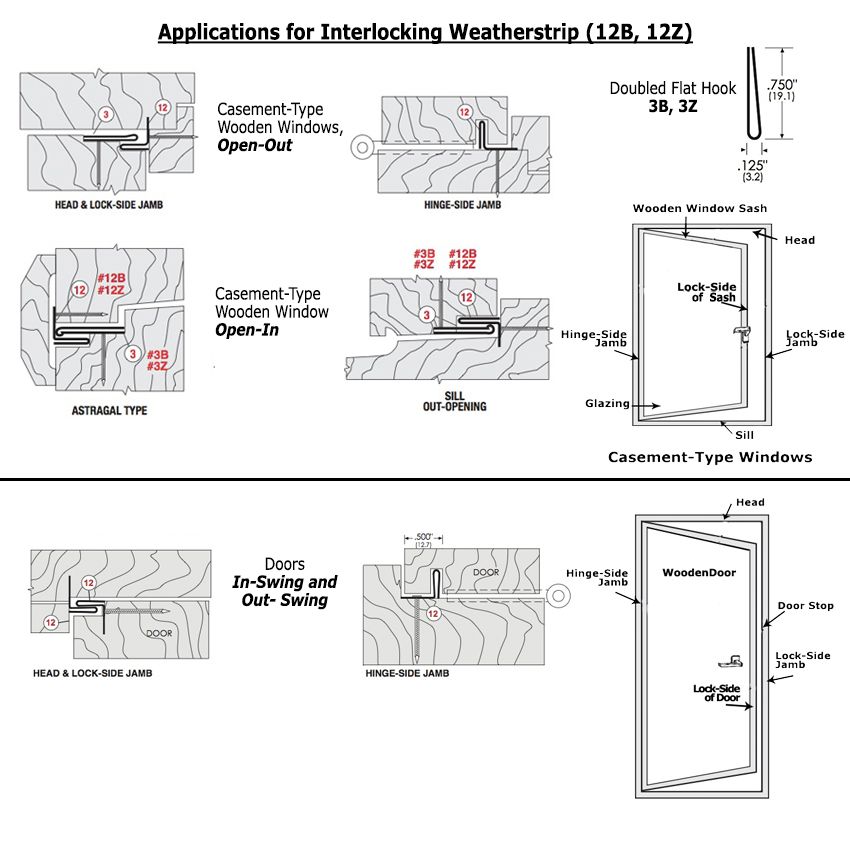

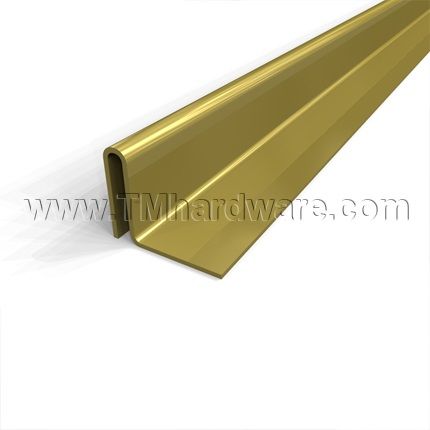

    This interlocking metal weatherstrip is compatible with wooden door frames and wooden casement windows. When installed along the jambs, sill, head, or astragal, the protruding design corresponds with either a cut out in the door window frame or with a corresponding metal weatherstrip (see applications tab) which interlocks to create a barrier, preventing draft infiltration and rattling due to faulty installation.

    The weatherstrip has a total width of .500” and the raised portion has a height of .45" (see product specs). It can be installed in one of two ways; to interlock with a corresponding cut-out in the window sash or door, or to interlock with a corresponding product, such as an additional length of this same product or a Doubled Flat Hook. It is easily applied with wood nails.

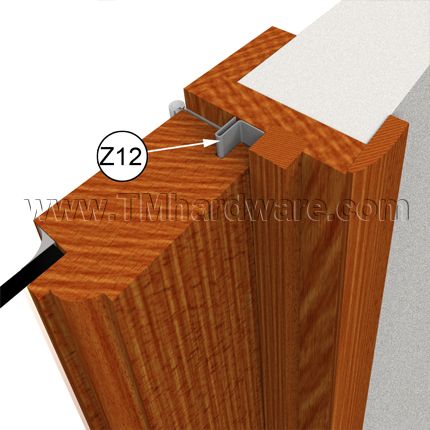

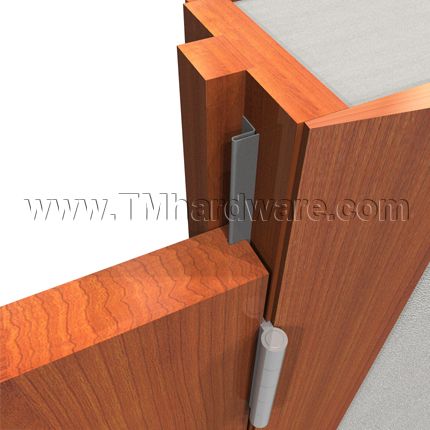

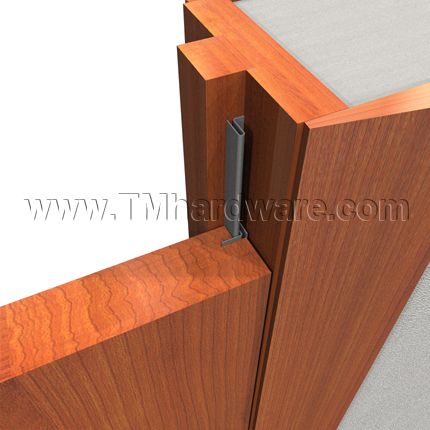

    Cut-Out Installation (see applications tab and Detailed images for visual aid): For sealing hinge-side jambs of the window or door, utilize a cut-out application, which requires a groove in the wooden sash or door measuring .125" (W) x .45" (H)- see product specs. To install, create the corresponding groove in the sash or door using a circular saw. Nail the metal weatherstrip in place after testing that the window/door interlocks and swings smoothly.

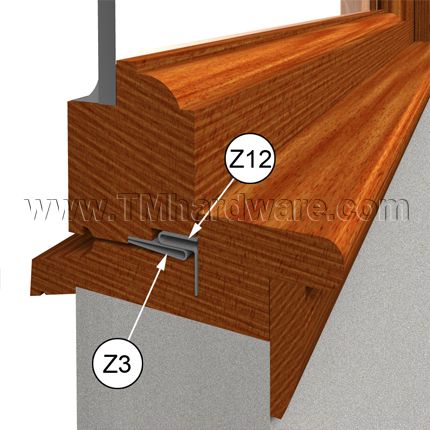

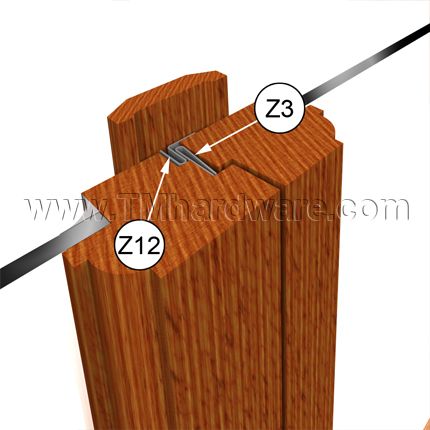

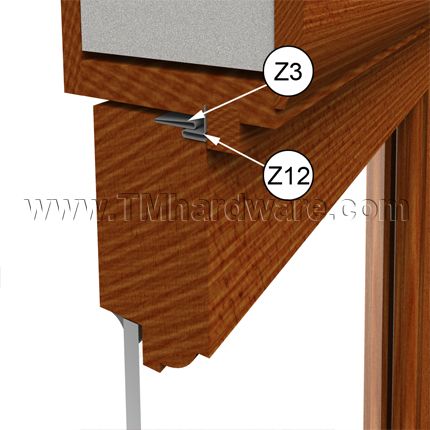

    Interlocking Metal Hooks Installation (see applications tab and Detailed images for visual aid): To seal the head and lock-side jambs, sill, head, or astragal of wooden windows, you will need a corresponding doubled flat hook. The option to purchase the Full Hook Set (Z12, Z3) which includes a corresponding doubled flat hook, is available in the 'Options' drop-down box above. Partially install this strip to the proper place along the jambs, sill, head, or astragal. Then partially install the corresponding Doubled Flat Hook in the corresponding place along the window sashes so that when the window/door is closed, the two parts interlock and seal the space. When all parts interlock smoothly, apply remainder of nails.

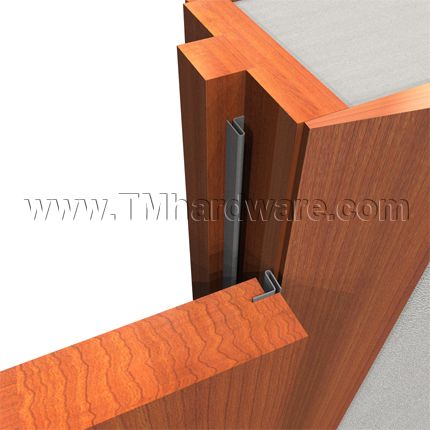

    To seal the head and lock-side jambs of a wooden door frame, this product can interlock with itself, so order enough to run along the head and lock side of both frame and door.

    SOLD AS PRE-CUT STRIPS IN THE FOLLOWING LENGTHS: 48”, 60”, 72”,84”, 96”.

    How to order: This product can be ordered alone (Z12) or as a complete set (Z12, Z3). Choose which components you would like to order from the 'Optons' drop-down box below. As this product is sold in pre-cut strips, round up to the nearest of these length options and choose that amount from the 'Length' drop-down box below. To order multiple strips in that length, indicate amount in the ‘quantity’ drop-down box. Strips can be easily cut with shears.

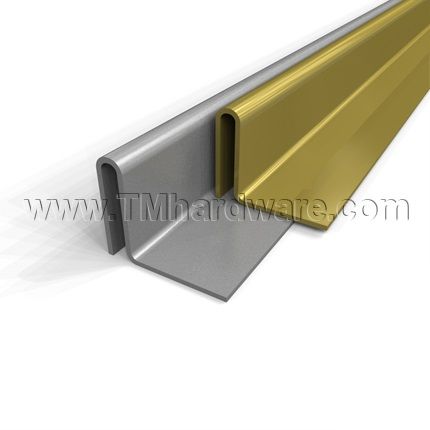

    A note on metal options: Available in Zinc and Bronze Mill Finish. Zinc is a silvery, white metal with a long lasting, maintenance free life. It does not rust easily, making it an ideal option for external windows. Bronze Mill Finish is a solid bronze piece, which increases longevity and aesthetics, thus the large increase in price. It resists corrosion and does not rust. For more information see Understanding Metals and Finishes.

    • Metal Interlocking and Latching Weatherstrip, for Wood Doors and Windows
    • Compatible with both wooden in-swing and out-swing door frames
    • Compatible with both open- in and open-out casement windows
    • Requires cutout of .125" x .45" in frame or, alternatively, a corresponding metal doubled flat hook
    • Option to purchase full set which includes Doubled Flat Hook
    • Available in Bronze and Zinc
    • Will not rust

    Fasteners: Can be applied with 7/8" Wire Nails, not included. Select link to purchase separately.

    Please note, images are for illustrative purposes only. They are not actual photos.Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Please allow 7-14 business days for this product to ship.

    This product has a 3-year guarantee against defects in material and workmanship.

    Check out our other metal weatherstripping products for wooden doors and windows, such as the Adhesive Metal Cushion Weatherstrip, in Bronze or Stainless Steel
