Zero #4, 400, 4000 Metal Weatherstrip, Wooden Windows, for Upper Sash Jambs
These Zero #4_400_4000 metal weatherstrips are compatible with double-hung wooden windows. When installed along the jambs of the upper sash, the protruding design corresponds with a cutout in the window frame and interlocks to create a barrier, which prevents draft infiltration and rattling due to faulty installation. Available in three designs (see product specs), and comes in a choice of either Zinc or Bronze Mill Finish.
SOLD IN STRIPS OF 4,5,6,7,8 FEET
This product is part of our series of metal weatherstripping for double-hung wooden windows. For a complete window weatherproofing job, please see our corresponding products detailed below.
How to order: To calculate amount needed to weatherstrip both upper sash jambs, measure upper sash height and multiply by two. As this product is sold in pre-cut strips of 4,5,6,7,8 feet, round up to the nearest of these length options and choose that amount from the 'Length' drop-down box below. To order multiple strips in that length, indicate amount in the ‘quantity’ drop-down box. Strips can be easily cut with shears.

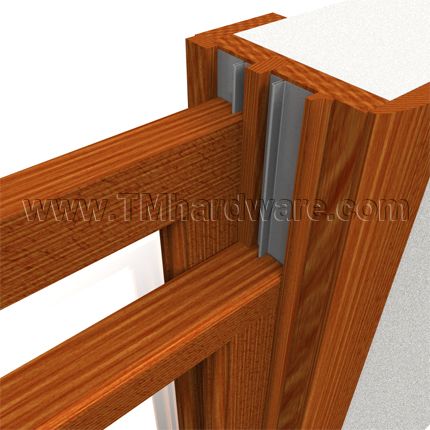

This interlocking metal weatherstrip is compatible with double-hung wooden window frames. When installed, the protruding design corresponds with a cut out in the door / window frame and interlocks to create a barrier which prevents draft infiltration and rattling due to faulty installation.

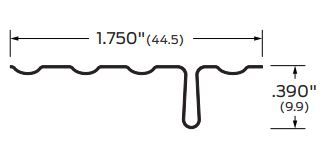

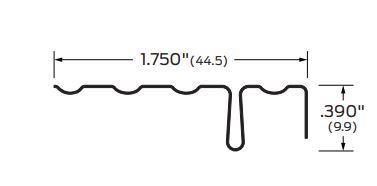

The weatherstrip has a total width of approx. 1.750" and the raised portion has a height of .390". It requires a cut out of .125" (W) x .45" (H)- see product specs. It is easily applied with wood screws. Sold in pre-cut lengths of 4,5,6,7,8 feet.Â

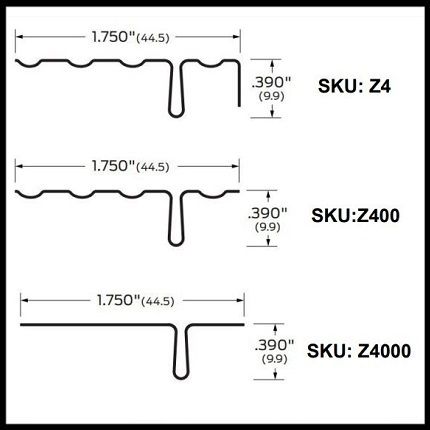

This upper jamb metal weatherstrip comes in three designs, with a return flange, ridged, and smooth (see product specs and applications tab). A return flange allows for smooth sliding of the window as well aids in closing a slightly larger gap around the window frame . A ridged design aids in larger gap closure between the frame and jambs. The smooth design is the thinnest, requiring the least clearance between the frame and jambs.

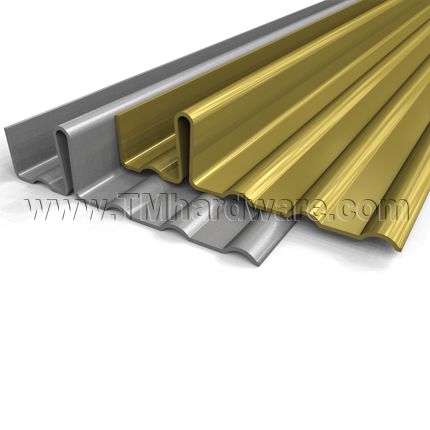

Product Z4: Has a return flange and is ridged

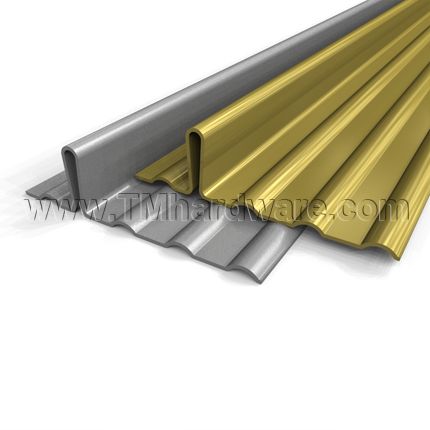

Product Z400: Ridged only

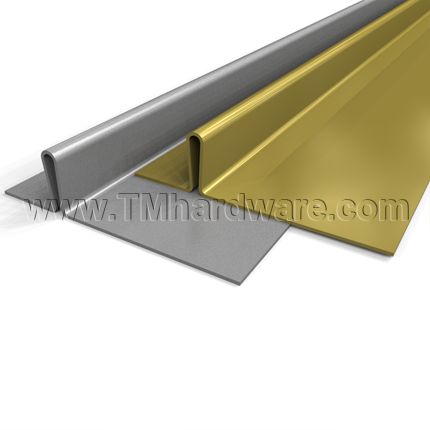

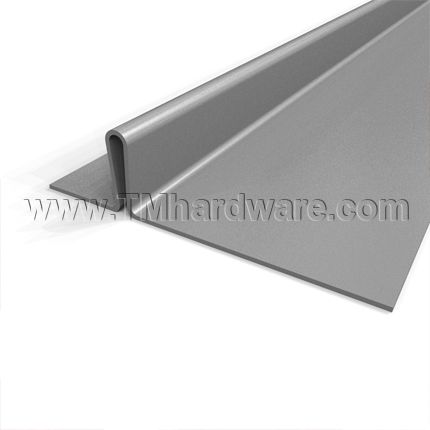

Product Z4000: Smooth
To install, either remove or lower the upper sash window and measure and trim metal weatherstrip to jamb height. To create the corresponding groove in the window frame, use a circular saw to make a cutout measuring .125" (W) x .45" (H) along the window frame. Nail the metal weatherstrip in place after testing that the window interlocks and slides smoothly.
Corresponding Products for Double-Hung Wooden Windows
Metal Weatherstrip, Wooden Windows, for Lower Sash Jambs (Z5_500_5000)
Metal Weatherstrip, Wooden Doors and Windows, Interlocking Hooks (Z2_3)
Metal Weatherstrip, Interlocking for Wooden Doors and Windows (Z1)
Sash Pulley, for Wooden Windows, 120 lbs. and 250 lbs. (Z245)
Pulley Chain for Wooden Windows, 100 lbs. and 500 lbs. Ratings (Z635_645)
A note on metal options: Available in Zinc and Bronze Mill Finish. Zinc is a silvery, white metal with a long lasting, maintenance free life. It does not rust easily, making it an ideal option for external windows. Bronze Mill Finish is a solid bronze piece, which increases longevity and aesthetics, thus the large increase in price. It resists corrosion and does not rust. For more information see Understanding Metals and Finishes.
How to order: To calculate amount needed to weatherstrip both upper sash jambs, measure upper sash height and multiply by two. As this product is sold in pre-cut strips of 4,5,6,7,8 feet, round up to the nearest of these length options and choose that amount from the 'Length' drop-down box above. To order multiple strips in that length, indicate amount in the ‘quantity’ drop-down box. Strips can be easily cut with shears.
- Metal Weatherstrip, upper sash jambs
- Compatible with double-hung wooden windows
- Requires cutout of .125" x .45" in frame
- Available in Bronze and Zinc
- Will not rust
This product can be combined with other parts to comply with NYC Board of Education 8F-04 Standards. Please contact or call us at 845-388-1300 for list of products and details.
Fasteners:Â Can be applied with 7/8" Wire Nails, not included. Select link to purchase separately.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1-year guarantee against defects in material and workmanship.
-
QuickShipNo
-
ManufacturerZero International
-
MPN4, 400, 4000
-
MaterialZinc, Bronze Mill Finish
-
DesignZ4- Ridged and Return Flange, Z400- Ridged Only, Z4000- Smooth
