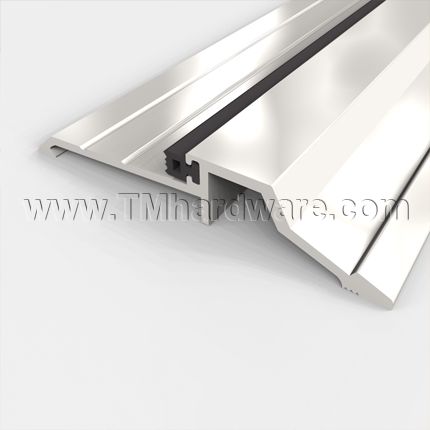

Pemko #277 Rabbeted Threshold, 5" Aluminum with Sponge Rubber Seal, .875" H

This rabbeted threshold adds a seal at the bottom of doors to provide additional insulation and sound protection. It is made of high quality material that will ensure long-lasting usage. It has a 5" width and a height clearance of .5" under the door. Available with sponge EPDM or sponge silicone insert, various aluminum finishes and is custom cut to size.

PRICED PER FOOT.

See tabs below for additional information
    • SKU
      PK277AR
    • Market price:$45.84
      • save 15%
    • Starting price: Price: $38.96 per foot

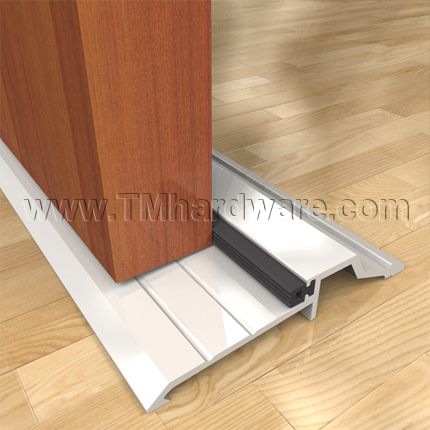

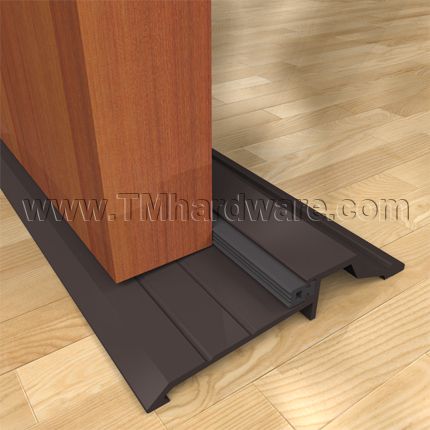

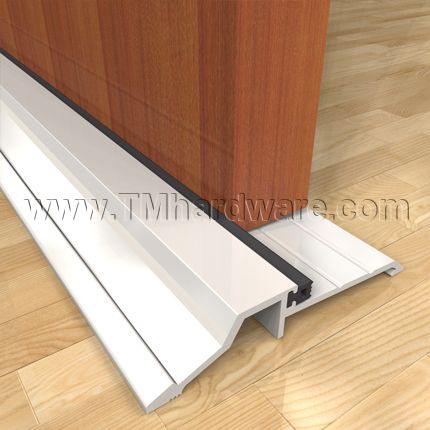

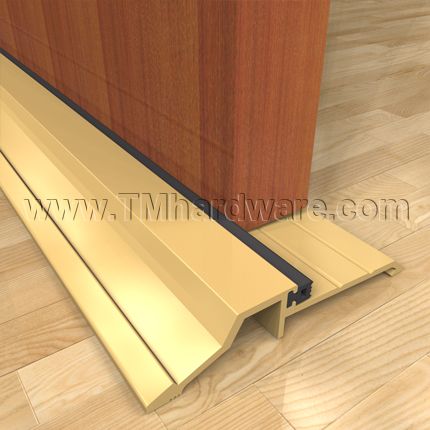

    This rabbeted threshold creates a seal at the bottom of doors to provide additional gap insulation and sound protection. Available with a choice of rubber inserts, various aluminum finishes and is custom cut to size.

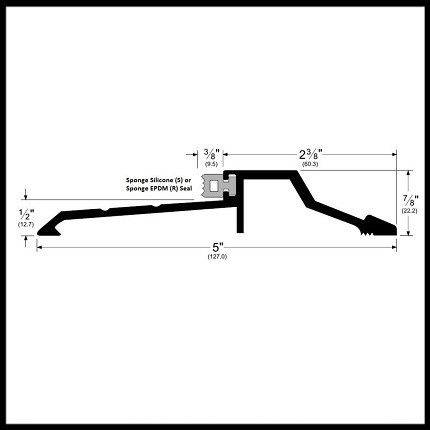

    Saddle: Threshold is made of fire rated metal that is built to withstand heavy weights and will not buckle and bend under pressure. The threshold has a 5" width and has a height clearance of .5" on the interior side of the threshold. Height clearance on the exterior side is 7/8". This threshold requires a door clearance of .625".

    Seal: It can be purchased with either a  sponge EPDM or silicone EPDM insert. Insert compresses against the closed door to form a tight seal that prevents penetration of sound, air, dust, moisture, and insects through the gap under doors.

    Sponge EPDM is comparable to Sponge Neoprene, but is more ecofriendly and delivers overall better performance. Specifically, it has great sound control properties and is resistant to solvents. Sponge Silicone is very resistant in harsh environments.

    Insert Replacement: This seal is designed to last through much usage. However, if necessary, a replacement seal can be purchased - Sponge Rubber Replacement for Pemko #277

    For a superior seal, this product is compatible with many of our Surface Mounted Automatic Door Bottoms, review specific product specs to ensure compatibility. Installation guide and screws provided. Screws are colored to coordinate with the saddle.

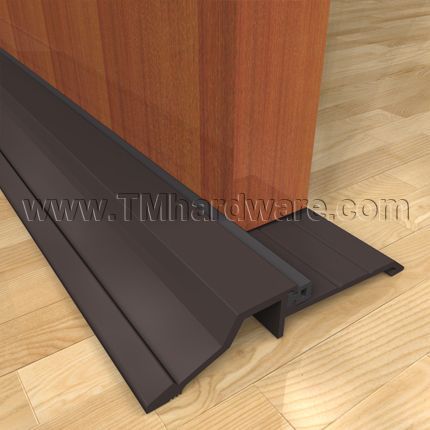

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Product has a 5 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    To view a threshold with lower clearance, visit our Rabbeted Threshold with Q-Lon Seal, 1/4' Height

      • SKU
        PK277AR
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      277R, 277S
    • Dimensions
      • Overall Height
        .875" Height
      • Interior Height
        .5" Height
      • Overall Width
        5" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .625" Height
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Latching Panic Exit Threshold
      • Seal Type
        Sponge Neoprene Seal, Sponge Silicone Seal
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided

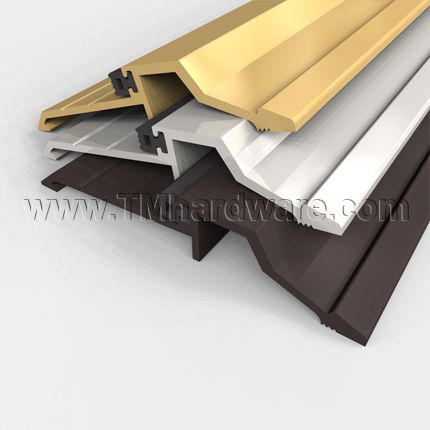

    • Finishes
      • Finish

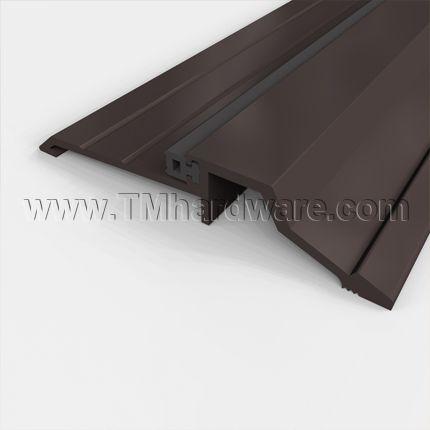

        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        Sound Rated, Air Infiltration Rated, BHMA Certified, Fire Rated
      • Warranty
        5 Year Limited Warranty

    Click to Print

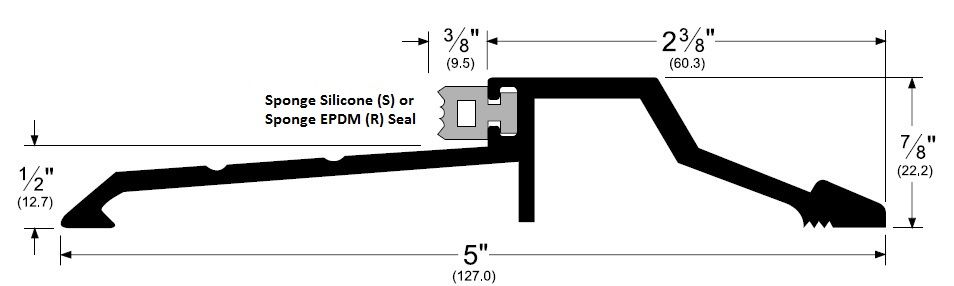

    P277 Product Specs:

    Threshold requires a 5/8" Door Clearance.

    Click to Print



    P277 Installation Guide:
