Sash Pulley for Double-Hung Wooden Windows
Compatible with Copper Dip Chain

Sash Pulley for Double-Hung Wooden Windows

0.0

Sash Pulleys are commonly used with double-hung wooden windows to permit the smooth raising and lowering of the upper and lower sashes. Proper closure of the window creates a barrier that prevents the infiltration of sound, drafts, insects, and moisture. Available in two strength options; 120 lb. sash weight and 250 lb. sash weight.

This product is part of our series of metal weatherstripping for double-hung wooden windows. For a complete window weatherproofing job, please see our corresponding products detailed below.

Price: $72.65

SKUZ245
MPN 245, 245BB
Options Standard Sash Pulley, Ball-Bearing Sash Pulley
Avail. Finishes Satin Brass Finish, Polished and Laquered Finish

Sash Pulleys are commonly used with double-hung wooden windows to permit the smooth raising and lowering of the upper and lower sashes. Proper closure of the window creates a barrier that prevents the infiltration of sound, drafts, insects, and moisture.

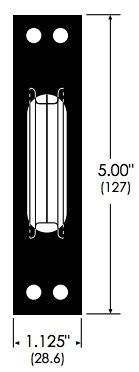

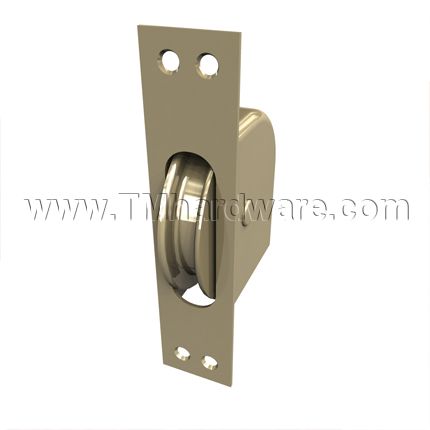

The faceplate measures 5.00” tall and 1.125” wide, with the pulley wheel in the center (see product specs). Available in two strength options. The standard option has a 120 lb. sash lift rating, and is a solid brass piece with a Satin Brass Finish. The other option is a Ball-Bearing pulley which has a 250 lb. sash lift rating, is also a solid brass piece, but has a polished and lacquered finish. Ball-bearing pulley systems reduce rotational friction and permit smoother movement of window sash than other non-ball-bearing pulley wheels.

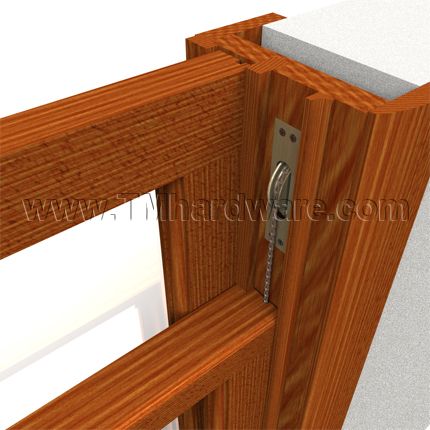

To install, position the brass faceplate to the correct spot on the window’s upper jamb and nail in place. If needed, connect pulley chord or chain to the groove in the window frame and string the other end of the chord or chain through the pulley wheel and tie to a balancing system of your choice.

  • Sash Pulley for double-hung wooden windows
  • 5.00” X 1.125”
  • Solid brass
  • Available in two lift strength options- 120 lb. (Satin Brass Finish) and 250 lb. (Polished and Lacquered Finish)
  • Ball-Bearing Pulley Wheel with 250 lb. lift strength option

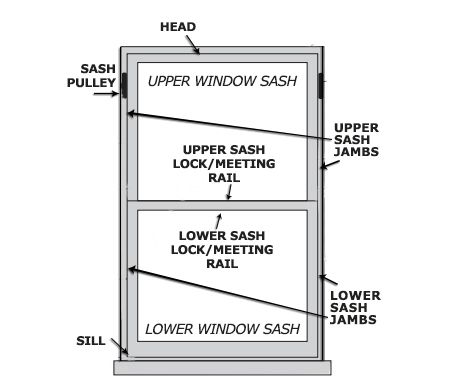

This product is part of our series of metal weatherstripping for double-hung wooden windows that can be combined to comply with NYC Board of Education 8F-04 Standards. For a complete window weatherproofing job, please see our corresponding products:

Metal Weatherstrip, Wooden Windows, for Upper Sash Jambs (Z4_400_4000)
Metal Weatherstrip, Wooden Windows, for Lower Sash Jambs (Z5_500_5000)
Metal Weatherstrip, Wooden Doors and Windows, Interlocking Hooks (Z2_3)
Metal Weatherstrip, Interlocking, for Wooden Doors and Window (Z1)
Pulley Chain for Wooden Windows, 100 lb. and 500 lb. Ratings (Z635, Z645)

Installation screws provided.

Please note, images are for illustrative purposes only. They arenot actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

Please allow 7-14 business days for this product to ship.

This product has a 3-year guarantee against defects in material and workmanship.
