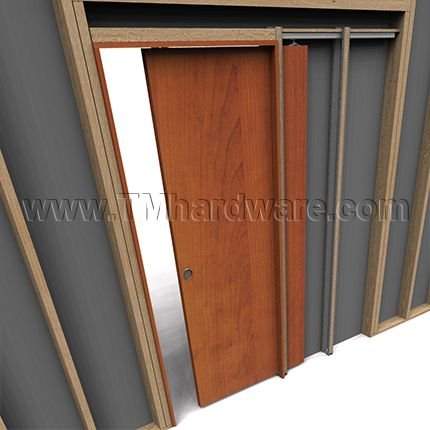

Hager 9631 Sliding Door Series, Pocket Door Applications, Heavy Duty, For Doors 6'8" High and up to 125 Lbs.
Hager 9631 Heavy Duty Pocket Door Sets include all the parts necessary to install a sliding pocket door 1 3/8"-1 3/4" thick. 9631 Sliding Door Sets are available for doors 3' Width x 6'8" Height and up to 125 Lbs.
PRICED PER SET - See full product details and specs in the tabs below.
Click here to view Hager 9631 Series from Full Hager Catalogue.

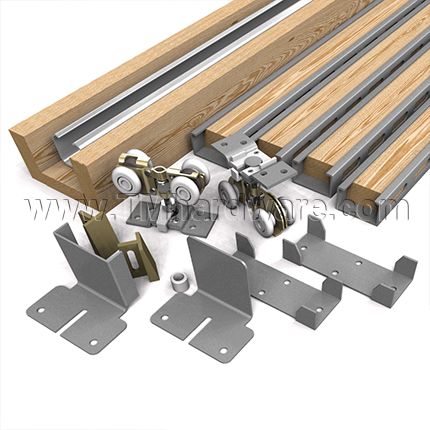

Included parts for 9631 Pocket Door Sets: Components can be ordered separately, see links below:
- (1 ea.) Header and Track (9601) Assembly
- (1 ea.) End Bracket Flanged
- (1 ea.) End Bracket Plain
- (2 ea.) Floor Plate
- (4 ea.) Split Stud
- (2 ea.) Carrier (9606)
- (2 ea.) Quick Release Plate (9610)

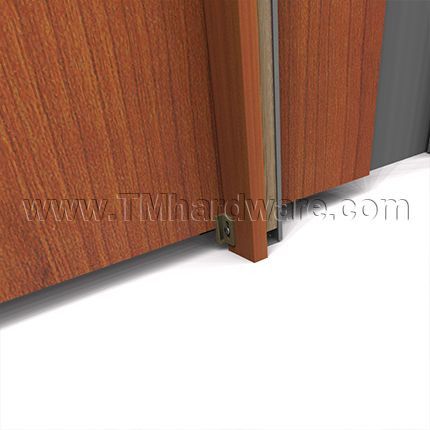

- (1 ea.) Door Guide Set (9883)
- (1 ea.) Bumper Kit (9881)
- (1 ea.) #8 x 3/4" Phillips Pan Head Screws
- (8 ea.) #8 x 1 1/2" Phillips Pan Head Screws
- For bi-parting doors, order 2 9631 Pocket Door Sets with one Hager 9639 Double Pocket Door Kit (sold separately.)
Door Thickness: For doors 1 3/8" - 1 3/4" thick. 9634 adapter included for use with doors 1 3/4" thick.
Materials: Aluminum Box Track with jump proof twin channel design. Steel Ball Bearing Hangers with pre-lubricated Celcon wheels.
Hanger Dimensions: 4 wheel hanger with 7/8" diameter wheels.
Door Height: For doors 6'8" High. For additional door heights, see our 9628, 9629 and 9630 Pocket Door Sets.
Installation: Pre-assembled header assembly for ease of installation and removal. Track header unit attaches to rough framing at both ends. Split studs can be nailed or screwed to track header. See Installation Tab below for complete installation instructions.
Additional Customization Options: These products can be ordered as full Pocket Door Kits or as individual components. To order please contact us or call our office at 845-388-1300.
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
-
QuickShipNo
-
ManufacturerHager Companies
-
MPN9631
-
Door Thickness1 3/8" (Standard), 1 3/4" (9634 Adapter)
- About This Product
-
Mounting TypeOverhead Mount
-
Door MountSurface Mount
-
Track TypeBox Track
-
System TypePocket Door Kit
-
Included PartsHeader and Track Assembly – 9601 (1 ea.)
End Bracket Flanged (1 ea.)
End Bracket Plain (1 ea.)
Floor Plate (2 ea.)
Split Stud (4 ea.)
Carrier – 9606 (2 ea.)
Quick Release Plate – 9610 (2 ea.)
Door Guide Set – 9883 (1 ea.)
Bumper Kit – 9881 (1 ea.)
#8 x ¾” Phillips Pan Head Screws (1 ea.)
#8 x 1-1/2” Phillips Pan Head Screws (8 ea.) -
MaterialAluminum
-
- Dimensions
-
Door Panel WeightUp to 125 lbs
-
Door Width36" Wide Door
-
Door Thickness1 3/8" to 1 3/4" Thick
-
Door Height80" Height
-
Height ClearanceRough Opening Height from the finished floor to the top of the door frame should be 84 1/2"
-
Width ClearanceTwo times door width plus 1"
-
- Compliance Details
-
Compliance DetailsANSI/BHMA A156.14, Grade 1 certified, ADA Compliant
-
ANSI DesignationD8671, D8701
-
Warranty1 Year Limited Warranty
-
