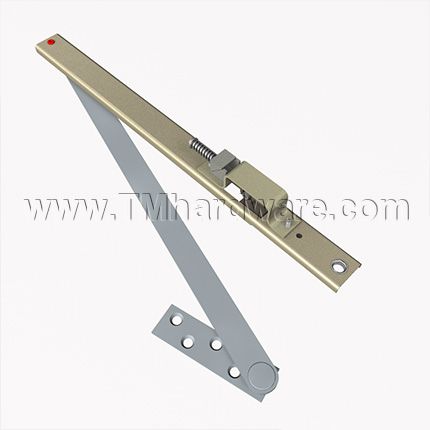

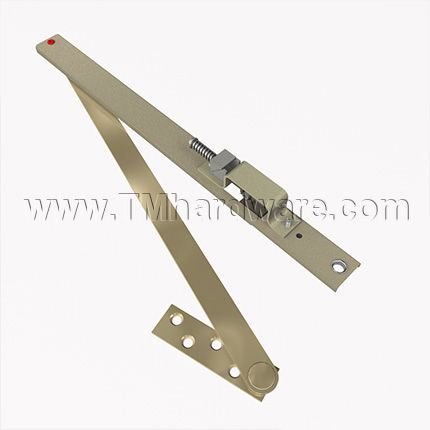

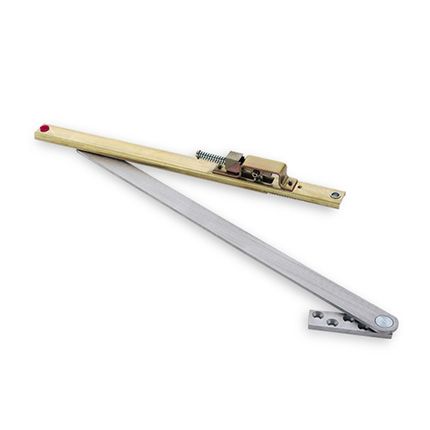

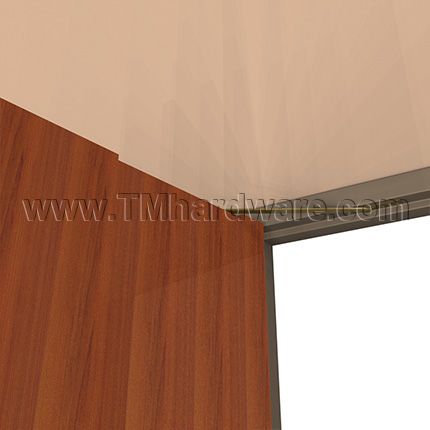

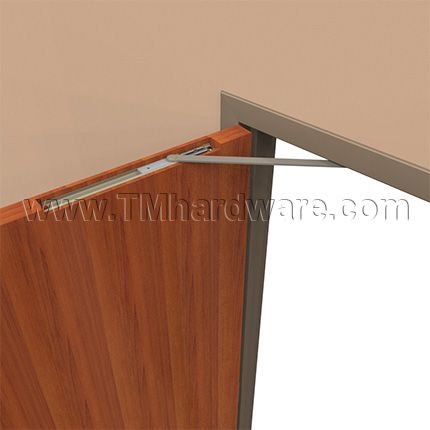

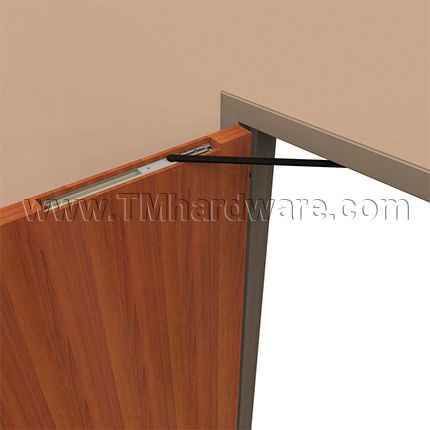

Glynn Johnson 100 Series Overhead Door Holder and Stop, Concealed

Name: Glynn Johnson 100 Series Overhead Door Holder and Stop, Concealed
Brand: Glynn Johnson
SKU: GJ106F_SPBLK
Price: 425.70 USD
Availability: InStock

Glynn Johnson 100 Series Door Holders and Stops provide the most reliable and versatile concealed overhead door control for heavy-duty applications. The 100 Series holders provide the most effective control for entrance, vestibule doors as well as heavy or often used interior doors.

Available with an option of hold-open, friction hold-open, internal hold-open and stop only functions and a wide array of finishes.

PRICED PER PIECE

See tabs below for additional information

Size
Finish
Function

Quantity

Add to compare

Materials and Finishes: In heavy gauge brass or 300 Stainless Steel these models offer the broadest range of finishes in the industry complementing any design and offering the highest resistance to corrosion. Available in the following finishes: US3, US4, US10, US10B, US32, US32D, SP4, SP10, SP28, SP313, SPBLK

Applications: Designed for installation on all types of doors mounted on conventional type butt hinges, pivots, continuous hinges, swing clear hinges and numerous other specialty hinges. When used in conjunction with many surface-applied door closers, they provide the most effective control for entrance doors and vestibule doors of all type, including heavy or high abuse interior doors.

Function: Features the most reliable hold-open mechanism available. Provided with a control knob which protrudes from the face of the door and turns the hold-open function on or off. Tension easily adjusted using an allen wrench to offset air currents or other exterior conditions. Hold-Open function provides a convenient method of holding the door open at a predetermined location for short or long periods of time, permitting an unobstructed traffic flow through the opening.

Stop-Only model: Provides a reliable method of door control when the hold-open function is not a requirement. Provides shock-absorbing capability and may be used on fire doors.

Friction Hold-Open model: Can be adjusted on the top of the slider in the channel using an Allen and open end wrench. Ideal for heavy patient room doors, wardrobe, closet doors or similar applications where multiple Hold-Open positions are desired.

Internal Hold-Open model: Provides a hold-open unit with the hold-open mechanism built into the channel, thus reducing the door prep. The 100HP have a preset hold-open force that is not adjustable. The hold-open feature is not selectable in these units, so the doors are always held open.

Classification: Stop only models are UL listed as miscellaneous fire door accessories. May be used on hollow metal fire doors or wood fire doors of any rating without adversely affecting the fire rating on the fire door and/or fire door frame. Where wood door manufacturer's listing allows for the cutout required for installation, concealed overhead stops may be used on those wood fire doors.

Installation: Product is provided with templates to allow for variable mounting positions, ranging from 85 degrees to 110 degrees hold-open/stop angle. Templates are designed for installation in almost all types of doors. See Installation Tab for complete installation instructions.

Additional Options: Including adjustable jamb brackets, jamb brackets for use with LCN 5030 closer, Pin-in socket security screw and special stop only models can be ordered. Please contact us or call our office at 845-388-1300.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

This product has a 1 year guarantee against defects in workmanship and materials.

Click here to view our Full Warranty Policy.

For additional options see our Glynn Johnson 410 Series Overhead Door Holders and Stops.

- SKU
  GJ101H_US3
Material
Brass, Stainless Steel
Strength
Heavy Duty
Size
1 (18" - 23"), 2 (23 1/16" - 27"), 3 (27 1/16" - 33"), 4 (33 1/16" - 39"), 5 (39 1/16" - 45"), 6 (45 1/16" - 54")
Function
Hold-Open, Stop- Only, Internal Hold- Open, Friction Hold- Open
Mounting
Concealed Mount
QuickShip
No
Manufacturer
Glynn Johnson
MPN
G100
Finishes
- Finish
  Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Polished Stainless Steel (US32), Satin Stainless Steel (US32D), Powder Coat Brass (SP4), Powder Coat Bronze (SP10), Powder Coat Aluminum (SP28), Powder Coat Dark Bronze (SP313), Powder Coat Black (SPBLK)
Compliance Details
- Compliance Details
  BHMA Certified
- ANSI Designation
  C01511, C01541, C01531
- Warranty
  1 Year Limited Warranty

Printable Documents:

Click to print Glynn Johnson 100 Series Concealed Mounted Overhead Door Holder Product Specs.

Sample Applications:

Glynn Johnson 100 Series Sample Applications

Sizing Options:

Certifications:

Printable Documents:

Click to print Glynn Johnson 100 Series Overhead Door Holder Installation Instructions.

Notes:

A. Hollow metal frames should be properly reinforced with a 3/16" (5) minimum thickness by 12" (305) minimum length plate.
B. Hollow metal doors should be properly reinforced with a 3/16" (5) minimum thickness plate.
C. Stop only units are permitted on many fire door applications. However, mechanical hold-open devices that require manual release are not permitted for use on any fire door as outlined on NFPA80 or NFPA101. Contact Glynn-Johnson or your local representative for assistance.
D. Dead stop (DS) templating may be used on hold open, friction and stop only models but should not be used on "SE" models. The DS position is reached when the shock spring is fully compressed. When DS templating is used, the initial degree of stop will be 5"-7" less than the DS opening. For use on doors opening back to back, against a wall or obstruction.

Adjustments:

hold-open tension adjustment (Hold-Open unit only) - Using a 1/8" ball end Allen wrench, turn screw shown in bottom of channel clockwise to increase hold-open tension and counterclockwise to decrease hold-open tension.

Friction tension adjustment (Friction unit only)-

Using a 1/8" Allen wrench, hold screw shown in place while using a 7/16" wrench to turn jamb nut counterclockwise until loose. Turn screw clockwise to increase friction tension and turn counterclockwise to decrease the friction tension. While holding the screw in place, turn the jamb nut clockwise until tight.

Dimensions in () are in millimeters.

Installation:

Overhead holders or stops must be installed before closers.

1. A. Determine the mounting being used from illustration below.
B. Select mounting group number the chart below. Most continuous hinges are grouped with 4 1/2" wide butt or 4 1/2" swing clear hinge.
C. Using the mounting group number and the overhead holder or stop size and the degree of opening desired. Find "A", "B", "C", "D" And "E" Dimensions from chart on page 3 of attachment. For dead stop add 9/16" (14) to the "A" dimension from the chart. See note D for information about Dead Stop.

2. A. Locate "B" dimension on the frame. Note that the "B" dimension is measured from the centerline of the hinge as shown.
B. Mortise for the jamb bracket as shown. Refer to left and right hand plan views for appropriate hole pattern.
C. For metal frames, use a #7 drill and a 1/4"-20 tap in 4 places. For wood frames, drill 3/16" pilot hole in 4 places.

Refer to illustration below and on sheet 1 for the following notes:
3. A. Locate "A" and "D" dimensions on the centerline of the door. Note that the "A" dimension is measured from the centerline of the hinge as shown.
B. Mortise for the channel as shown if required. For 100H Hold-Open version, mortise for hold-open lock mechanism and drill 5/8" (16) diameter hole for control knob as shown. (When HP Hold-Open, F friction or S Stop unit is supplied, additional mortise for hold-open mechanism and control knob are not required.)
C. Locate "C" and "E" dimensions on the top of the door. Note that the "C" dimension is measured from the centerline of the hinge as shown.
D. Mortise for arm cutout as shown.
E. For metal doors, use A F drill and 5/16"-18 tap in 2 places. For wood doors, drill 1/4" pilot holes in 2 places. Mounting holes should be prepared in the field.

4. A. Install the channel in the door with the shock spring towards the hinge edge of door.
    B. Install jamb bracket in frame.
    C. For 100H Hold-Open version only, epoxy (not provided) eyelet in 5/8" (16) hole.
    D. For 100H Hold-Open version only, place serrated knob and knob spacer over cap screw as shown in attachment. Thread Assembly through 5/8" (16) hole in door onto lock.
        Dimensions in () are in millimeters.
