Markar HG3505 Stainless Steel Security Hinge, Adjustable Hinge Guard

Markar HG3505 Stainless Steel Security Hinge, Adjustable Hinge Guard
Markar

Markar FS3505 is a Heavy-Duty Concealed Leaf Continuous Hinge which is mortised to the frame rabbet and door edge.  Features an integral hinge guard to protect door from equipment passing through. This hinge is designed for door weighing up to 900 lbs. and a maximum width of 4'0". Hinge is Satin Stainless Steel and available in standard stock sizes, see below for details.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      MRG3505_79
    • Market price:$1,616.00
      • save 25%
    • Starting price: Price: $1,212.00 per item
    Additional discounts will be applied when added to cart!

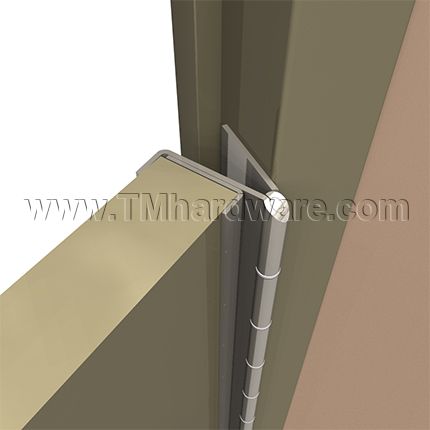

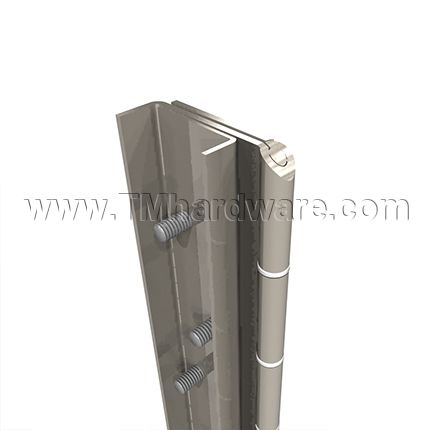

    Marker HG3505 is a Pin and Barrel Type Continuous Stainless Steel Hinge with Adjustable Hinge Guard.

    • Standard Sizes: 6'8", 7'0", 7'2", 8'0", 10'0". Custom sizing available, contact us or call at 845-388-1300 for details and pricing.

    • Applications:  Supports weights up to 900 lbs, 4'0" maximum door width. Extra heavy duty for high traffic, high abuse door applications, including correctional facilities, high security locations and extra heavy doors. Hinge guard protects the door from dings and gouges from carts and gurneys while providing clean lines and aesthetic appearance.
    • Design: Constructed from heavy-duty 12 gauge (.105") stainless steel hinge leaves, 14 gauge Stainless Steel angle on door leaf. 187" diameter stainless steel pin (rod) with stainless steel end pins and medical bearings. Each knuckle 2", including split nylon bearing at each separation for a quiet, smooth, self-lubricating operation.

    • Finish: US32D Satin Stainless Steel (630).  Custom finishes are available, contact us or call at 845-388-1300 for details and pricing.

    • Mounting Hardware: Custom 12-24 x 7/16" S.S. Phillips Flat Head Undercut Machine Screw.

    • Handing: Not required on standard hinges. Specify handing when ordering a hinge with modification.
    • Certifications: Fire-Rating: 3 hours on hollow metal doors. 90 minutes- hollow metal and composite. 20 minutes- wood door.
                             Classified in accordance with UL10C for positive pressure.
                             ANSI/BHMA Standard A156.26 Grade 1
                             Note: Fire label for doors and frames should be placed on the header and top rail of fire rated doors and frames.
    • Modifications and Options: Adjustable monitoring switch, hospital tip hinges, medical bearings, dutch door hinge preparation, custom hole patterns, special sheared leaf, wide throw hinges, raised barrel (Swage), edge guard hardware cut-outs, special length hinges, Electrical Modification Access Prep, CTP-Current Transfer Preparation, CE - Current Transfer-Concealed, CT- Current Transfer- Contact Switch, ES-Exposed Monitoring Switch, blank hinges (minus hole pattern), lead lined cover (1/16" LEAD), security fasteners are available through our office. For details and pricing please contact us or call 845-388-1300.

    • Priced per Piece

    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click to view our Markar FM300 Edge Mount Pin and Barrel Hinge.

    This product has a 25 year warranty against defects in workmanship and material.

    Click here to view our Full Warranty Policy.

      • SKU
        MRG3505_79
    • QuickShip
      No
    • Manufacturer
      Markar
    • MPN
      HG3505

    Printable Documents:

     Click to print Markar FM3505 Security Hinge Product Specs.

    Product Specs:

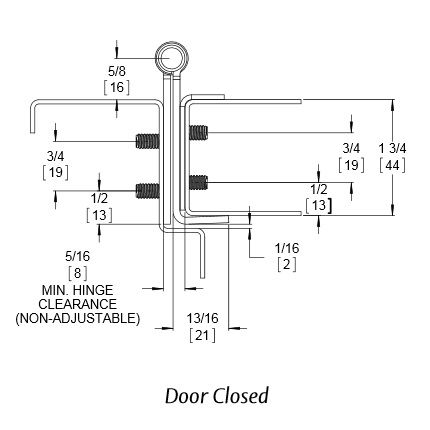

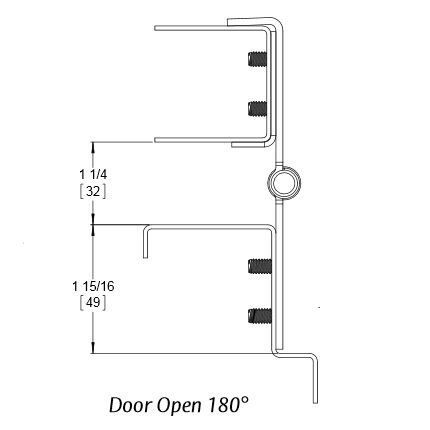

     Markar HG3505 Security Hinge Product Specs Markar HG3505 Security Hinge Product Specs

    Certifications:
    Markar Continuous Hinge Certifications



    Click to print Installation Instructions for Markar HG3505 Security Hinge with Adjustable Edge Guard.

    STEP 1. Frame Preparation:

    1. Place the hinge frame leaf on the frame. Position the top of the hinge 1/8" maximum below the header as shown (in attachment). Place the hinge firmly against the rabbet of the frame.

    2. Mark and center punch each hole on the frame with the hinge held firmly in place. For ease of installation a center punch can help center the hole so that the fasteners will enter straight. Remove the hinge from the frame and prepare to drill the frame.

    3. Drill holes: Wood frames- drill all holes using a #28 or 9/64" drill bit. Hollow metal frame- drill all holes using a #16 drill bit. If hollow metal frame is reinforced, thread all holes with 12-24 tap.

    Do not install the hinge to the frame at this time.

    STEP 2. Door Preparation:

    1. Position the hinge door leaf so that the top of the hinge is flush with the top of the door. Next make sure the return is up against the door face.

    2. Mark and center punch each hole on the door with the hinge held firmly in place (see attachment). Remove the hinge form the door and prepare to drill the door.

    3. Drill holes:

    a. For Non Adjustable Hinges on Wood Doors: Drill all holes using a #28 or 9/64" drill bit. For Non Adjustable Hinges on Hollow Metal Doors: Drill all holes using a #16 drill bit. If hollow metal door is reinforced, thread all holes with 12-24 tap.

    b. For Adjustable Hinge (If using Adjust-A-ScrewsTM) on Wood Doors: Drill all holes using a #28 or 9/64" drill bit and then enlarge holes to 5/16" with a minimum depth of 1 3/8".

    Insert Adjust-A-Screws into every hole. Place  7/32" Allen wrench in the opening of the Adjust-A-Screw (M26-0031-01) and turn the Adjust-A-Screw into the hole while keeping the screw properly aligned. Drive all the Adjust-A-Screws in until approximately 1/8" from edge of door (Fig. 3). (Adjust-A-Screw will self tap).

    For Adjustable Hinge (if using Adjust-A-ScrewsTM) on Hollow Metal Doors: Drill all holes using a #28 or 9/64" drill bit and then enlarge holes with 5/16" drill bit.

    Thread all holes with 3/8-16 tap.

    Insert Adjust-a-Screws into every hole. Place a 7/32" Allen wrench in the opening of the Adjust-A-Screw and turn the Adjust-A-Screw into the hole while keeping the screw properly aligned. Drive all the Adjust-A-Screws in until approximately 1/8" from edge of door (see attachment).

    Note: It's not necessary to tap the holes in wood doors since Adjust-A-Screws cut their own threads. Do not be concerned with the tight fit. Adjust-A-Screws are designed for a tight friction fit in the tapped holes so they will not turn when the attachment screw is being tightened. If the Adjust-A-Screws turns too freely, apply LoctiteTM to the threads during installation.

    Step 3: Hinge Installation

    1. Attaching hinge to door: Peel backing from two sided tape located on the top and bottom of EGA305 hinge guard. Properly line the holes making sure the return is up against the door face and the EGA305 is flush with the top of the door. Stick guard to edge of door.

    a. For Non-Adjustable Hinge (Fig.4) on Wood Doors: Attach hinge using #12-8 x 1 1/2" Flat Head Particle Board Screws             (PBS12150SP10SS). On Hollow Metal Doors: Attach hinge using #12-24 x 7/16" Flat Head Undercut Machine Screws (MS1244SP10SS).

    b. For Adjustable Hinge: (Fig.5) Install the top and bottom four screws first, then close door to check alignment. See special note below. On Wood and Hollow Metal: attach hinge using #10-32 x 3/4" Flat Head Undercut Machine Screws (MS10075SS).

    Special Note: If the door is properly aligned, install and tighten the remaining screws. If the door requires alignment for proper fit, make this adjustment with the four screws installed without removing the door. Remove one screw and insert the Allen wrench through the hole into the Adjust-A-Screw (Fig.5). Turn the Adjust-A-Screw in the direction desired for adjustment. One full turn of the Allen Wrench is equal to 1/16" Reinstall the screw. Adjust the reaming screws in the same manner. Close the door to verify if door is aligned properly in the opening. The balance of the Adjust-A-Screw should be adjusted in the same manner until all are resting firmly against the inside face of the hinge. Then install and tighten the remaining machining screws. Be sure the adjustable angle is pressed firmly against the face of the door as the screws are tightened.

    2. Attaching hinge to frame: (Fig 6)

    Wood frame: Attach hinge using #12-8 x 1 1/2" Flat Head Particle Board Screw (PBS12150SP10SS). Hollow Metal: Attach hinge using #12-24 x 7/16" Flat Head Undercut Machine Screws (MS1244SP10SS).

    NOTE: ALL HOLES IN THE DOOR AND FRAME MUST BE DRILLED CORRECTLY AND FASTENERS PROPERLY INSTALLED. FAILURE TO USE THE FASTENERS SUPPLIED BY OUR MANUFACTURER WILL VOID THE UL OR WHI FIRE RATED LISTING.
