Markar FM200 is a Heavy-Duty Concealed Leaf Continuous Hinge which is mortised to the frame rabbet and edge of the door to conceal both leaves.  This hinge is designed for door weighing up to 600 lbs. and a maximum width of 4'0". Hinge is made from Carbon Steel with a Zinc plated finish and is available in standard stock sizes, see below for details.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      MRFM200_79
    • Market price:$506.00
      • save 25%
    • Starting price: Price: $379.50 per item


    Marker FM200 is a Pin and Barrel Type Continuous Carbon Steel Edge Mount Hinge.

    • Standard Sizes: 6'8", 7'0", 7'2", 8'0". Custom sizing available, contact us or call at 845-388-1300 for details and pricing.

    • Applications:  Supports weights up to 600 lbs. 4'0" maximum door width. Non-handed. Heavy duty for traffic, high abuse interior door applications.  Works well in locations that used anchor hinges, pivot reinforced hinges or thrust pivot unit and hinge sets. Can be used on both fire labeled and non-labeled openings.

    • Design: Constructed from 14 gauge 1012 carbon steel, .187" diameter stainless steel pin (rod) with medical bearings and stainless steel end pins. Each knuckle 2", including nylon bearing at each separation for a quiet, smooth, self-lubricating operation. Fasteners concealed when door is closed. Saves on special door and frame preparation charges.

    • Finish: Hinge is Zinc plated. Custom finishes are available, contact us or call at 845-388-1300 for details and pricing.

    • Mounting Hardware: Custom 12-24 x 11/16" S.S. Phillips Flat Head Undercut TEK Screws.

    • Handing: Not required on standard hinges. Specify handing when ordering a hinge with modification.

    • Certifications: Fire-Rating: 3 hours on hollow metal doors. 90 minutes- hollow metal and composite. 20 minutes- wood door.
                            Classified in accordance with UL10C for positive pressure.
                            Evaluated in accordance with TAS 201-94, TAS 202-94, TAS 203-94, ASTM E330, ASTM E1886, ASTM E1996 and ANSI A250.13.
                            ANSI/BHMA Standard A156.26 Grade 1.
                            Note: Fire label for doors and frames should be placed on the header and top rail of fire rated doors and frames.

    • Modifications and Options: Scratch-resistant powder coated paint, tamper-proof security screws, custom lengths, custom hole patter, dutch door hinges, hospital tips, raised barrel, current transfer prep, ElectoLynx are available through our office. For details and pricing please contact us or call 845-388-1300.

    • Priced per Piece

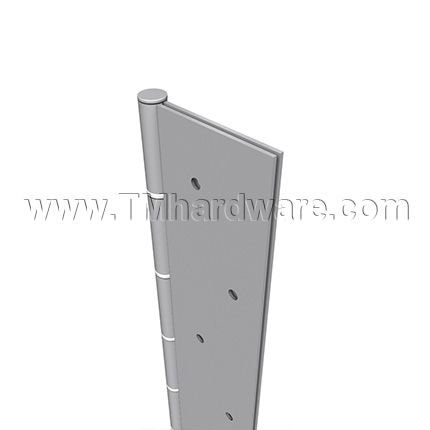

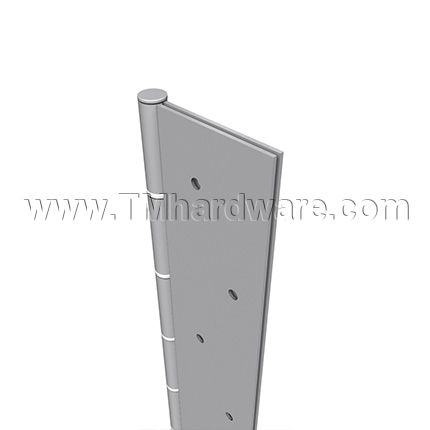

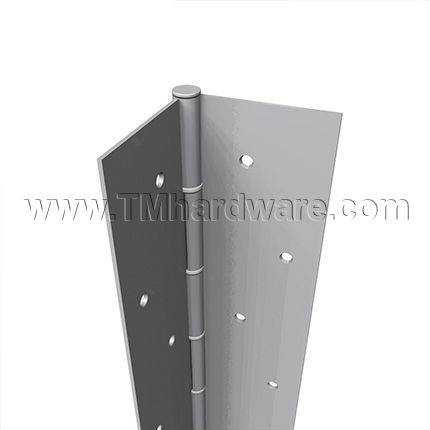

    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click to view our Markar FS201 Full Surface Continuous Hinge with 1/8" inset.

     This product has a 25 year warranty against defects in workmanship and material.

    Click here to view our Full Warranty Policy.

      • SKU
        MRFM200_79
    • QuickShip
      No
    • Manufacturer
      Markar
    • MPN
      MFM200

    Printable Documents:

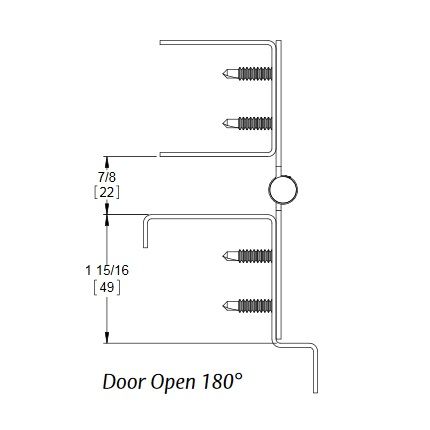

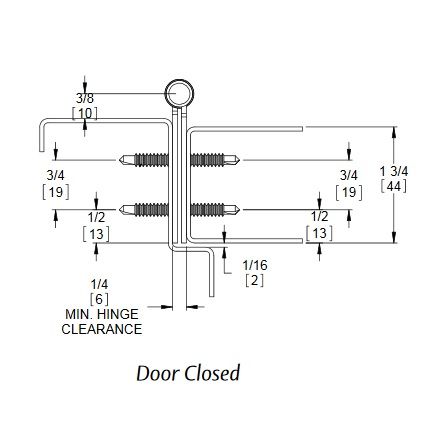

     Click to print Markar FM200 Continuous Hinge Product Specs.

    Product Specs:
    Markar FM200 Hinge Product SpecsMarkar FM200 Hinge Product Specs

    Certifications:
    Markar Continuous Hinge Certifications



    Click to print Installation Instructions for Markar FM200 Pin and Barrel Edge Mount Hinge.

    Step 1: Frame Preparation:

    1. Place the hinge frame leaf on the frame. Position the top of the hinge 1/8" maximum below the header as shown (see attachment Fig. 1). Place the hinge firmly against the rabbet of the frame.

    2. Mark and center punch each hole on the frame with the hinge held firmly in place. For ease of installation, a center punch can help center the hole so that the fasteners will enter straight. Remove the hinge from the frame and prepare to drill the frame.

    3. Drill holes: Wood frame- drill all holes using a #28 or 9/64" drill bit. Hollow Metal frame- drill all holes using a #16 drill bit. If hollow metal frame is reinforced, thread all holes with 12-24 tap.

    Do not install the hinge to the frame at this time.

    Step 2: Door Preparation

    1. Position the hinge door leaf so that the top of the hinge is flush with the top of the door. Next make sure the hinge edge is up flush with the door face.

    2. Mark and center punch each hole on the door with the hinge held firmly in place (Fig.2). Remove the hinge from the door and prepare to drill the door.

    3. Drill holes: Wood Doors- drill all holes using a #28 or 9/64" drill bit. Hollow Metal Doors: Drill all holes using a #16 drill bit. If hollow metal door is reinforced, thread all holes with 12-24 tap.

    Step 3: Hinge Installation

    1. Attaching hinge to door (Fig.3)

    Wood: Attach hinge using 12-8 x 1 1/2" Flat Head Particle Board Screws (PBS12150SP10SS).

    Hollow Metal: Attach hinge using #12-24 x 11/16" Flat Head Undercut Self Drilling Machine Screws (TKS1267SP10SS).

    2. Attaching hinge to frame (Fig. 4)

    Wood: Attach hinge using 12-8 x 1 1/2" Flat Head Particle Board Screws (PBS12150SP10SS).

    Hollow Metal: Attach hinge using #12-24 x 11/16" Flat Head Undercut Self Drilling Machine Screws (TKS1267SP10SS).
