Markar FS302 Stainless Steel Hinge, Flush Full Surface

Markar FS302 Stainless Steel Hinge, Flush Full Surface
Markar

Markar FS302 is a Heavy-Duty Full Surface Flush Mount Continuous Hinge which is attached to the surface of the door frame and door, with an aluminum cover concealing fasteners.  This hinge is designed for door weighing up to 600 lbs. and a maximum width of 4'0". Hinge is Satin Stainless Steel and available in standard stock sizes, see below for details.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      MRFS302_79
    • Market price:$914.00
      • save 25%
    • Starting price: Price: $685.50 per item

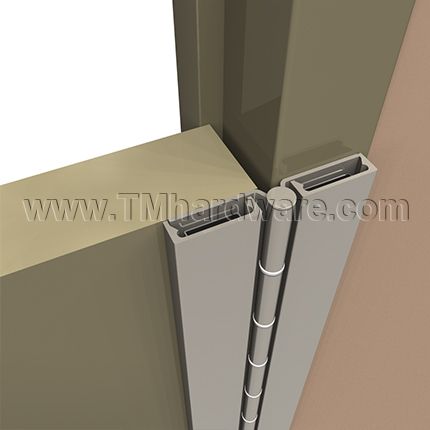

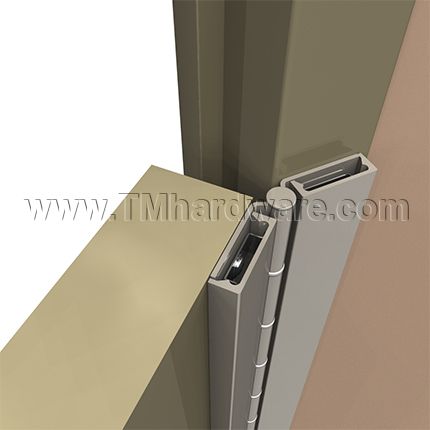

    Marker FS302 is a Pin and Barrel Type Continuous Stainless Steel Full Surface Leaf Flush Mount Hinge.

    • Standard Sizes: 6'8", 7'0", 7'2", 8'0", 10'0". Custom sizing available, contact us or call at 845-388-1300 for details and pricing.

    • Applications:  Supports weights up to 600 lbs. 4'0" maximum door width. Can be used to repair or replace existing hinges on both fire labeled and non-labeled doors. Designed for retrofit market. Extra heavy duty for high traffic, high abuse door applications, including correctional facilities, high security locations and extra heavy doors.

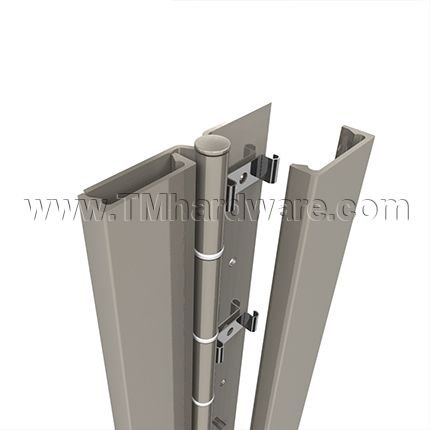

    • Design: Constructed from 14 gauge stainless steel (US32D), .187" diameter stainless steel pin (rod) with stainless steel end pins and medical bearings. Each knuckle 2", including split nylon bearing at each separation for a quiet, smooth, self-lubricating operation. Fasteners concealed under extruded aluminum cover.
    • Finish: US32D Satin Stainless Steel (630) on hinge, brushed aluminum on cover.  Custom finishes are available, contact us or call at 845-388-1300 for details and pricing.
    • Mounting Hardware: 1/4-14 x 3/4" Security TORX TEK screws.
    • Handing: Handing not required on standard hinges. Specify handing when ordering a hinge with electric modifications.
    • Certifications: Fire-Rating: 3 hours on hollow metal doors. 90 minutes- hollow metal and composite. 20 minutes- wood door.
                            Classified in accordance with UL10C for positive pressure.
                            ANSI/BHMA Standard A 156.26 Grade 1
                            Evaluated in accordance with TAS 201-94, TAS 202-94, TAS 203-94, ASTM E330, ASTM E1886, ASTM E1996 and ANSI A250.13.
                            Note: Fire label for doors and frames should be placed on the header and top rail of fire rated doors and frames.
    • Modifications and Options: Adjustable monitoring switch, hospital tip hinges, medical bearings, dutch door hinge preparation, custom hole patterns, special sheared leaf, wide throw hinges, raised barrel(Swage), edge guard hardware cut-outs, special length hinges, Electrical Modification Access Prep, CTP-Current Transfer Preparation, CE - Current Transfer-Concealed, CT- Current Transfer- Contact Switch, ES-Exposed Monitoring Switch, blank hinges (minus hole pattern), lead lined cCover (1/16" LEAD), security fasteners are available through our office. For details and pricing please contact us or call 845-388-1300.
    • Priced per Piece
    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click to view our Markar HS303 Pin and Barrel Hinge, Half Surface.

     This product has a 25 year warranty against defects in workmanship and material.

    Click here to view our Full Warranty Policy.

      • SKU
        MRFS302_79
    • QuickShip
      No
    • Manufacturer
      Markar
    • MPN
      MFS302



    Printable Documents:

     Click to print Markar FS302 Continuous Hinge Product Specs.

    Product Specs:

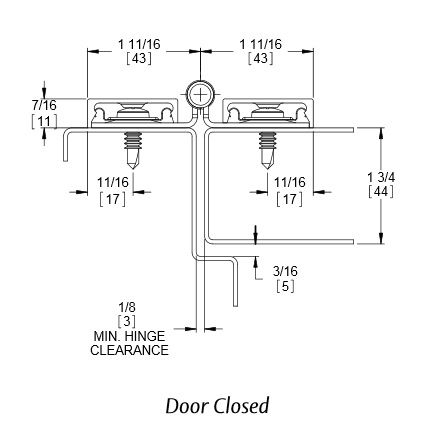

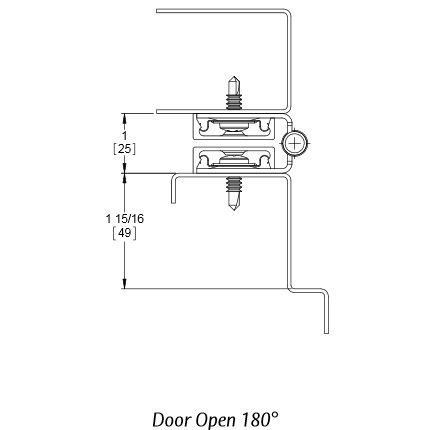

    Markar FS302 Pin and Barrel Hinge Product Specs Markar FS302 Pin and Barrel Hinge Product Specs

    Certifications:
    Markar Continuous Hinge Certifications



    Click to print Installation Instructions for Markar FS302 Pin and Barrel Hinge.

    General Information:

    All holes in the hinge must be drilled correctly and fasteners properly installed. Failure to use the fasteners supplied by Marker Architectural Products, Inc. will void the UL or WHI fire-rate listing. Do not install Snap-On cover until installation is 100% complete and all aspects of the assembly are correctly fastened and properly fitted.

    The Screw Pack contains self-drilling Tek screws. These screws are also  recommended for grout filled frames.  Perform each step of the following instructions.

    Installation:

    1. Place hinge on frame as shown in Figure 1 (see attachment). Allow 1/8" between top of hinge and underside of header. Note that at least 1 5/8" of frame face is required for mounting this hinge.

    2. Mark the position of the top and bottom holes with a center punch, then drill and fasten. The use of the Markar center punch can help center the hole so that the fasteners will enter straight.

    3. After the top and bottom screws are installed, drill and fasten the balance of the holes. Install at least five cover clips by passing a screw through the clip, hinge leaf and frame. (See Figure 2). It is recommended that clips be positioned in the top, center and bottom holes with the remaining clips spaced equally along the length of the hinge.

    4. Fold the door leaf back over the frame leaf and place the door in the door frame. Place shims under the door to provide 1/8" clearance between the header and the top of the door. Add shims at both the hinge and latch side of the door so that 1/8" clearance will be maintained equally on the lock side of the door.

    5. With the door held firmly in place, return the door leaf to the face of the door and repeat the drilling procedure described in steps 2 and 3. Molly Jacknuts and aluminum sleeve bolts are available through our office as an optional means of attaching your door. Steel sleeve bolts must be used on mineral core wood fire doors.

    6. Install the Snap-On covers by engaging the side of the cover next to the hinge pin first.

    7. Insert a large screwdriver between the hinge knuckle and the cover. Using the screwdriver as a lever, twist it and snap the opposite side of the cover onto the clip.

    8. Start at the top and work downward until the entire length of each cover is firmly engaged.

    9. With the covers firmly in place, secure them at both ends through the hinge and into the door and frame with #8 x 3/4" self-drilling flat head Tek screws. Follow instructions on the box for field cut-down.
