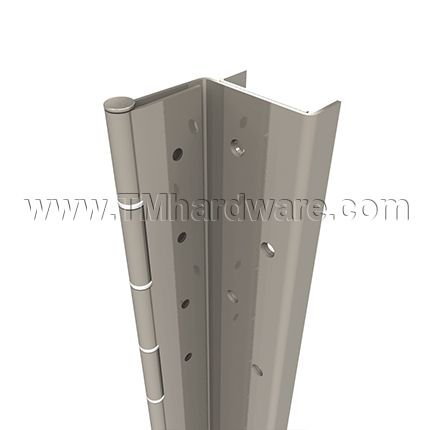

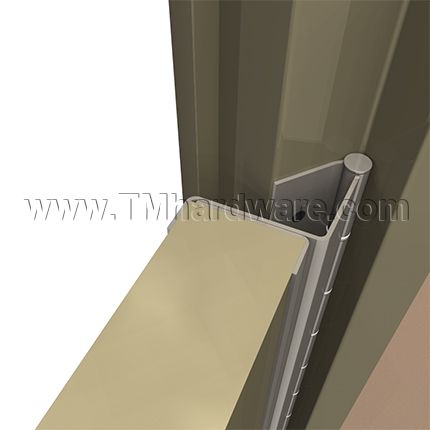

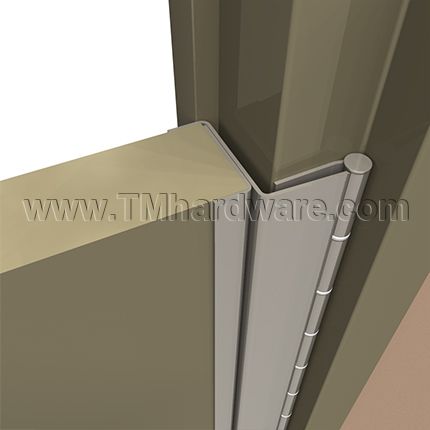

Markar HG310 is a Heavy-Duty Concealed Leaf Continuous Hinge which is mortised to the frame rabbet and edge of the door to conceal both leaves. Designed with a door edge protection lip and wrap around frame leaf design for square edged doors weighing  up to 600 lbs. and a maximum width of 4'0". Hinge is Satin Stainless Steel and available in standard stock sizes, see below for details and pricing.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      MRG310_79_RH
    • Market price:$1,149.00
      • save 25%
    • Starting price: Price: $861.75 per item


    Marker HG310 is a Pin and Barrel Type Continuous Stainless Steel Concealed Leaf Hinge with 'Swing Clear Action'.

    • Standard Sizes: 6'8", 7'0", 7'2", 8'0", 10'0". Custom sizing available, contact us or call at 845-388-1300 for details and pricing.

    • Applications:  Supports weights up to 600 lbs. 4'0" maximum door width. Extra heavy duty for high traffic, high abuse door applications, including correctional facilities, high security locations and extra heavy doors.  ADA compliant hinge for use on operataing room doors out of the opening when moving equipment in and out.

    • Design: Constructed from 14 gauge 304 stainless steel (US32D), .187" diameter 304 stainless steel pin (rod) with medical bearings and stainless steel end caps. Each knuckle 2", including split nylon bearing at each separation for a quiet, smooth, self-lubricating operation. Fasteners concealed when door is closed. Built in hinge guard protects the door in the open position.

    • Finish: US32D Satin Stainless Steel (630).  Custom finishes are available, contact us or call at 845-388-1300 for details and pricing.

    • Mounting Hardware: Custom 12-24 x 11/16" S.S. Phillips Flat Head Undercut TEK Screws.

    • Handing: Specify Handing when ordering hinge. Select handing from options above. Not sure what handing is required for your door? See How to Determine Handing / Swing of Door.

    • Certifications: Fire-Rating: 3 hours on hollow metal doors. 90 minutes- hollow metal and composite. 20 minutes- wood door.
                            Classified in accordance with UL10C for positive pressure.
                            Evaluated in accordance with TAS 201-94, TAS 202-94, TAS 203-94, ASTM E330, ASTM E1886, ASTM E1996 and ANSI A250.13.
                            ANSI/BHMA Standard A156.26 Grade 1.
                            Note: Fire label for doors and frames should be placed on the header and top rail of fire rated doors and frames.

    • Modifications and Options: Adjustable monitoring switch, hospital tip hinges, medical bearings, dutch door hinge preparation, custom hole patterns, special sheared leaf, wide throw hinges, raised barrel(Swage), edge guard hardware cut-outs, special length hinges, Electrical Modification Access Prep, CTP-Current Transfer Preparation, CE - Current Transfer-Concealed, CT- Current Transfer- Contact Switch, ES-Exposed Monitoring Switch, Blank Hinges (Minus Hole Pattern), Lead Lined Cover (1/16" LEAD), Security Fasteners are available through our office. For details and pricing please contact us or call 845-388-1300.

    • Priced per Piece

    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click to view our Markar HG311 Stainless Steel Hinge with Swing Clear Action.

     This product has a 25 year warranty against defects in workmanship and material.

    Click here to view our Full Warranty Policy.

      • SKU
        MRG310_79_RH
    • QuickShip
      No
    • Manufacturer
      Markar
    • MPN
      MHG310
    • Handing
      Right Hand, Left Hand

    Printable Documents:

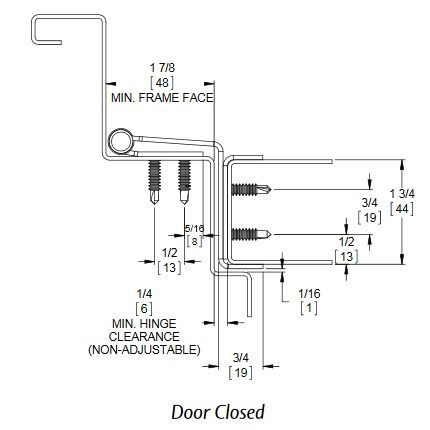

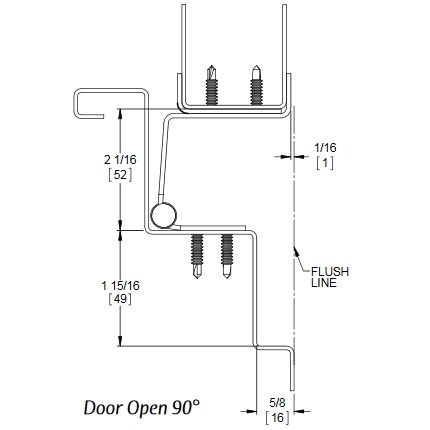

     Click to print Markar HG310 Continuous Hinge Product Specs.

    Product Specs:
    Markar HG310 Pin and Barrel Hinge Product SpecsMarkar HG310 Pin and Barrel Hinge Product Specs

    Certifications:
    Markar Continuous Hinge Certifications



    Click to print Installation Instructions for Markar HG310 Pin and Barrel Hinge.

    General Information:

    Failure to use the fasteners supplied by our manufacturer will void the UL fire rated listing. The Universal Screw Pack contains steel metal, machine and self-drilling Tek screws. This allows three different installing options. If mounting a wooden or unreinforced door, follow option A in the instructions. Follow option B if the door is reinforced or at least 1/8" thick. Follow option C if using self-drilling Tek screws which are recommended for grout-filled frames.

    Perform each step of these instructions unless specifically labeled A, B or C.

    Installation:

    1. Place hinge on frame as shown in Figure 1 on the other side of these instructions. Allow 1/8" between the top of hinge and the underside of the header. Place the hinge edge in line with the frame face.

    2. Mark all the hole locations on the door jamb with the hinge held firmly in place.

    3. Center punch each hole. The use of the Markar center punch can help center the hole so that the fasteners will enter straight. The tap on the tool sits in the countersunk hole on the hinge.

    4. For instructions A and B: Drill all the holes using a #25 bit.

    5. For instructions B: Tap the holes for a 10-24 thread. Do not install the hinge to the frame at this time.

    6. Place the hinge on the edge of the door. Carefully line up the hinge with the top of the door.

    7. Mark all the hole locations on the door with the hinge held firmly in place. Check handing.

    8. Center punch each hole.

    9. Remove the hinge and for instructions A, drill each hole with a 5/16" bit to a minimum depth of 1 3/8". Note: it is not necessary to tap the holes in a wood door since AdjustaScrews will cut their own threads.

    10. For instructions B: Tap the holes for a 3/8-16 thread. Make sure the door is properly reinforced.

    11. Insert AdjustaScrews into every hole. Place a 3/16" Allen wrench in the opening of the AdjustaScrew and simply turn into the hole while keeping the AdjustaScrew properly aligned. Drive each AdjustaScrew in until it is approximately flush with the edge of the door.

    Installation A: A screw gun or variable speed electric drill with an Allen bit provides a faster menas of installing the AdjustaScrews.

    Installation B: Do not be concerned with the tight fit. AdjustaScrews are designed for a tight fit. AdjustaScrews are designed for a tight fiction fit in the tapped holes so they will not turn when the attachment scew is being tightened. If the AdjustaScrews turn too freely, apply LoctiteTM for threaded joints to the screw threads during installation.

    12. Place the hinge on the door lining up the hole pattern with the AdjustaScrews. A screw gun or variable speed electric drill with a Markar hex driver bit provides a faster means of installing the AdjustScrew.

    13. Install only the top two and bottom 10-32 x 3/4" machine screws. Fully tighten the screws.

    14. Attach the door and hinge to the frame. For instructions A: using sheet metal screws, for instructions B: using 10-24 x 3/4" flat head undercut machine screws, for instructions C: using self-drilling Tek screws. If the grout is hard, drilling a pilot hole can help.

    15. Close the door and check for proper alignment. If the door requires alignment for proper fit, make this adjustment with the four screws already installed without removing the door. Remove the screws and insert the Allen wrench through the hole into the AdjustaScrew. Loosen the other machine screw at the same end and turn the AdjustaScrew in the direction of the desired adjustment. Adjust the remaining AdjustaScrews in the same manner until a perfect fit is achieved, then tighten all four machine screws. The balance of the AdjustaScrews should be adjusted in the same manner until all are resting firmly against the inside face of the hinge/guard.  Install and tighten the remaining machine screws. Be sure the adjustable angle is pressed firmly against the face of the door as the screws are tightened.
