Markar HG329 Stainless Steel Hinge, Hinge Guard with Swing Clear Action for Square Edged Doors

Markar HG329 Stainless Steel Hinge, Hinge Guard with Swing Clear Action for Square Edged Doors
Markar

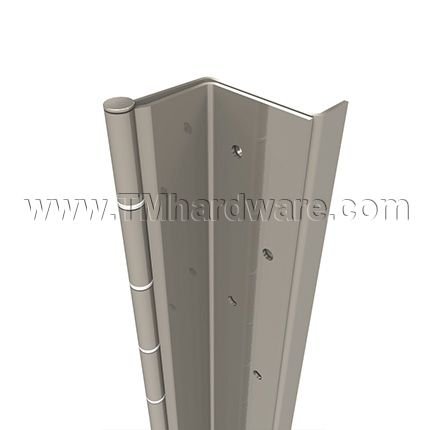

Markar HG329 is a Heavy-Duty Concealed Leaf Continuous Hinge which is mortised to the frame rabbet and edge of the door to conceal both leaves.  This hinge is designed with a hinge guard and swing clear action for square edged doors weighing up to 600 lbs. and a maximum width of 4'0". Hinge is Satin Stainless Steel and available in standard stock sizes, see below for details.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      MRHG329_79_RH
    • Market price:$1,095.00
      • save 25%
    • Starting price: Price: $821.25 per item

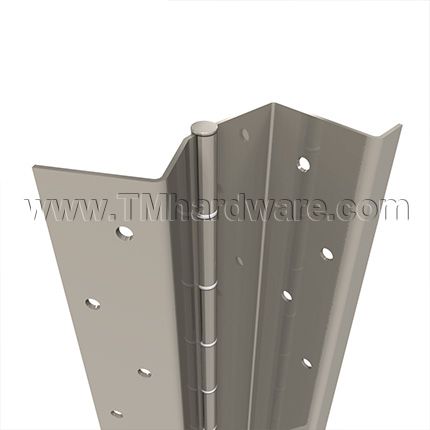

    Marker HG329 is a Pin and Barrel Type Continuous Stainless Steel Concealed Leaf Hinge with Hinge Guard and Swing Clear Action.

    • Standard Sizes: 6'8", 7'0", 7'2", 8'0". Custom sizing available, contact us or call at 845-388-1300 for details and pricing.

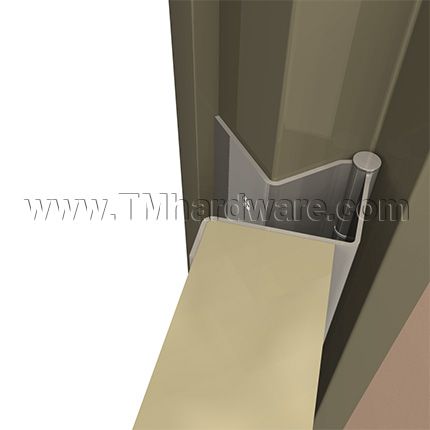

    • Applications:  Supports weights up to 600 lbs. 4'0" maximum door width, for square edged doors. Extra heavy duty for high traffic, high abuse door applications, including correctional facilities, high security locations and extra heavy doors.  Incorporated edge guard protects the door from unsightly dents and gouges while also protecting the hinge from vandalism.

    • Design: Constructed from 14 gauge 304 stainless steel (US32D), .187" diameter 304 stainless steel pin (rod) with medical bearings and stainless steel end pins. Each knuckle 2", including split nylon bearing at each separation for a quiet, smooth, self-lubricating operation. Fasteners concealed when door is closed.

    • Finish: US32D Satin Stainless Steel (630).  Custom finishes are available, contact us or call at 845-388-1300 for details and pricing.

    • Mounting Hardware: Custom 12-24 x 11/16" S.S. Phillips Flat Head Undercut TEK Screws.

    • Handing: Specify Handing when ordering hinge. Select handing from options above. Not sure what handing is required for your door? See How to Determine Handing / Swing of Door.

    • Certifications: Fire-Rating: 3 hours on hollow metal doors. 90 minutes- hollow metal and composite. 20 minutes- wood door.
                            Classified in accordance with UL10C for positive pressure.
                            Evaluated in accordance with TAS 201-94, TAS 202-94, TAS 203-94, ASTM E330, ASTM E1886, ASTM E1996 and ANSI A250.13.
                            ANSI/BHMA Standard A156.26 Grade 1.
                            Note: Fire label for doors and frames should be placed on the header and top rail of fire rated doors and frames.

    • Modifications and Options: Adjustable monitoring switch, hospital tip hinges, medical bearings, dutch door hinge preparation, custom hole patterns, special sheared leaf, wide throw hinges, raised barrel(Swage), edge guard hardware cut-outs, special length hinges, Electrical Modification Access Prep, CTP-Current Transfer Preparation, CE - Current Transfer-Concealed, CT- Current Transfer- Contact Switch, ES-Exposed Monitoring Switch, blank hinges (minus hole pattern), lead lined cover (1/16" LEAD), security fasteners are available through our office. For details and pricing please contact us or call 845-388-1300.

    • Priced per Piece

    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click to view our Markar EG308 Stainless Steel Edge Guard.

     This product has a 25 year warranty against defects in workmanship and material.

    Click here to view our Full Warranty Policy.

      • SKU
        MRHG329_79_RH
    • QuickShip
      No
    • Manufacturer
      Markar
    • MPN
      MHG329
    • Handing
      Right Hand, Left Hand

    Printable Documents:

     Click to print Markar HG329 Continuous Hinge Product Specs.

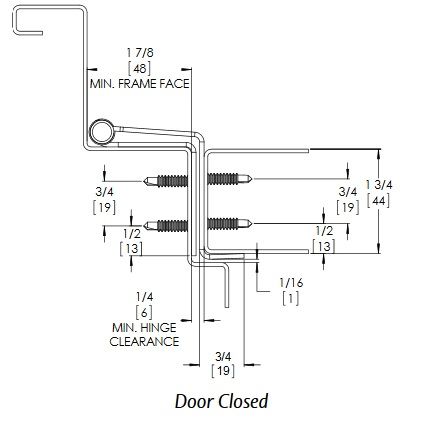

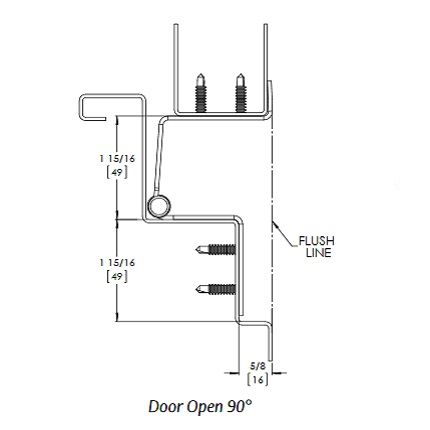

    Product Specs:
    Markar HG329 Continuous Hinge Product SpecsMarkar HG329 Continuous Hinge Product Specs

    Certifications:
    Markar Continuous Hinge Certifications



    Click to print Installation Instructions for Markar HG329 Pin and Barrel Hinge.

    General Information:

    All holes in the door and frame must be drilled correctly and fasteners properly installed. Failure to use the fasteners supplied by our manufacturer will void the UL or WHI fire rated listing.

    The Universal Screw Pack contains sheet metal, machinge and self-drilling Tek screws. This allows three different installtion options. If mounting a wood or unreinforced hollow metal door, follow optiona A in the instructions. Follow option B, if the door is reinforced or at least 1/8" thick. If you use the self-drilling Tek scres. (recommended for grouting frames) follow option C. If the grout is hard, drilling a pilot hole can help. Perform each step of these instructions unless specifically labeled A, B or C.

    Installation:

    1. Place hinge on frame. Allow 1/8" between top of hinge and underside of header. Allow 1/16" between stop and edge of hinge.

    2. Mark all the hole locations on the door jamb with the hinge held firmly in place.

    3. Center punch each hole. The use of a center punch (available through our office) can help center the hole so that the fasteners will enter straight. The taper on the tool sits in the countersunk hole on the hinge.

    4. For instructions A and B: Drill all the holes using a #25 bit.

    5. For instructions B: Tap the holes for a 10-24 thread.

    6. Place the higne on the edge of the door. Carefully line up the hinge with the top and back edges of the door.

    7. Mark all the hole locations on the door with the hinge held firmly in place. Check handing.

    8. Center punch each hole.

    9. For instructions A and B: Drill all the holes using a #25 bit.

    10. For instructions A: Attach the hinge to the door with #10 x 1 1/4" flat head undrecut sheet metal screws. For instructions B: Tap the holes for a 10-24 thread. Attach the hinge to the door with 10-24 flat head undercut machine screws. For instructions C: Attach the hinge to the door with #10 x 1/2" flat head undercut self-drilling Tek screws.

    11. Attach the hinge and door to the frame. For instructions A: Using a #10 x 1 1/4" flat head undercut sheet metal screws. For instructions B: Using 10-24 flat head undercut machine screws. For instructions C: Using self-drilling Tek screws.

    12. Close the door and check for proper alignment. If the door requires adjustment for proper fit, make this adjustment by loosenign screws on the frame leaf and shimming where needed. Follow instruction on the box for field cut down.



    All holes in the door and frame must be drilled correctly and fasteners properly installed. Failure to use the fasteners supplied by our manufacturer will void the UL or WHI fire rated listing.

    The Universal Screw Pack contains sheet metal, machinge and self-drilling Tek screws. This allows three different installtion options. If mounting a wood or unreinforced hollow metal door, follow optiona A in the instructions. Follow option B, if the door is reinforced or at least 1/8" thick. If you use the self-drilling Tek scres. (recommended for grouting frames) follow option C. If the grout is hard, drilling a pilot hole can help. Perform each step of these instructions unless specifically labeled A, B or C.

    1. Place hinge on frame. Allow 1/8" between top of hinge and underside of header. Allow 1/16" between stop and edge of hinge.

    2. Mark all the hole locations on the door jamb with the hinge held firmly in place.

    3. Center punch each hole. The use of a center punch (available through our office) can help center the hole so that the fasteners will enter straight. The taper on the tool sits in the countersunk hole on the hinge.

    4. For instructions A and B: Drill all the holes using a #25 bit.

    5. For instructions B: Tap the holes for a 10-24 thread.

    6. Place the higne on the edge of the door. Carefully line up the hinge with the top and back edges of the door.

    7. Mark all the hole locations on the door with the hinge held firmly in place. Check handing.

    8. Center punch each hole.

    9. For instructions A and B: Drill all the holes using a #25 bit.

    10. For instructions A: Attach the hinge to the door with #10 x 1 1/4" flat head undrecut sheet metal screws. For instructions B: Tap the holes for a 10-24 thread. Attach the hinge to the door with 10-24 flat head undercut machine screws. For instructions C: Attach the hinge to the door with #10 x 1/2" flat head undercut self-drilling Tek screws.

    11. Attach the hinge and door to the frame. For instructions A: Using a #10 x 1 1/4" flat head undercut sheet metal screws. For instructions B: Using 10-24 flat head undercut machine screws. For instructions C: Using self-drilling Tek screws.

    12. Close the door and check for proper alignment. If the door requires adjustment for proper fit, make this adjustment by loosenign screws on the frame leaf and shimming where needed. Follow instruction on the box for field cut down.
