Hettich SlideLine M Profile Set, 98.43" Track

Hettich SlideLine M Profile Set, 98.43" Track
Hettich

Hettich Profile Sets for use with SlideLine M 9156338 and 9156339 Door Hardware for Overlay Doors. 98.43" (2500 mm) Length Silver Anodized Aluminum Track, compatible with .71"/.75" (18/19 mm) and .98" (25 mm) thick shelves.

PRICED PER SET - See Product Details and Specs in the tabs below.

See tabs below for additional information
    • Weight
      1.4 lbs
    • SKU
      HT9209225
    • Starting price: Price: $65.55 per set


    Hettich Profile Sets for SlideLine M sliding door furniture hardware.

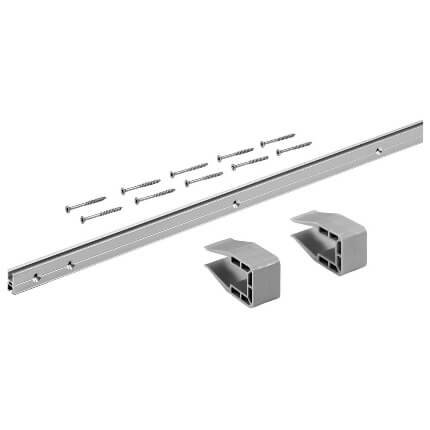

    Set includes:

    • (1 ea.) Runner Profile, Silver Anodized Aluminum, pre-drilled
    • (2 ea.) Mounting Clips
    • Fixing Screws

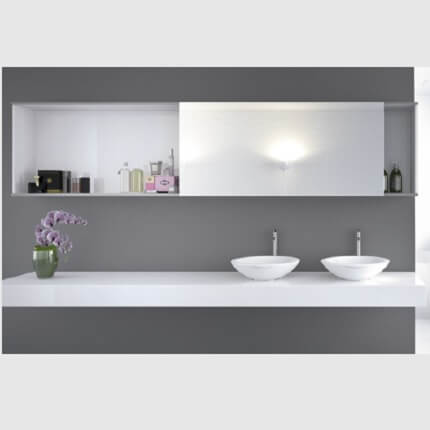

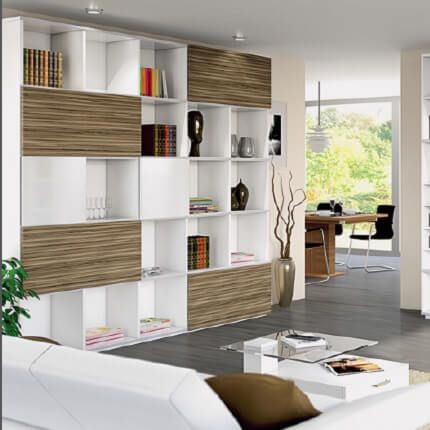

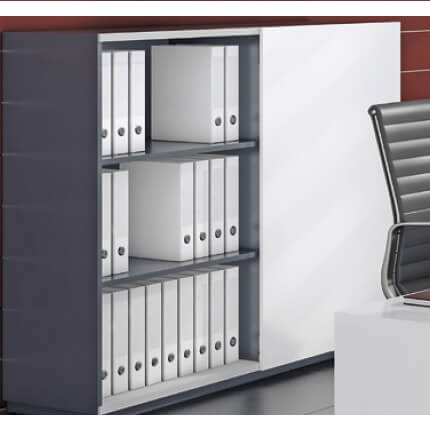

    Applications: For overlay, bottom running doors. Used in conjunction with Hettich SlideLine M 9156338 and 9156339 Door Hardware.

    Finish: Available standard in Silver Anodized Aluminum. Decorative Profile Color Sets are available for applications where profile needs to blend in with furniture.

    Door Weight: For doors up to 66.14 Lb. (30 Kg.)

    Length: 98.43" (2500mm). Can be cut down to size on the field. If long enough, the profile can be cut in half and used as a top and bottom profile.

    Shelf Thickness: Available standard for .71"/.75" (18/19mm) and .98" (25 mm) thicknesses. Profile sets are available for shelf thicknesses; .59" (15mm), .63"(16 mm) and .87"(22 mm), to order, please contact us or call our office at 845-388-1300.

    Profile Height: .71" (18mm) and .98" (25mm).

    Installation: Quick and easy installation with provided mounting hardware.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    Click to view our Hettich SlideLine M Double Runner Profile.

      • Weight
        1.4 lbs
      • SKU
        HT9209225
    • QuickShip
      No
    • Manufacturer
      Hettich
    • MPN
      9209225; 9209230
    • Profile Height
      .71" (18mm) #9209225, .98" (25 mm) #9209230

    Tested to EN 15706, Level 1 or 3

    When constructing furniture it is important to note that the sliding door must be no higher than twice its width. Up to this relative height, SlideLine M meets the above stated quality and safety requirements for DIN EN 15706. If the specified maximum relative height is exceeded, the furniture construction must undergo a function and safety test as defined in the relevant furniture standard.

    Under DIN EN 15706 Level 1, the version of the fitting without Silent System is approved for use if it passes the 2 kg closing test provided for there. If a higher loading capacity is to be reached, e.g. on the grounds of requirements defined in a relevant furniture standard, this must be ensured by the fabricator in terms of furniture design (e.g. inset installation.)
