Hettich Grant Bi-fold 150 Sliding Door Hardware and Track, Doors up to 150 Lbs. per Panel, 2 Panel / 4 Panel Applications

Hettich Grant Bi-fold 150 Sliding Door Hardware and Track, Doors up to 150 Lbs. per Panel, 2 Panel / 4 Panel Applications
Hettich

This product is discontinued. To purchase a similar product please view all our Sliding Door Systems.

Buy more for less:
1-4 items $82.60 / each
5-9 items $73.07 / each save 12%
10-29 items $63.54 / each save 23%
30 or more items $57.18 / each save 31%
See tabs below for additional information
    • SKU
      HT1135244
    Call for price!
    845-388-1300

    Product Options:

    • 2 door set for 1 way doors with 2 panels.
    • 4 door set for 2 way doors with 2 panels on each side.

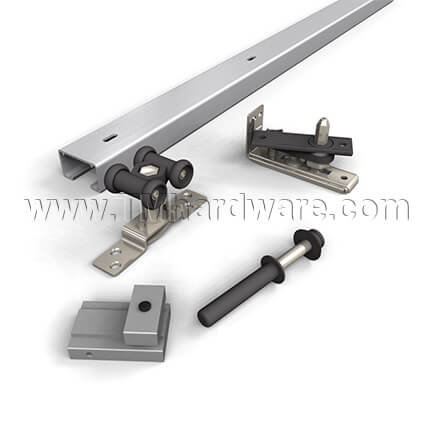

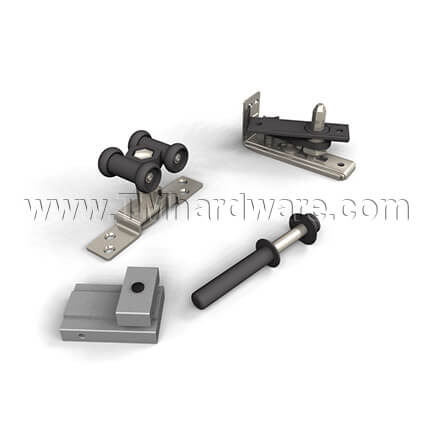

    2 Door Set Includes:

    • (1 ea.) Single Track 150E
    • (1 ea.) Pivot Plate Assembly
    • (1 ea.) Carrier 150E with quick release top plate
    • (1 ea.) Plunger Spring Assembly

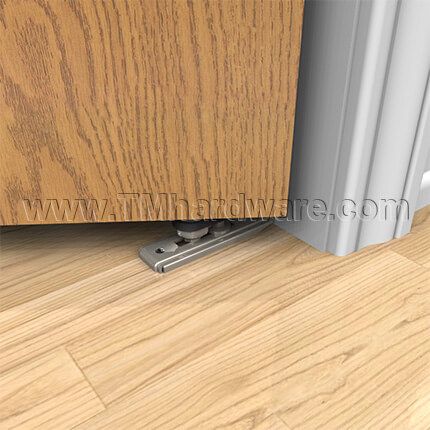

    • (1 ea.) Floor Cam Assembly
    • All necessary screws

    Please note: Bi-fold hinge sets are not included.

    4 Door Set Includes:

    • (2 ea.) Single Track 150E
    • (2 ea.) Pivot Plate Assembly
    • (2 ea.) Carrier 150E with quick release top plate
    • (2 ea.) Plunger Spring Assembly
    • (2 ea.) Floor Cam Assembly
    • All necessary screws

    Please note: Bi-fold hinge sets are not included.

    Track Length: Available in sets with track 48", 60", 72" and 96" long. For longer track applications, order hardware set and track separately.

    Applications: Medium duty folding door system used in top hung applications for residential and commercial applications. Ideal for closet doors. Can be used in bi-fold and multi-fold door applications (see product options tab for full range of applications.)

    Door Weight: For doors weighing up to 150 Lbs. (68 Kg.) per panel in bi-fold and 75 lbs. (34 kg.) per panel in multi-fold applications.

    Door Thickness: For door panels 1" (25.4 mm) - 1 3/4" (44.4 mm) thick.

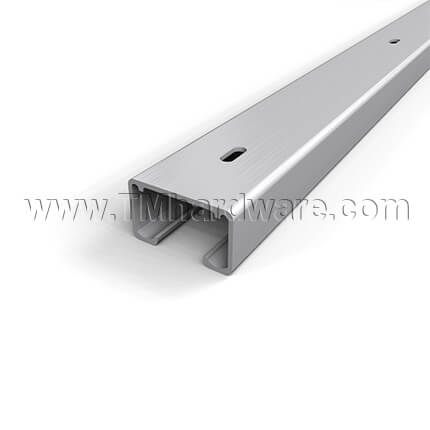

    Track: Extruded Aluminum box track with pre-drilled holes.

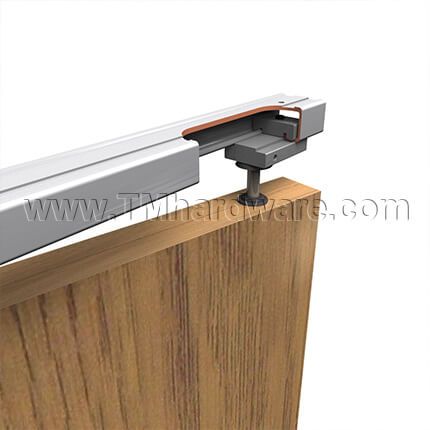

    Carrier: Ball bearing carrier with 4 wheels for smooth and long lasting operation.

    Track Mounting: Track is mounted to header.

    Carrier Mounting: Carriers are mounted to the top of the door.

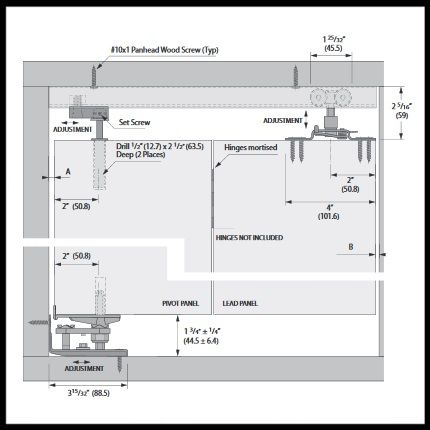

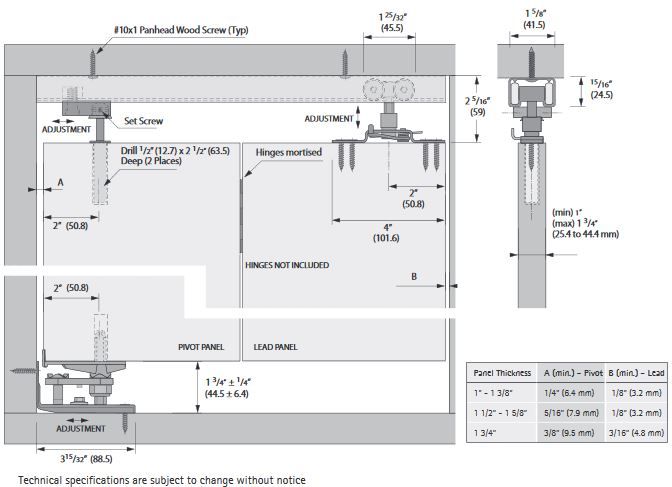

    Headroom: 2 1/16" (52.4 mm) minimum - 2 9/16" (65.1 mm) maximum.

    Features:

    • Doors fold flat for easy access.
    • Unique design keeps door in hold open or hold closed position.
    • Floor cam functions as marking template to keep top and bottom holes aligned, no measuring or floor guide needed.

    Certifications: Meets and/or exceeds ANSI/BHMA standards.

    Optional Components: Bottom Guide Channel (1222), Guide Roller (1221). To order, please contact us or call our office at (845) 388-1300.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For single door applications, see our Hettich Grant 71-034 Sliding Door Sets.

      • SKU
        HT1135244
    • QuickShip
      No
    • Manufacturer
      Hettich
    • MPN
      1135244; 1135245; 1135246; 1135247; 1135248; 1135249; 1135250; 1135251
    • Product Options
      2 Door Set, 4 Door Set
    • Track Length
      48" Length Track, 60" Length Track, 72" Length Track, 96" Length Track

    To order these options please contact us or call out office at (845) 388-1300.

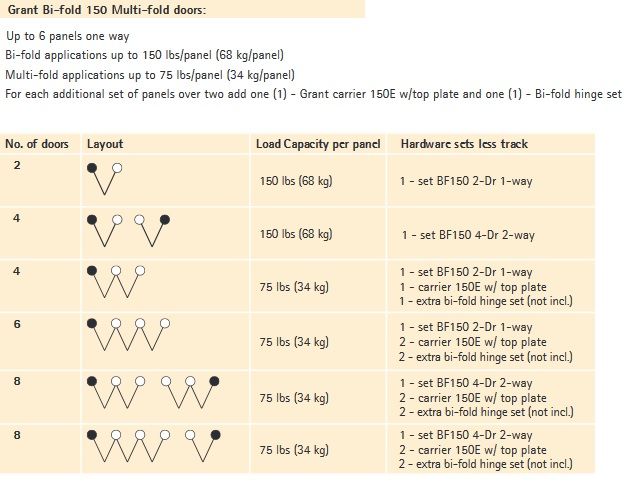

    Hettich Bi-fold 150 Product Options
