Hettich Grant Bi-fold 50, Doors 50 Lbs. per Panel, 2 - 4 Panel Applications
Hettich Grant Sliding Door Hardware for bi-fold doors installed in a 2 door or 4 door application. For doors 3/4" to 1 3/4" thick and up to 50 lbs. per panel in bi-fold applications (30 lbs. multi-fold.) Features a unique stay open/closed hardware design to keep doors in place. Used in light duty top hung applications and ideal for closet doors. Track sold separately.
PRICED PER PACK
Product Options:
- 2 door set for 1 way doors with 2 panels.
- 4 door set for 2 way doors with 2 panels on each side.

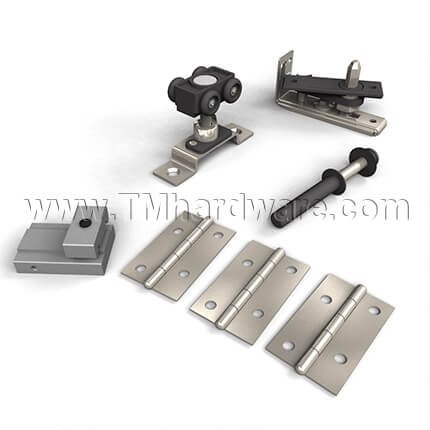

2 Door Set Includes:

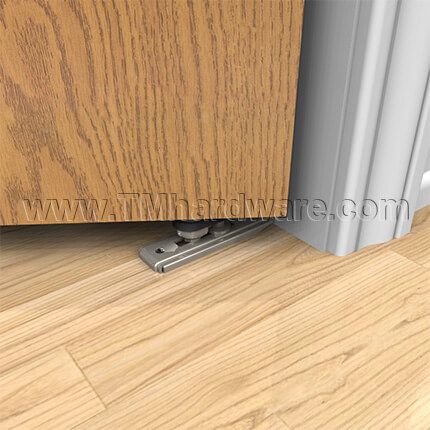

- (1 ea.) Pivot Plate Assembly
- (1 ea.) Carrier 50E with quick release top plate
- (1 ea.) Plunger Spring Assembly
- (1 ea.) Floor Cam Assembly
- (1 ea.) Bi-fold Hinge Set 2646
- All necessary screws
4 Door Set Includes:
- (2 ea.) Pivot Plate Assembly
- (2 ea.) Carrier 50E with quick release top plate
- (2 ea.) Plunger Spring Assembly
- (2 ea.) Floor Cam Assembly
- (2 ea.) Bi-fold Hinge Set 2646
- All necessary screws
Applications: Light duty folding door system used in top hung applications for residential and commercial applications. Can be used in light weight bi-fold door applications. Ideal for closet doors. For full application options see product options tab.
Door Weight: For doors weighing up to 50 Lbs. (23 Kg.) per panel in bi-fold applications and 30 Lbs. (14 Kg.) in multi-fold applications.
Door Thickness: For door panels 3/4" (19 mm) - 1 3/4" (44.4 mm) thick.
Track: Sold separately. To order this set with track, see our Hettich Grant Bi-fold 50 Hardware and Track.

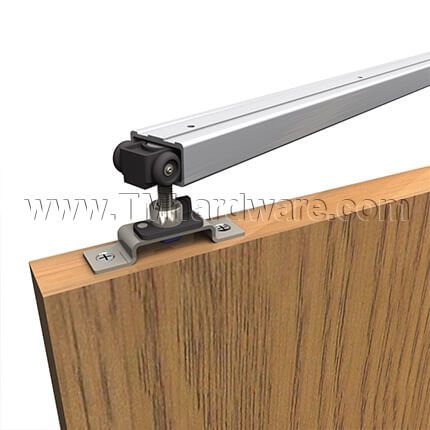

Carrier: Ball bearing carrier with 4 wheels for smooth and long lasting operation.
Carrier Mounting: Carriers are mounted to the top of the door.
Headroom: 1 27/32" (46.8 mm) minimum - 2 5/32" (54.8 mm) maximum.
Features:
- Doors fold flat for easy access.
- Unique design keeps door in hold open or hold closed position.
- Floor cam functions as marking template to keep top and bottom holes aligned, no measuring or floor guide needed.
Certifications: Meets and/or exceeds ANSI/BHMA standards.
Optional Components: Bottom Guide Channel (1222), Guide Roller (1221). To order, please contact us or call our office at (845) 388-1300.
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
For heavier door applications, see our Hettich Grant BF150 Bifold Door Hardware.
-
QuickShipNo
-
ManufacturerHettich
-
MPN1134347; 1135243
-
Product Options2 Door Hardware Set, 4 Door Hardware Set
See below for full product options. To order please contact us or call our office at 845-388-1300.
