Hettich TopLine Grant 1210 Sliding Hardware, For 1" Doors, 225 Lbs.
Hettich TopLine Grant Sliding Door Hardware for single doors 1" thick minimum and up to 225 Lbs. Used in heavy duty commercial and residential grade sliding door applications which require the movement of heavy panels, space dividers or large doors.
PRICED PER PACK
Set Includes:
- (2 ea.) Carriers 1202 ball bearing wheels
- (1 ea.) Floor Guide 7015Â
- All Fixing Screws
Applications: Heavy duty commercial and residential sliding door hardware for single door applications. Ideal for applications which require the movement of heavy panels, space dividers or large doors.
Door Weight: For doors up to 225 Lbs. (102 Kg.)
Door Thickness: For doors 1" (25.4 mm) thick minimum.
Track: Aluminum I-beam track sold separately. To order this set with track included see our Hettich TopLine Grant 1210 Sliding Door Hardware and Track.
Wheels: High quality precision ball-bearing wheels for smooth performance.
Carrier Mounting: Carriers are mounted to the top of the door. Two wheel carrier, center hung for efficient operation.

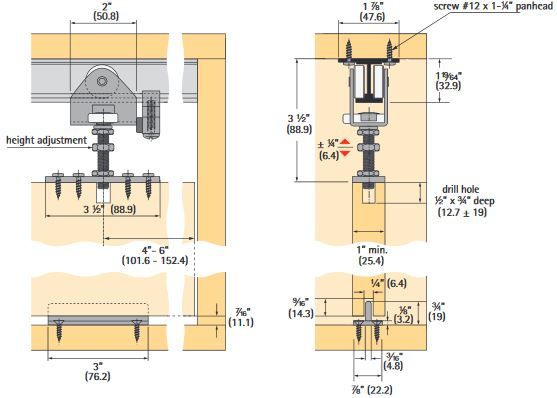

Headroom: 3 1/4" (82.5 mm) minimum - 3 3/4" (95.2 mm) maximum.
Certifications: Meets and/or exceeds ANSI/BHMA standards. Made in the USA.
Optional Components: Bumper stop (1212) and continuous floor guide (2014) are available. To order, please contact us or call our office at (845) 388-1300.
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
For doors up to 325 Lbs, see our Hettich TopLine Grant 1230 Sliding Door Sets.
