Hettich TopLine Grant 72-222 Sliding Hardware and Track, 3/4" Bypass Doors, 150 Lbs.
Hettich TopLine Grant Bypass Sliding Door Hardware and Track for Doors 3/4" thick and up to 150 Lbs. Top mounted with adjustable headroom option. Used in medium duty commercial and residential grade sliding door applications for doors between rooms, closet doors and partitions.
PRICED PER SET

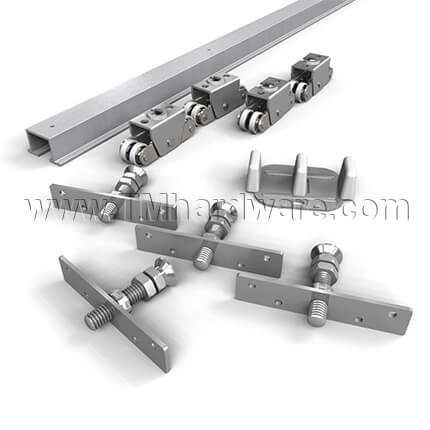

Set Includes:
- (1 ea.) Double Track 7002
- (4 ea.) Carriers 7000 ball bearing wheels
- (4 ea.) Top Plate 7222
- (1 ea.) Floor Guide 116
- All Fixing Screws
- Wrench
Product Options: Available in a choice of 48", 60", 72" and 96" Track Lengths. For longer track applications, order hardware set and track separately.
Applications: Medium duty commercial and residential sliding door hardware for bypass applications. Used on doors between rooms, closet doors, cabinets, storage walls and partitions.
Door Weight: For doors up to 150 Lbs.
Door Thickness: For 3/4" (19 mm) thick doors.

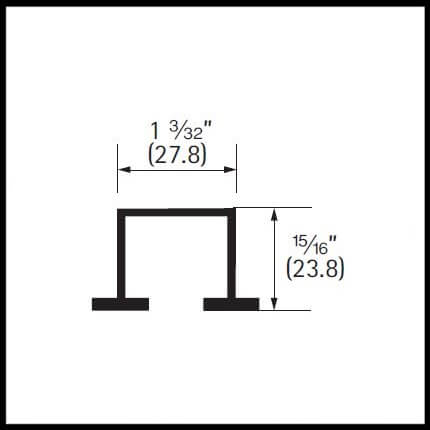

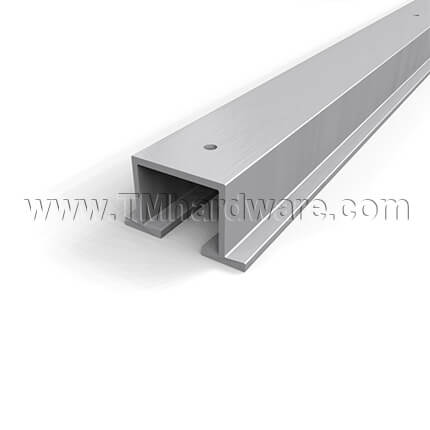

Track: Heavy duty, aluminum double I-beam track; jump proof design, pre-cut.
Wheels: High quality precision ball-bearing wheels for smooth performance.
Top Plate: Steel with pivoting rocker arms to ensure track-carrier contact. Lock nut ensures permanent positioning.

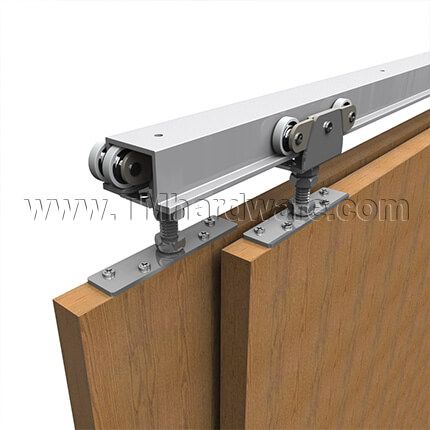

Track Mounting: Track is mounted to header.
Carrier Mounting: Carriers are mounted to the top of the door.
Headroom: 2 1/8" (53.9 mm) minimum - 2 7/8" (73 mm) maximum, ball and socket suspension compensates for minor header misalignment.
Certifications: Meets and/or exceeds ANSI/BHMA standards. Made in the USA.
Optional Components: Bumper stop (7014), Carrier (7000) for doors up to 100 Lbs. To order, please contact us or call our office at (845) 388-1300.
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
For thicker door applications, see our Hettich TopLine Grant 72-223 Sets for Doors 1 3/8" Thick.
-
QuickShipNo
-
ManufacturerHettich
-
MPN1133369; 1133370; 1133371; 1133372
- Dimensions
-
Door Panel Weight150 Lb Doors
-
