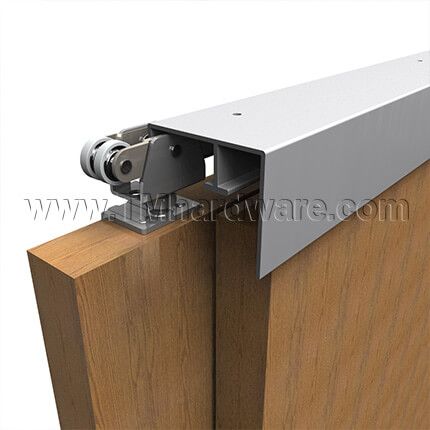

Hettich TopLine Grant 73-138 Sliding Hardware and Track with Fascia , Bypass 1-3/8" Doors, 150 Lbs.

Hettich TopLine Grant 73-138 Sliding Door Hardware and Track
Hettich

Hettich TopLine Grant 73-138 Sliding Door Set for Bypass Doors 1 3/8" thick and up to 150 Lbs. Used in medium duty commercial and residential grade sliding door applications for doors between rooms, closet doors and partitions. This innovative track includes an integrated fasica and is available in selection of lengths.

PRICED PER SET

See tabs below for additional information
    • SKU
      HT1133382
    • Starting price: Price: $275.85 per set

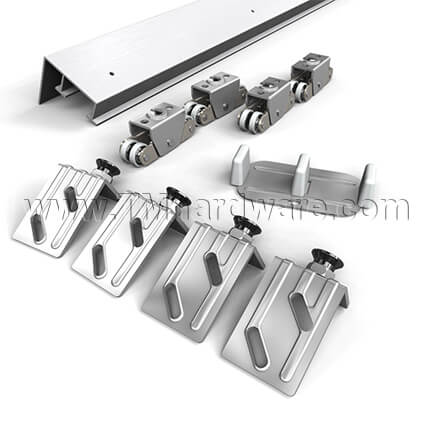

    Set Includes:

    Product Options: Available in a choice of 48", 60", 72" and 96" track lengths. For longer track applications, order hardware set and track separately. Tracks are available with and without fascia.

    Applications: Medium duty commercial and residential sliding door hardware for bypass applications. Used on doors between rooms, closet doors, cabinets, storage walls and partitions.

    Door Weight: For doors up to 150 Lbs.

    Door Thickness: For 1 3/8" (34.9 mm) thick doors

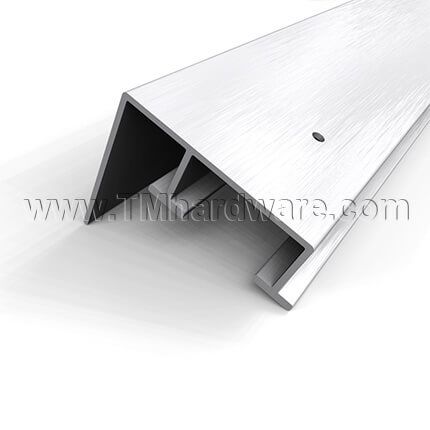

    Track: Heavy duty, aluminum double I-beam track; jump proof design, pre-cut.

    Fascia: 7005 track provided with 2 3/8" fascia with decorative anodized finish.

    Wheels: High quality precision ball-bearing wheels for smooth performance.

    Track Mounting: Track is mounted to header.

    Carrier Mounting: Carriers are side mounted to door surface.

    Headroom: 1 7/8" (47.6 mm) minimum - 2 1/8" (53.9 mm) maximum, serrations in apron permit vertical adjustment.

    Certifications: Meets and/or exceeds ANSI/BHMA standards.

    Optional Components: Bumper stop (7014), Carrier (7000) for doors up to 100 Lbs.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For thinner door applications, See our Hettich TopLine Grant 72-222 Bypass Door Sets.

      • SKU
        HT1133382
    • QuickShip
      No
    • Manufacturer
      Hettich
    • MPN
      1133364; 1133365; 1133366; 1133367; 1133382; 1133383; 1133384; 1133385
    • About This Product
      • Door Type
        Double Door
      • Door Material
        Wood Doors
      • Soft Close
        No
      • Mounting Type
        Overhead Mount
      • Door Mount
        Side Mount
      • Track Type
        I-Beam Track
      • System Type
        Bypass
      • Included Parts
        Track, Door Carriers, Aprons, Floor Guide, Installation Hardware
    • Dimensions
      • Height Adjustment
        1/4" Vertical
      • Door Panel Weight
        150 Lb Doors
      • Door Thickness
        1 3/8" Thick
      • Track Length
        48" Length, 60" Length, 72" Length, 96" Length
      • Height Clearance
        1-7/8" min, 2-1/8" Max Headroom
    • Compliance Details
      • Warranty
        1 Year Limited Warranty

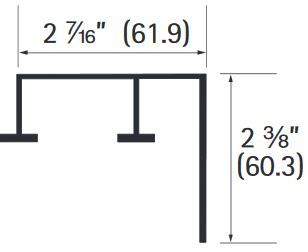

    7005 Track Dimensions:

    Hettich Grant 7005 Track Dimensions

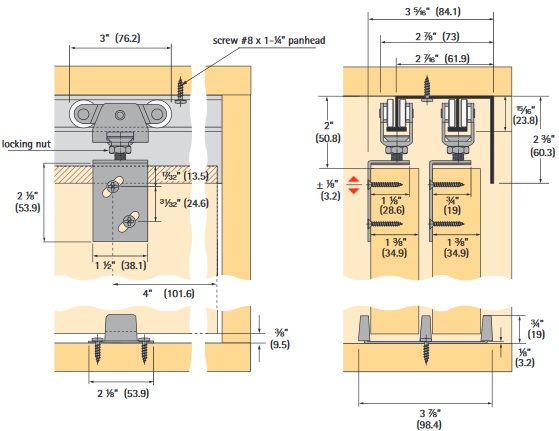

    73-138 Set Dimensions (with fascia):

    Click to print

    Hettich 73-138 Sliding Door Product Specs
