Hettich Wingline Grant 1262 Bi-Fold Door Set, 2 Panel Applications, 175 Lbs. Per Panel

Hettich Wingline Grant 1262 Bi-Fold Door Set, 2 Panel Applications, 175 Lbs. Per Panel
Hettich

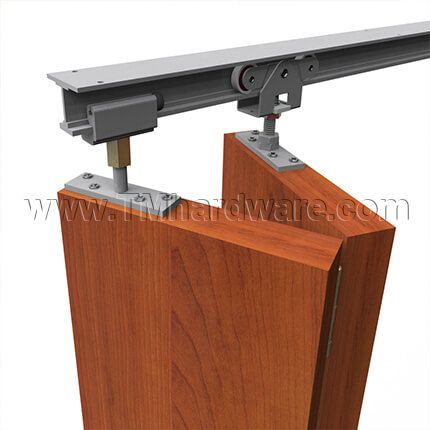

WingLine Heavy Duty Bi-Fold Door Series for Top Hung Doors. Set includes hardware for 2 door panels, 1" thick and up to 175 Lbs. Used in heavy duty residential and commercial bi-fold door applications.

Hinges not included.

See full product details and specs in the tabs below.

PRICED PER SET

See tabs below for additional information
    • Weight
      4.2 lbs
    • SKU
      HT1133285
    • Starting price: Price: $193.11 per set

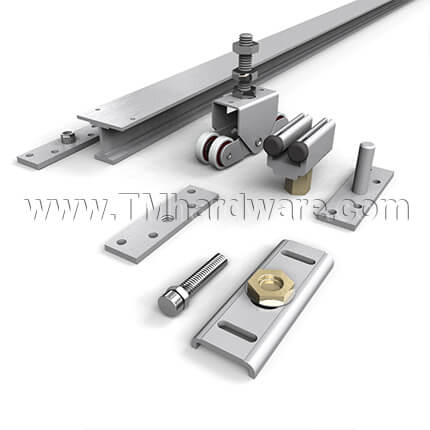

    Set Includes:

    • (1 ea.) Track (1201)
    • (1 ea.) Bearing carrier with pendant bolt and top plate (1205)

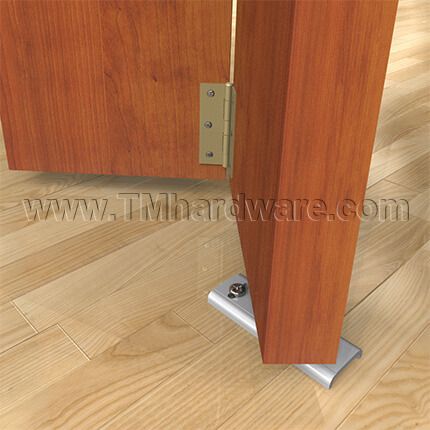

    • (1 ea.) Floor pivot bolt assembly (1223)
    • (1 ea.) Bottom pivot pin plate (1224)
    • (1 ea.) Bottom pivot plate assembly (1234)
    • (1 ea.) Top pivot clamp assembly (1255)
    • (1 ea.) Top pivot post assembly (1269)
    • Screws

    Applications: For 2 panel heavy duty door applications, residential and commercial. For 4 panel bi-fold door applications, see our Wingline Grant 1264 hardware set.

    Hinges: Not included.

    Door Thickness: 1" (25.4mm) Thick door panel minimum.

    Door Weight: 175 Lbs. (80 Kg.) maximum weight per panel.

    Design: Top hung folding door system.

    Track: Grant 1201 Single Track provided standard with a choice of lengths;  48" (1200mm), 72" (1800mm) and 96" (2400mm.)

    Carrier: Grant 1205 4 Wheel Carrier with precision ball bearing wheels provided standard.

    Certifications: Conforms to ANSI/BHMA standards

    Header Clearance: 3 1/4" (82.5 mm) minimum, 3 3/4" (95.2 mm) maximum. Can be adjusted to 1/2" (12.7 mm) vertical.

    Installation: Pre-drilled track for ease of installation.

    Additional Customization Options: These products can be ordered as full Bi-fold Kits or as individual components. To order please contact us or call our office at 845-388-1300.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    See our Hettich Grant 1264 Bi-Fold Door Sets for 4 Panel Applications.

      • Weight
        4.2 lbs
      • SKU
        HT1133285
    • QuickShip
      No
    • Manufacturer
      Hettich
    • MPN
      1133285; 1133286; 1133287
    • Length
      48" Track Length #1133285, 72" Track Length # 1133286, 96" Track Length #1133287
