Pemko #309NB Door Sweep and Perimeter Gasket, .875" Aluminum with .375" Nylon Brush

This aluminum door gasket and door bottom sweep has a nylon insert which will seal gaps around your door to prevent infiltration of air, smoke, fire, drafts and insects. Available in a selection of aluminum finishes and is custom cut to size.

PRICED PER FOOT

See tabs below for additional information

Size
Finish

Quantity

Add to compare

This aluminum door seal can be applied as a door bottom sweep or a perimeter door gasket. The nylon insert compresses easily to create a seal that will prevent infiltration of smoke, fire, fumes, air, drafts and insect through the gap around doors. High quality bristles create a strong seal while ensuring low closing force.

As a door bottom sweep, it can fill gaps of .5". When used as a door gasket application, it is designed to seal up to 1/4", however it can seal up to the depth of its seal. The casing is punched with elongates slots for easy adjustment once it is installed.

Installation instructions and screws provided.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

Also available with softer brush, see our Pemko #309P Pile Brush Door Bottom.

- SKU
  PK309AN
QuickShip
No
Manufacturer
Pemko Manufacturing
About this Product
- Door Shoe Retainer Material
  Aluminum
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Nylon Brush Seal
- Mounting
  Surface Mounted

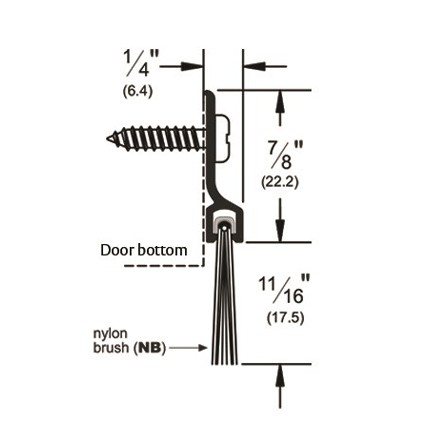

Dimensions
- Seal Height
  11/16" Height
- Total Height
  1-9/16" Height
- Additional Dimensions
  Door seal is 1/4" thick
- Length
  Custom Cut to Size
Installation
- Drill Holes
  Drill holes are provided
- Installation Screws
  Standard screws provided
Finishes
- Finish
  Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313), White Suede Powder Coat
Compliance Details
- Compliance Details
  UL Classified, Fire Rated, Smoke Rated
- Warranty
  5 Year Limited Warranty

Click to Print Product Specs 122.6 kB

Click to Print

P309 Product Specs:

Click to View our Ratings Explained

Finishes Comply with the Following ANSI / BHMA Codes:

Aluminum Mill Finish - US27 / 719
Clear Anodized Aluminum - US28 / 628
Dark Bronze Anodized Aluminum - US10B / 710
Bright Dip Gold Anodized Aluminum - US3 / 707
Gold Anodized Aluminum - US4 / 688
Satin Nickel Anodized Aluminum - US15 / 619
Painted White Aluminum - 714
