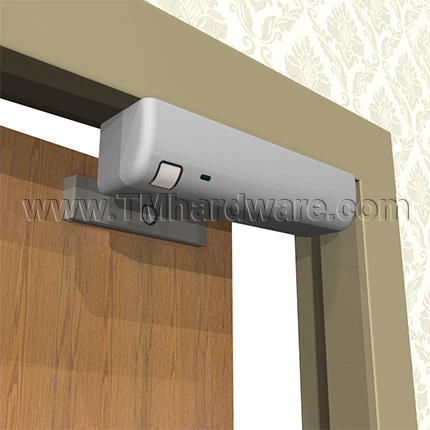

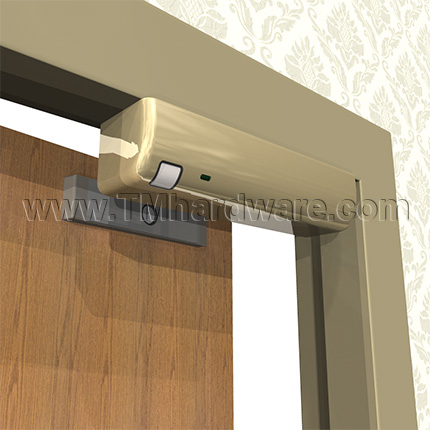

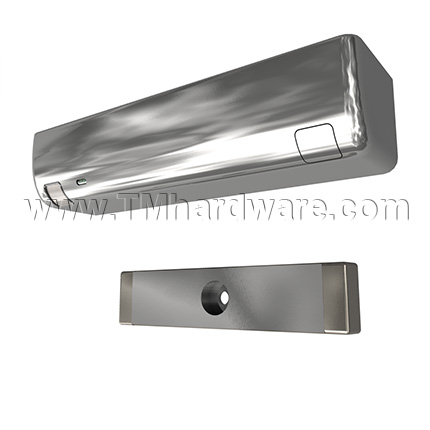

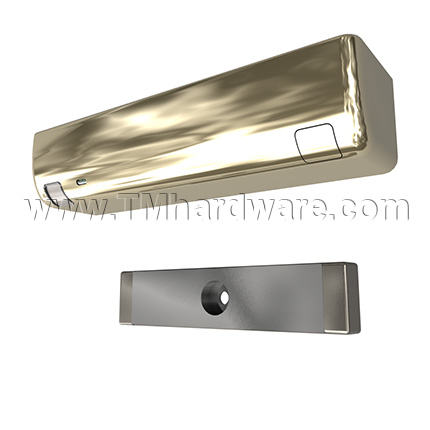

Securitron M380E EcoMag Series Magnalock, Electronic Lock

The M380EBD Magnetic Door Lock is part of the sustainable Magnalock Family of Securitron. This model can hold a force for up to 600 lbs. while having a very low power usage. It can also be integrated into Securitron's patented BondStat lock sensor, Door Positioning switch, built-in door prop sensing, and a passive infrared request to exit.

Features:

• BondStat - Securitron's patented technology for door positioning switches that indicates whether the door is open or closed. It also notifies your access control or alarm system that the door is accurately secured.
• Energy Efficient - have low power usage
• LED Indicator - shows the lock is secured, open, or has an incomplete bond
• Tamper Switch - sends an alarm if the cover is removed and is selectable to NO or NC
• Rust Resistant - all ferrous metal surfaces plated for durability
• Adjustable automatic relock timer (0 to 30 seconds)
• Wire chamber anti-tamper switch
• Size optimized for use with door closers

Optional Feature:

• Integrated Passive Infrared Sensor Request to Exit - detects approaching people, so the door unlocks for exit

Specifications:

• Holding Force:  600 lbs (272kg)
• Operating Temperature:  32° to 110°F (0° to 43°C) *for indoor use only
• Electrical Consumption:
  • Maglock Average Power Draw (±10%) :   140 mA at 12 VDC, 90 mA at 24 VDC
  • Maglock Maximum Power Draw (±10%) : 585 mA at 12 VDC, 310 mA at 24 VDC
  • REX Power (±10%) : Adds 25 mA at 12 VDC ,  Adds 10 mA at 24 VDC

Certifications:

• UL 10C Fire Rated, 3 hour
• UL 1034 Listed
• UL 294 Listed
• CAN4-S104, CAN/ULC Listed
• ANSI/BHMA A156.23, Grade 3
• CSFM—California State Fire Marshal Approved

PRICED PER UNIT

This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.
