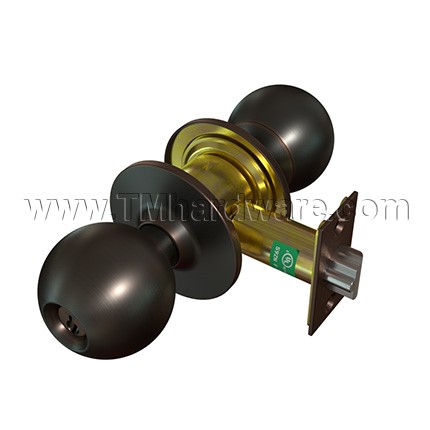

Yale 5407CK Entry Knob, Carolina Knob, Grade 1 - Custom Options

Designed for industrial, commercial and institutional markets  use, the Yale 5407CK Cylindrical Grade 1 Entrance or office knob is an ideal choice for doors requiring locking with keyway . The 5407CK is certified to ANSI/BHMA Grade 1 standards and is 3 hour UL Fire Rated.

Click here to See Yale 5400 Grade 1 Catalog.

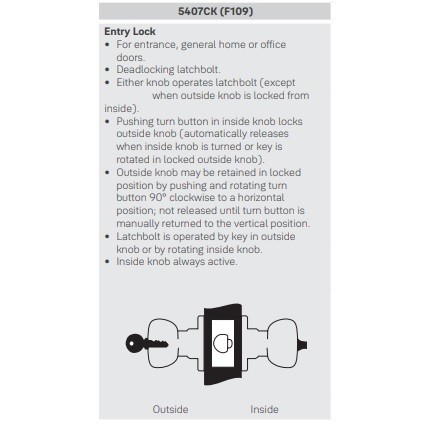

5407CK Function - Entrance or office:

• For entrance, general home or office doors.
• Deadlocking latchbolt.
• Either knob operates latchbolt (except when outside knob is locked from inside).
• Pushing turn button in inside knob locks outside knob (automatically releases when inside knob is turned or key is rotated in locked outside knob).
• Outside knob may be retained in locked position by pushing and rotating turn button 90° clockwise to a horizontal position; not released until turn button is manually returned to the vertical position.
• Latchbolt is operated by key in outside knob or by rotating inside knob.
• Inside knob always active.

Features:

• Handing: Field reversible for ease of ordering and installation

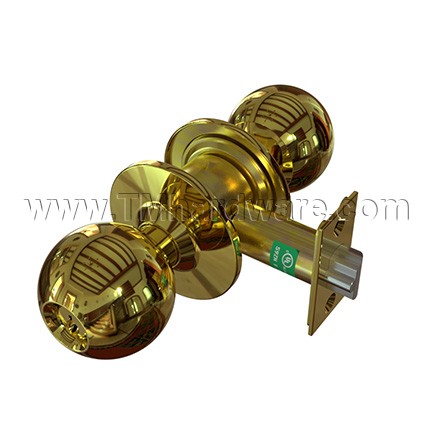

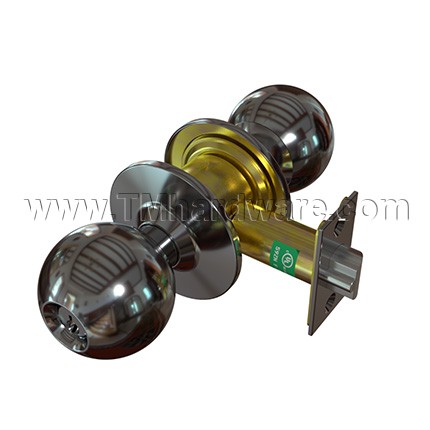

• Finish: selection of finishes available, select above

Specifications:

• Backset: 2-3/4" Standard
• Door Thickness: Adjustable from 1-3/8" to 2"
• Handing: Non Handed
• Latchbolt: 1/2" Throw
• Strike: 1-1/4" curved lip for 1-3/4"

See SPECIFICATION tab for additional information.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 10years guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

For a more economical options, see our Yale 5407LN Grade 2 Entry Knob, Carolina Knob
