Pemko #93518AW Adjustable Height Threshold, Wood Top with Aluminum Slope, 1.125” H, 3.75” W - 36" Long

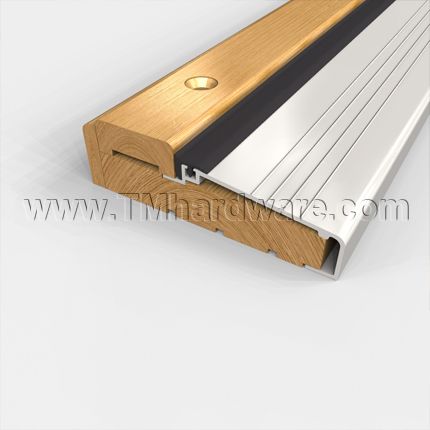

Adjustable Height Thresholds make it possible to tightly seal beneath-the-door gaps despite uneven door bottoms and sub-sill level changes. The solid wood base has an aesthetic wood cap. An aluminum slope contributes superior stability and long-lasting reliability. Available in aluminum mill finish and dark bronze anodized aluminum finishes.
Threshold is 36" long.
PRICED PER ITEM
This aesthetic wood capped and aluminum adjustable height threshold can be adapted .25” in height to accommodate uneven door bottoms and sub-sill level changes.

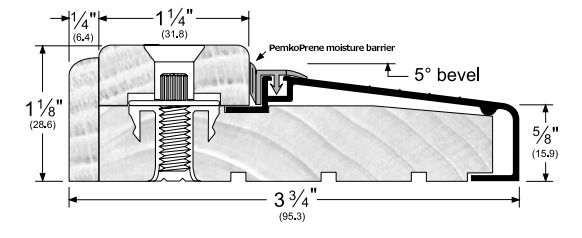

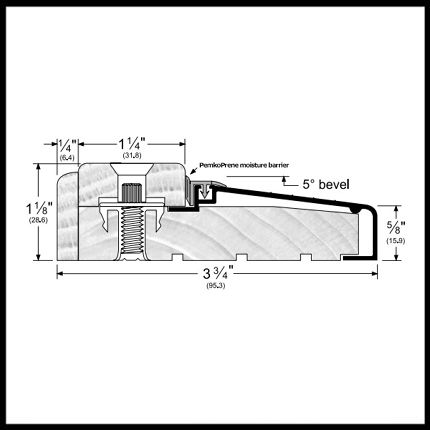

The adjustable mechanism comprises of a two-part zinc plated steel stud shoulder screw which joins a long-barreled, zinc plated steel T-nut for increased stability (see product specs).
A PemkoPrene™ moisture barrier between the adjustable wood cap and the adjacent sloped aluminum extrusion (see product specs) prevents water intrusion. Sloped aluminum extrusion is grooved to prevent slipping.
Key Features of this Product:
Dimensions: 1.125” in height and 3.75” in width. Can be adjusted up to .25” additional height for best seal. Slope has a 5˚ bevel.
Compatibility: Residential Sills are designed specifically for compatibility with the pre-hung door market. Can be used for standard door applications as well. Sills are for use with standard 4.625" jamb width.
Materials and Finishes: Available in aluminum mill finish, and dark bronze anodized aluminum.
Installation: Threshold is furnished un-drilled and without screws or nails. If threshold is being drilled into concrete, an Expansion Anchor is recommended.
Available Lengths: This product can be custom cut to size.
- Adjustable Height Threshold
- Wood cap provides aesthetic upgrade
- PemkoPrene moisture barrier
- 1.125” H, 3.75” W
- Compatible with pre-hung application
- Ridged to prevent slipping

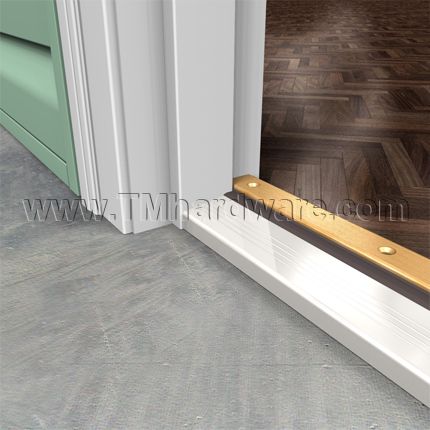

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
A wider version of this threshold is available, see our Adjustable Height Threshold, Wood Top with Aluminum Slope, 1.125” H, 4.875” W
-
QuickShipYes
-
ManufacturerPemko Manufacturing
-
MPN93518-W
- Dimensions
-
Overall Height1.125” Height
-
Overall Width3.75" Width
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeAdjustable Height Threshold
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27)
-
- Compliance Details
-
Warranty5 Year Limited Warranty
-
