Deltana #PH35 Knife Pivot Hinge, Solid Brass, For Doors up to 35 LB
Deltana PH35 Door Pivot Hinge Set is made of Solid Brass. Size of hinges is 3-7/8" X 5/8" X 1-5/8" and is designed for use on Doors up to 35LB. When installing on larger doors it can be used together with the Deltana Intermediate Hinge. Available in choice of finishes.
PRICED PER PAIR - See full product details and specs in the tabs below
Delatana PH35 Door Pivot Hinge Key Features:
When installing on larger doors it can be used together with the Deltana Intermediate Hinge.

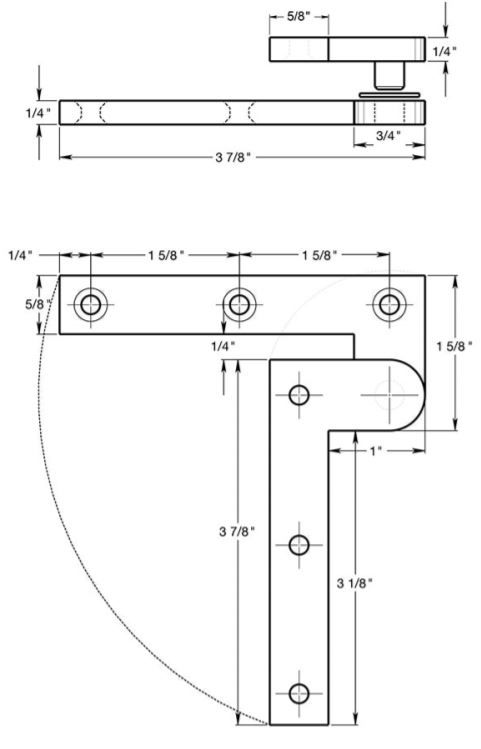

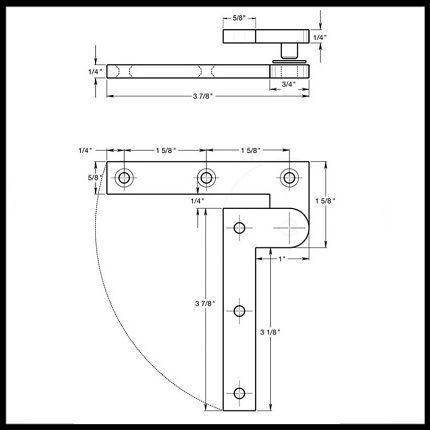

Size: 3-7/8" X 5/8" X 1-5/8"
Thickness: .250"

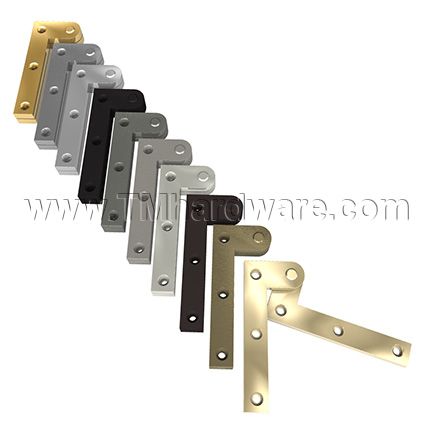

Available Finishes: See options above, see Deltana Hinges Color Chart for a detailed list of all Deltana Finishes.
Material: Solid Brass
Installation Screws:Â Wooden Screws #10x1" Provided
Maximum Load: 35 lb
Priced per pair
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year warranty against defects in material and workmanship
Click to see our Full Warranty Policy.
For a larger hinges, see our Deltana PH40 Door Pivot Hinge.
-
QuickShipYes
-
ManufacturerDeltana Hardware
-
MPNDPH35
- Finishes
-
FinishPolished Brass (US3), Antique Brass (US5), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Antique Nickel (US15A), Flat Black (US19), Polished Chrome (US26), Satin Chrome (US26D), PVD Polished Brass
-
All finishes comply with BHMA / ANSI Codes
- Polished Brass US3 / 605
- Unlacquered Brass US3-UNL / 605
- Antique Brass US5 / 609
- Oil-rubbed Bronze US10B / 613
- PVD Polished Brass CR003
- Polished Nickel US14
- Brushed Nickel US15 / 619
- Antique Nickel US15A / 620
- Painted Black US19 / US22
- Polished Chrome US26Â / 625
- Brushed Chrome US26D / 626
