Pemko #2892 Door Gasket, 1.5" Heavy Duty Aluminum for Header with Eco-V Vinyl Bulb Seal
This Heavy Duty Door Gasket is fitted with a Eco-V Vinyl Bulb seal with fingers which seals the gaps around the door to prevent infiltration of light, dust, drafts, moisture, sound and insects. The door gasket is designed to be applied to the Header only, see below for corresponding jamb piece. Available in two aluminum finishes and is custom cut to size.
PRICED PER FOOT.
This Heavy Duty Door Gasket is fitted with a high quality Eco-V Vinyl bulb seal which seals the gaps around the door to prevent infiltration of light, dust, sound, drafts, moisture and insects. This door gasket is a heavy duty model, which has thicker extrusions and can handle greater traffic frequency than our standard Rubber Door Gasket models, ideal for commercial applications.
Design: This model is specifically designed for the headers of doors where parrallel arm closer brackets or other door hardware will be used.
Corresponding Jamb Piece: Sold separately, see our Heavy Duty Door Gasket with Eco-V Bulb Seal for Jambs.

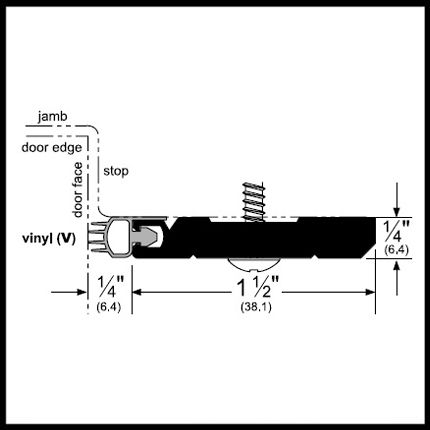

Casing Dimensions: 1.5" x .25" (1-1/2" x 1/4") x Custom Length.
Seal: Casing is fitted with an Eco-V Vinyl bulb seal with extruded fingers. The additional fingers aid in sealing by compensating for slight misalignment of door, due to poor installation or natural warping. Eco-V is comparable to vinyl, though it is a newer, greener and more environmentally friendly version. It surpasses the quality and durability of standard vinyl, resulting in a longer service life and less need for replacement.
Compliance: Door Gasket is rated for air infiltration and fire, is UL Listed and complies with GreenGuard Gold certification. See product data tab for more details.

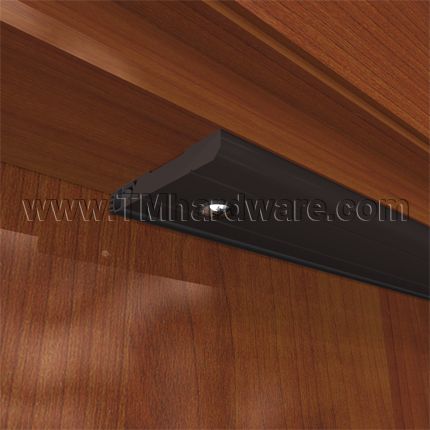

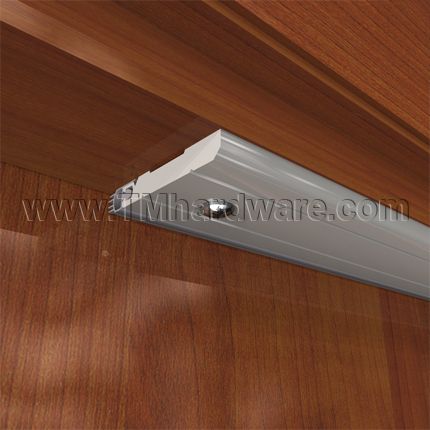

Installation: Designed to be surface mounted to the stop of the door. See Installation Guide. Sheet Metal Screws are only supplied if drilling is requested above. #10 Countersunk screw holes with flat head machine screws can also be provided if required. Please contact us or call us at 845-388-1300 to place order.
Drilling: Product can be pre-drilled for easy installation if requested, select from options above. This product can be easily drilled on site if necessary.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click to view Full Warranty Policy.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN2892V
-
DrillingStandard Drilling Required, None Required
- Finishes
-

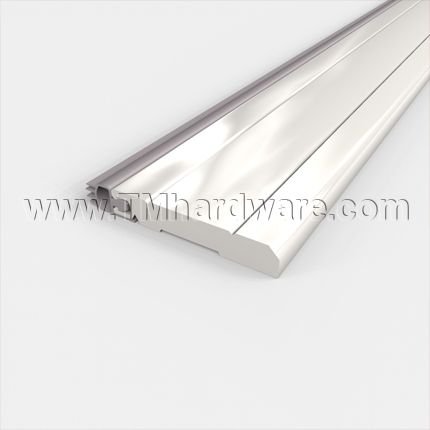

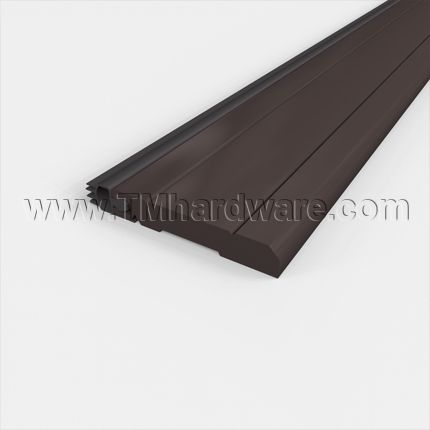

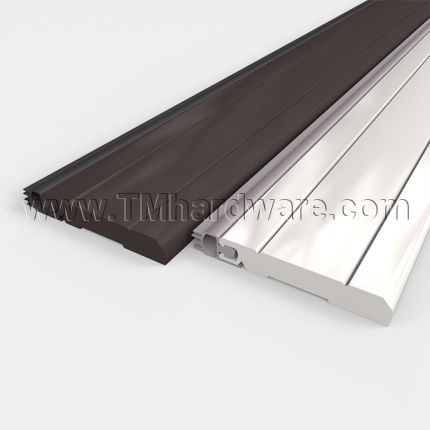

FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
-

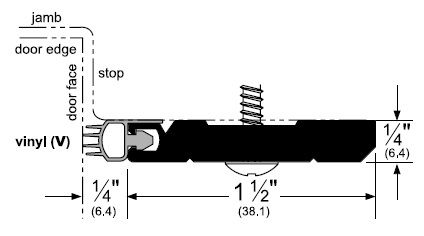

P2892 Product Specs:
NOTE, Drilling and screws are only supplied unless requested.
This Door Gasket is designed for the header of the door.
For corresponding jamb piece, see our Heavy Duty Door Gasket with Eco-V Bulb Seal for Jambs.
Click to View Ratings Explained
Finishes Comply with the Following ANSI / BHMA Codes:
- Aluminum Mill Finish - US27 / 719
- Dark Bronze Anodized Aluminum - US10B / 710
