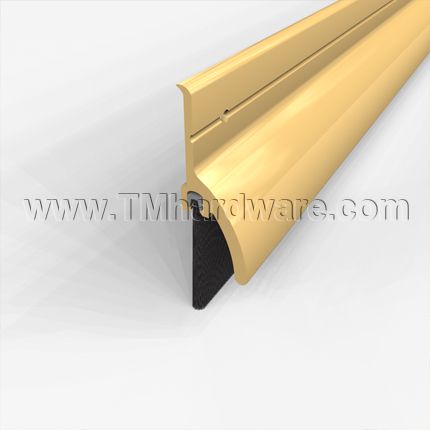

Pemko #345NB Door Sweep, Aluminum Rain Drip with 1" Nylon Brush

This door bottom sweep is great for the outdoors. The high quality aluminum casing has a rain drip design which deflects water and prevents seepages through the gap under doors. It has a nylon brush seal which reduces infiltration of drafts, moisture, air and dust. Available in many finishes and is custom cut to size.

PRICED PER FOOT.

Need it sooner? Select sizes and finishes are in stock, ready to ship within 1 business day. See our Pemko #345NB Rain Drip Door Sweep -Quick Ship.

See tabs below for additional information
    • SKU
      PK345ANB
    • Market price:$15.12
      • save 15%
    • Starting price: Price: $12.86 per foot


    This door bottom sweep is great for the outdoors. Its casing has a rain drip design which deflects water and prevents seepages through the gap under doors. It is made of heavy duty aluminum which will last through many usages.

    The seal is made of a 1" high quality type 6 nylon brush seal, which will reduce infiltration of air, drafts, moisture and dust. The densely packed bristles remain flexible in extreme weather and conform well to surface irregularities. It is surface mounted to the face of the door.

    Installation instructions and screws provided.

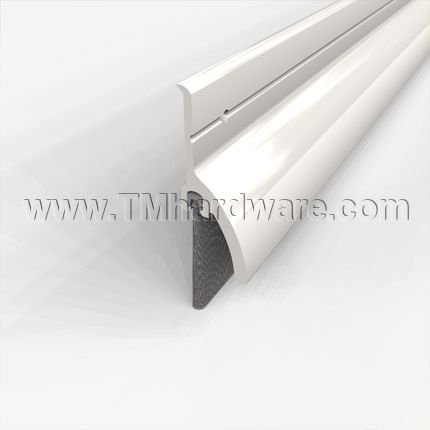

    Inserts: Aluminum Mill Finish is supplied with a gray brush while all other finishes are supplied with a black brush. To request other combinations, contact us or call us at 845-388-1300.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year warranty against defects in material and workmanship.
    Click here to view our full Warranty Policy.

    For a smaller casing and brush size see Aluminum Rain Drip with .82" Nylon Brush.

      • SKU
        PK345ANB
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      345NB
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Nylon Brush Seal
      • Mounting
        Surface Mounted
    • Dimensions
      • Seal Height
        7/16" Height
      • Total Height
        1-1/2" Height
      • Additional Dimensions
        Door seal is 9/16" thick
      • Length
        Custom Cut to Size
    • Installation
      • Drill Holes
        Drill holes are provided
    • Special Features
      • Rain Drip Cap
        Yes

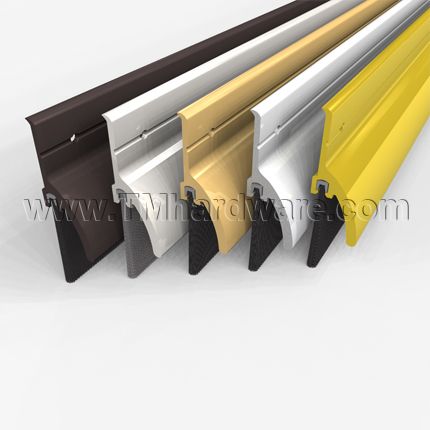

    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Oil Rubbed Bronze, Equiv. (10BE), White Suede Powder Coat, Black Suede Powder Coat
    • Compliance Details
      • Compliance Details
        Smoke Rated, Fire Rated, GreenGuard Gold Certified, BHMA Certified
      • ANSI Designation
        R3A534
      • Warranty
        5 Year Limited Warranty

    Click to View Ratings Explained

    Finishes Comply with the Following ANSI / BHMA Codes:

    • Aluminum Mill Finish - US27 / 719
    • Dark Bronze Anodized Aluminum - US10B / 710
    • Bright Dip Gold Anodized Aluminum - US3 / 707
    • Gold Anodized Aluminum - US4 / 688
    • Painted White Aluminum - 714
