Pemko #18175 Door Sweep, 1.375" Aluminum Casing with 1.75" Nylon Brush
This Door Sweep is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. Casing measures 1.375" H, while brush portion has a height of 1.75". Available in various anodized finishes and is custom cut to size.
PRICED PER FOOT - see product specs and details in the tabs below.

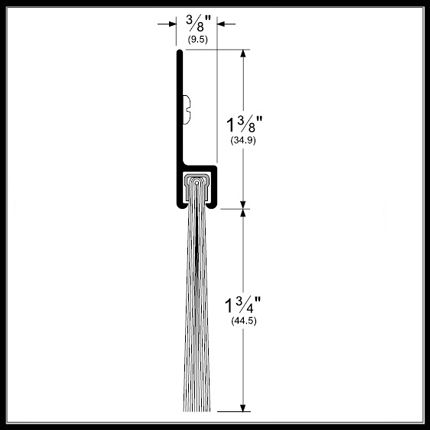

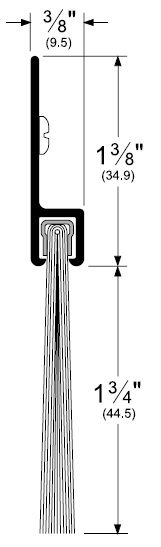

This Door Sweep is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. Casing measures 1.375" H, while brush portion has a height of 1.75".
Installation: Installation instructions and screws provided. Screws are colored to coordinate with casing.
Installation Holes: This item is drilled with slotted holes to allow for easy installation
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
For larger sized brush see our Door Sweep, 2.5" Nylon Brush.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN18175NB
- About this Product
-
Door Shoe Retainer MaterialAluminum
-
Temperature Range-40° F to 400° F
-
Door TypeWooden Door, Metal Door
-
Seal TypeNylon Brush Seal
-
MountingSurface Mounted
-
- Dimensions
-
Seal Height1-3/4" Height
-
Total Height3-1/8" Height
-
Additional DimensionsDoor seal is 3/8" thick
-
LengthCustom Cut to Size
-
- Finishes
-
FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Flat Black (US19)
-
- Compliance Details
-
Compliance DetailsSmoke Rated, Fire Rated, BHMA Certified, UL Classified
-
ANSI DesignationR3A434
-
Warranty5 Year Limited Warranty
-
Click to View Ratings Explained
Finishes Comply with the Following ANSI / BHMA Codes:
- Clear Anodized Aluminum - US28 / 628
- Dark Bronze Anodized Aluminum - US10B / 710
- Gold Anodized Aluminum - US4 / 688
