Hager 451/452, Double Lipped Strike for Center Hung Doors
Mortised architectural double lipped strike plate for center hung doors, by Hager Companies. Allows doors to swing in both directions without damaging the frame. Base material is brass. Two sizes available in Satin Chromium Plate.
PRICED PER PIECE - See full product details and specs in the tabs below
See Hager Hinges Color Chart for a detailed list of Hager finishes.

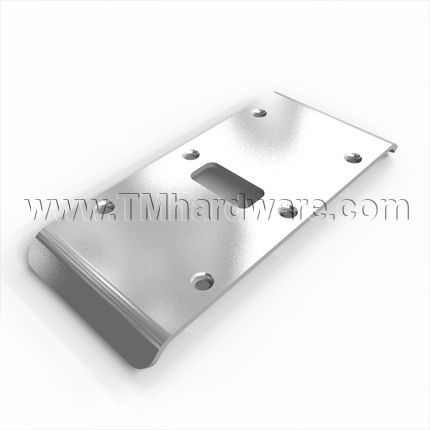

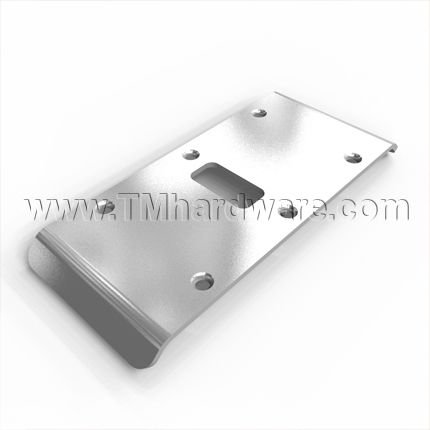

This high quality Architectural strike plate, manufactured by Hager Companies, is double lipped for center hung doors.
-
Double Lipped Strike: This strike is to be used with Hager 600/611/612 pivots and door release. Allows doors to be opened in both directions without damaging the frame.
-

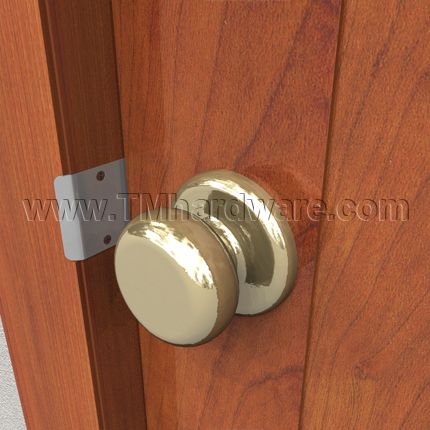

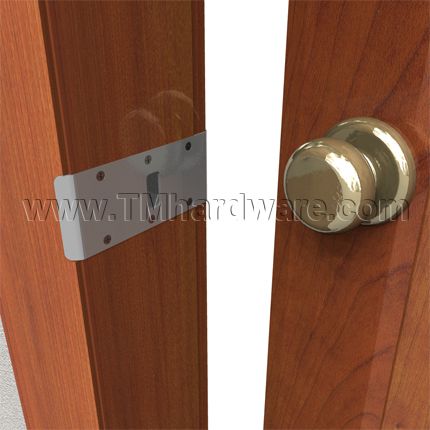

Center Hung Doors: This strike is for doors installed in the center of the door jamb.
-

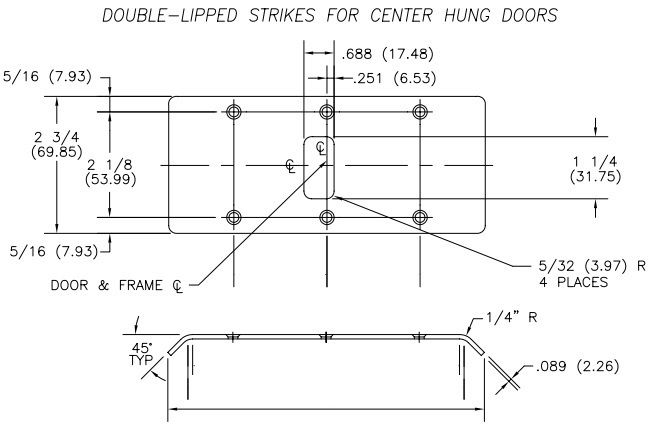

Dimensions: (charts)
Face Plate | Guage of Metal | Hole Count | Screw Size | |
Inches | mm | |||
5-3/4 x 2-3/4 | 146 x 70 | 0.093 | 6 | 1/2 x 8-32 FH |
6-3/4 x 2-3/4 | 171 x 70 | 0.093 | 6 | 1/2 x 8-32 FH |
-
Finishes Available: Satin Chromium Plated-US26D (BHMA Standards) Complies with ANSI A5702.
-
Materials: Brass
-
Standard latchbolt cutout is 1-1/4" x 11/16"
-
Standard strike plates are optimized for cylindrical locks/latches mounted on 1-3/4" thick doors.
-
Mortise lock applications require special latch cutout location (consult specific manufacturers for variations of cutout dimensions).
-
For use with Camtrol double acting pivot.
-
Custom colors available. For details and pricing please contact us or call us at 845-388-1300.
-
May be used on listed fire rated or labeled door openings.
-
Installation screws provided.
-
Priced per piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
Click here to view an Antique Bronze Oiled Hinge.
To view all Hager pivots, see How to Choose an Architectural Pivot Hinge.
