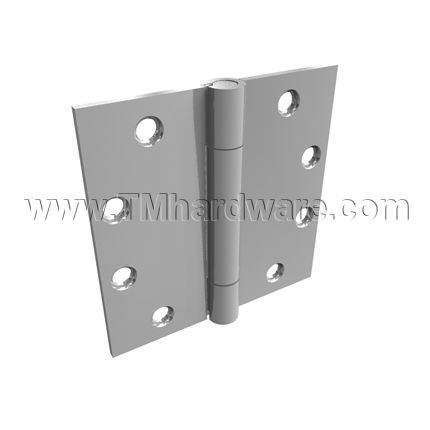

Hager 700, Door Hinge, Plain Bearing, Steel, Standard Weight, 3 Knuckle, All Sizes
Door Hinge, Hager 700 Full Mortised, Three Knuckle, Plain Bearing. Standard weight for use with medium weight doors or doors of low frequency service. Hinge made of steel with steel pin. Available in many sizes and finishes.
PRICED PER PIECE - See full product details and specs in the tabs below
Hager 700 Full Mortised, Three Knuckle, Plain Bearing, Architectural Hinge. Standard weight for use with medium weight doors or doors of low frequency service.
Available sizes:
Hinge Size | Gauge of Metal | Hole Count | Screw Size | ||
Inches | mm | Machine | Wood | ||
3-1/2" x 3-1/2" | 89 x 89 | 0.119 | 6 | 1/2 x 10-24 | 1 x 9 |
4" x 4" | 102 x 102 | 0.129 | 8 | 1/2 x 12-24 | 1-1/4 x 12 |
4-1/2" x 4" | 114 x 102 | 0.134 | 8 | 1/2 x 12-24 | 1-1/4 x 12 |
4-1/2" x 4-1/2" | 114 x 114 | 0.134 | 8 | 1/2 x 12-24 | 1-1/4 x 12 |
5" x 4" | 127 x 102 | 0.145 | 8 | 1/2 x 12-24 | 1-1/4 x 12 |
5" x 4-1/2" | 127 x 114 | 0.145 | 8 | 1/2 x 12-24 | 1-1/4 x 12 |
5" x 5" | 127 x 127 | 0.145 | 8 | 1/2 x 12-24 | 1-1/4 x 12 |
Available Finishes: See options above, See Hager Hinges Color Chart for a detailed list of Hager finishes.
Custom colors available. For details and pricing please contact us or call us at 845-388-1300.
Hinge is provided with a non-rising removable pin. The pin does not rise out of the barrel, yet it is removable which allows the pin to be taken out for the dismantling of the door without unscrewing the entire hinge. The pin and plug are flush with the hinge body.
Additional Option: Reverse Safety Stud Feature: This feature is intended to keep the hinge locked in place from abuse of battering or destruction of the hinge and screws. It is primarily used in prisons and psychiatric areas. See Options Tab for pricing and more information.
Priced per piece

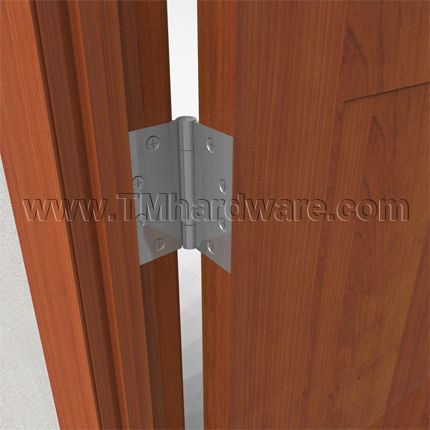

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Data Tab for exact measurements.
This product has a lifetime guarantee against defects in workmanship and materials.
Click to view our Full Warranty Policy.
Click here to return to our Hager, Door Hinge, Three Knuckle Category.
-
QuickShipNo
-
ManufacturerHager Companies
-
MPN700
- Product Design
-
Hinge CategoryFull Mortised Hinge
-
Base MaterialSteel
-
Usage LevelStandard Duty
-
ThrowStandard Throw
-
Bearing TypePlain Bearing
-
Knuckles3 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes8 Holes
-
- Dimensions
-
Hinge Size3-1/2" x 3-1/2", 4" x 4", 4-1/2" x 4", 5" x 4", 5" x 4-1/2", 5" x 5", 4-1/2" x 4-1/2"
-
Hinge ThicknessSee Dimensions Chart
-
- Installation
-
Door TypeWooden Door, Metal Door
-
Installation ScrewsInstallation Screws Provided Accordingly:
4-1/2" x 4-1/2" Hinge: All metal screws and all wood screws
4-1/2" x 4": All machine and all wood screws provided
3-1/2" Hinge: All wood screws and half metal screws
4" Hinge: All wood screws and half metal screws
5" Hinge: All metal screws and half wood screws
Additional screw packs can be provided if listed in order comments before completing purchase.
-
- Additional Options - Purchase Through Our Office
-
Reverse Safety Stud FeatureYes
-
- Finishes
-
FinishLuma Sheen Aluminum, Painted, Prime Coat (USP), Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Antique Bronze (US10A), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Satin Chrome (US26D)
-
- Compliance Details
-
Compliance DetailsBHMA Certified
-
ANSI DesignationA8133, A156.18
-
WarrantyLifetime Limited Warranty
-
Click to print 3-1/2" Hinge Template
Click to print 4" Hinge Template
Click to print 4-1/2" Hinge Template
Click to print 4-1/2" Reverse Safety Stud Hinge Template
Click to print 5" Hinge Template
Click to print 5" Reverse Safety Stud Hinge Template

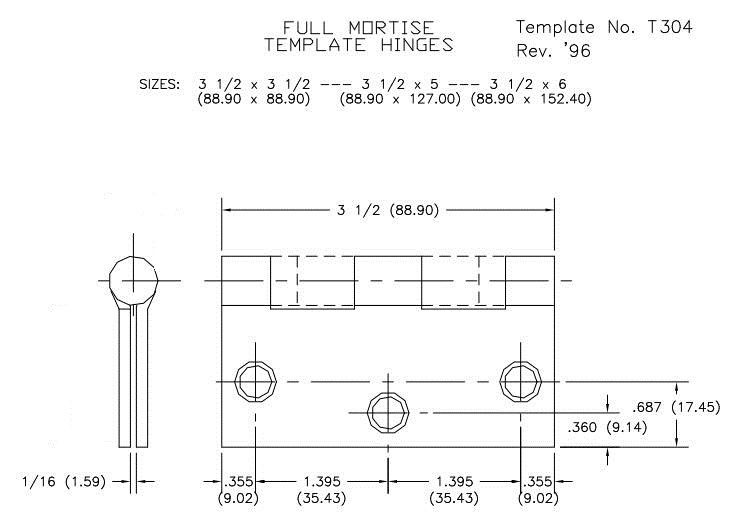

3-1/2" Hinge Template. Select links above for additional templates.
Reverse Safety Stud |
||
The Reverse Safety Stud (RSS) 7/16" projection is a feature that has a stud projecting from both leaves into the reinforcing plate of both the frame and the door. It is intended to keep the hinge locked in place from abuse of battering or trying to shear the hinges and screws. This feature is primarily used in prisons and psychiatric areas. |
