Hager AB7506 - AB7508, Concealed Anti-Friction Bearing, Steel, Heavy Weight, 3 Knuckle, Anchor Hinge with 2 Anchor Leaves

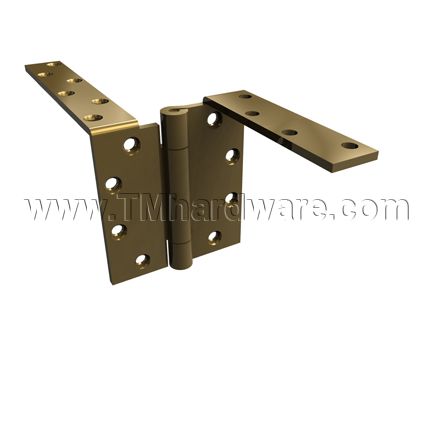

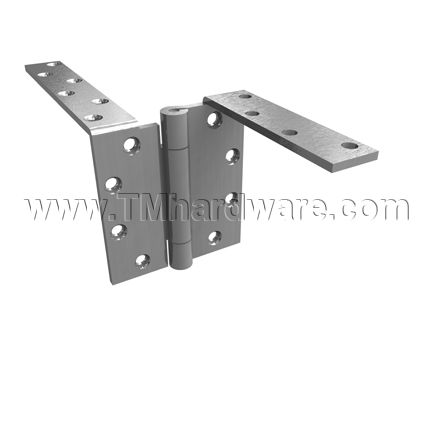

Full Mortise architectural anchor hinge with two anchor leaves and three knuckles, by Hager Companies. Hinge is concealed anti-friction bearing and heavy weight for use on heavy weight doors receiving high frequency service. Size of hinge is 5" x 4-1/2" and there are a variety of finishes available.
PRICED PER PIECE - See full product details and specs in the tabs below
See Hager Hinges Color Chart for a detailed list of Hager finishes.
This commercial grade Architectural hinge, by Hager Companies, is a full mortise anchor hinge with one anchor leaf screwed to the frame and one to the top of the door. It is a three knuckle, concealed anti-friction bearing hinge and heavy weight. HAB7506 is for square edge doors. HAB7508 is for beveled edge doors.
Must be used with one pair heavy weight, full mortise hinges (AB750Â or AB850)-sold separately.
Hinge Size: 5" x 4-1/2"Â
Hinge Size | Gauge of Metal | Hole Count | Screw Size | ||
 Inches |  mm   |  Machine |  Wood | ||
 5" x 4-1/2" |  127 x 114 |  0.190 |  18 |  1/2 x 12-24 |  1-1/4 x 12 |
Hinge is provided with a non-removable pin (NRP). Pins which have a groove milled into them. A set screw is inserted through the middle knuckle into the groove. This way the pin, hinge and door cannot be removed by burglars and the like. Pin and plug are flush with each other.
- Handed: This hinge is available for right handed or left handed doors, specify when ordering. Click here to learn How to Determine Handing.
- Custom colors available. For details and pricing please contact us or call us at 845-388-1300.
Priced per piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs tab for exact measurements.
This product has a lifetime guarantee against defects in workmanship and materials.Â
Click here to view a Stainless Steel Anchor Hinge.
To view all hinges in this category, see How to Choose a 3 Knuckle Anchor Hinge.
-
QuickShipNo
-
ManufacturerHager Companies
-
MPNAB7506/AB7508
-
HandingLeft Handed, Right Handed
-
Door Edge TypeSquare Edge Doors, Beveled Edge Doors
- Product Design
-
Hinge CategoryAnchor Hinge, Full Mortised Hinge
-
Base MaterialSteel
-
Usage LevelHeavy Duty
-
ThrowStandard Throw
-
Bearing TypeConcealed Anti-Friction
-
Knuckles3 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes18 Holes
-
- Dimensions
-
Hinge Size5" x 4-1/2"
-
Hinge Thickness.190" Thick
-
- Installation
-
Installation ScrewsInstallation screws provided.
-
- Finishes
-
FinishPrime Coat (USP), Satin Bronze (US10), Antique Bronze (US10A), Oil Rubbed Bronze (US10B), Satin Chrome (US26D)
-
- Compliance Details
-
Compliance DetailsBHMA Certified
-
ANSI DesignationA8511, A156.18
-
WarrantyLifetime Limited Warranty
-

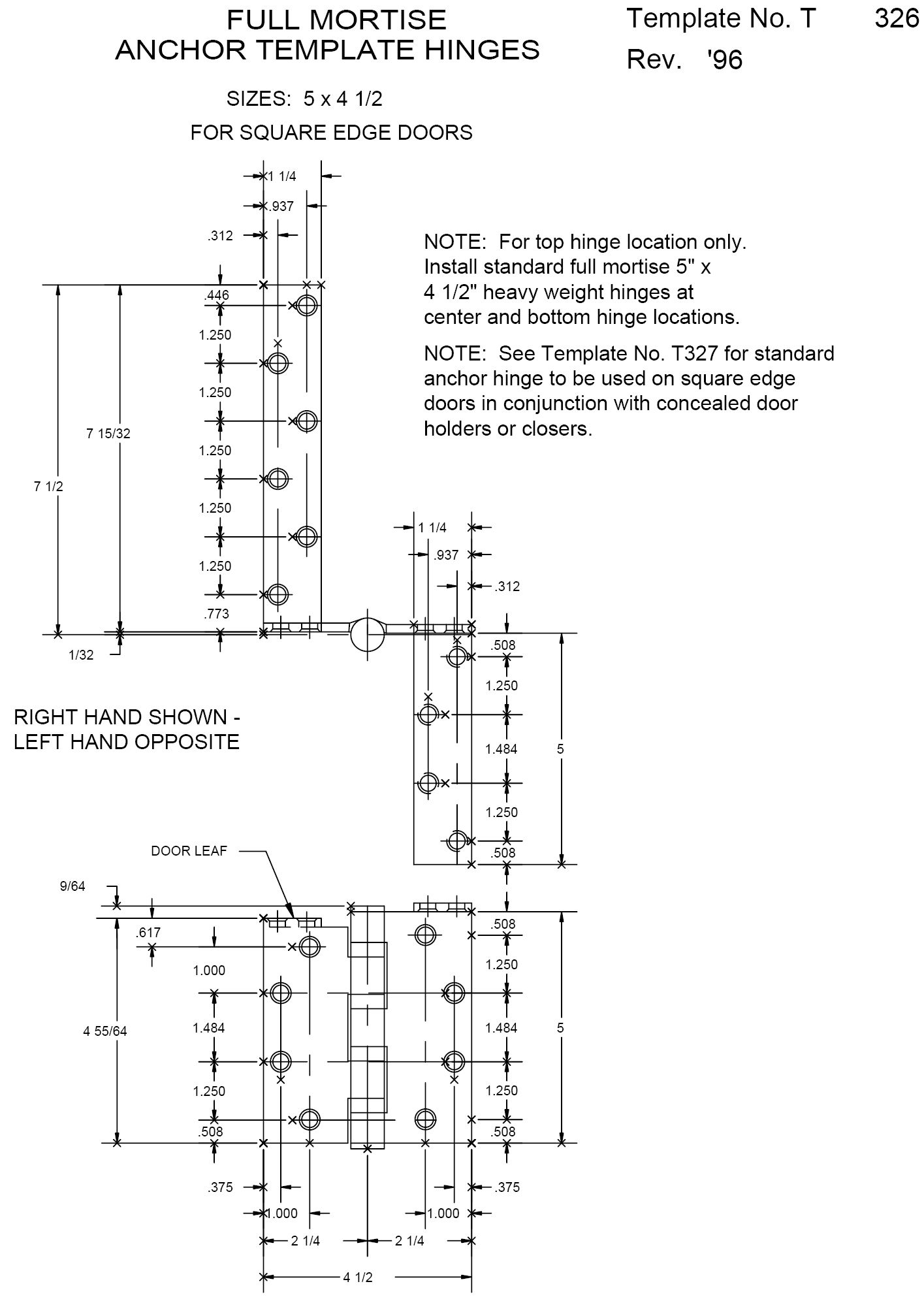

Click to Print AB7506 Template-Square Edge Doors
Click to Print AB7508 Template-Beveled Edge Doors
Â
Square Edge Door Template. See above for beveled edge door template.
