Hager Architectural, Full Surface, Heavy Weight, Prison Utility Hinge
Full Surface Architectural Heavy Weight, Prison Utility Hinge, by Hager Companies. Plain bearing, steel hinge with steel pin. Available with Prime Coat finish and size 3" x 4".
PRICED PER PIECE
See Hager Hinges Color Chart for a detailed list of Hager finishes.
This heavy duty Architectural hinge, by Hager Companies, is a Full Surface, Heavy Weight Prison Utility Hinge of plain bearing. It is the perfect product for your high security centers such as prisons and psychiatric areas. This hinge is for use on small doors, access doors and observation shutters. Two hinges will support 150 lbs.

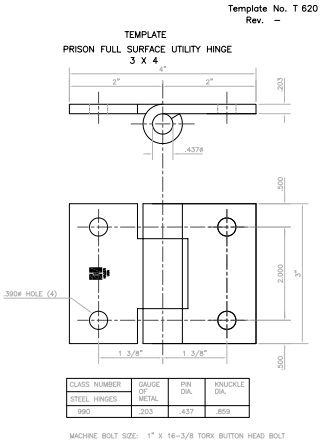

Hinge size:
Hinge Size | Pin Diameter | Gauge of Metal | Hole Count | Machine Screw Size | |||
Inches | mm | Inches | mm | ||||
3" x 4" | 78 x 102 | 0.437 | 11 | 0.203 | 4 | 1 x #16-3/8 Torx |
Custom colors available. For details and pricing please contact us or call us at 845-388-1300
Welded Pin. This hinge features a welded pin for security purposes. Welding eliminates the possibility of taking the hinge apart to remove the door, making it impossible to exit by those means.
This hinge features a torx button head bolt.
Priced per piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in workmanship and materials.
Click here to view our Institutional Prison Hinge With a Stainless Steel Base.
-
QuickShipNo
-
ManufacturerHager Companies
-
MPN990
- Product Design
-
Hinge CategoryFull Surface Welding Hinge, Detention Hinge
-
Base MaterialSteel
-
Usage LevelStandard Duty
-
ThrowStandard Throw
-
Bearing TypePlain Bearing
-
Knuckles3 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-
Number of Holes4 Holes
-
- Dimensions
-
Hinge Size3" x 4"
-
Hinge Thickness.437" Thick
-
- Installation
-
Door TypeSmall Doors
-
Installation ScrewsInstallation screws provided.
-
- Finishes
-
FinishPrime Coat (USP)
-
- Compliance Details
-
Compliance DetailsBHMA Certified
-
ANSI DesignationA8383
-
Warranty3 Year Limited Warranty
-
