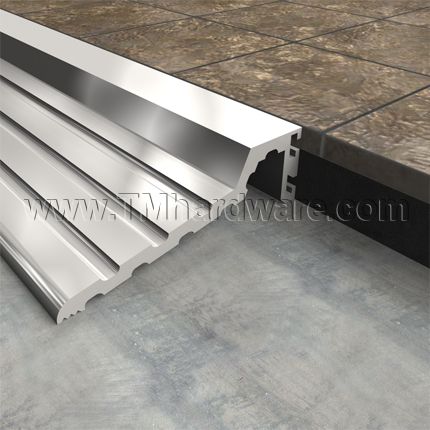

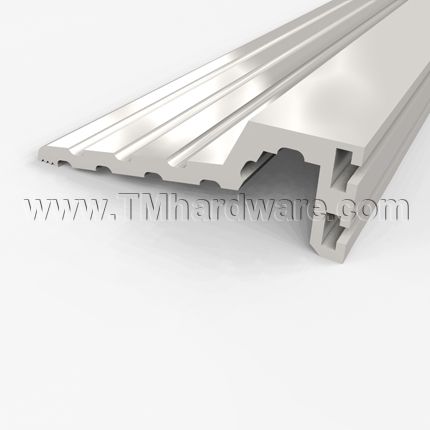

Zero #523 Half Threshold, 2.910" (W) Aluminum, High Clearance, .875" (H)
This Zero #523 Aluminum Threshold Half, with a clearance of .875", is used against a drop in floor surfaces. It will edge it off in a neat manner and provide a smooth transition between the two. Length is custom cut to size.
PRICED PER FOOT
Â
Half Thresholds remove the tripping hazards associated with floor changes.

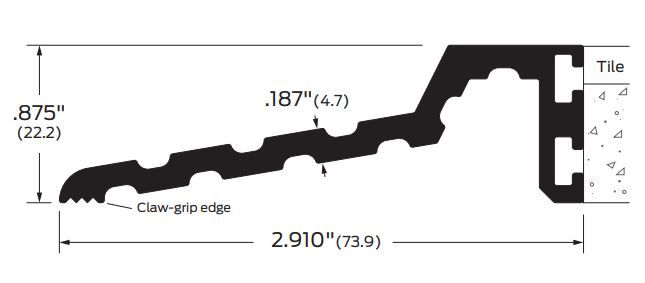

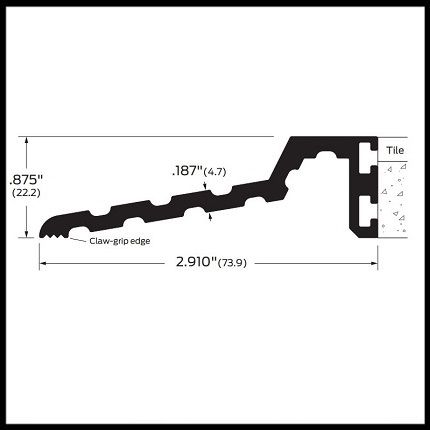

Width: 2.910"
Total Offset Height: .875"
Length: Custom cut to size up to 104" (Larger sizes can be purchased through our office)
Thickness: .187"
Finish: Aluminum mill finish
Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, Expansion Anchors are recommended.
Drilling: This product is drilled at standard factory locations.
Additional Options Include:
-

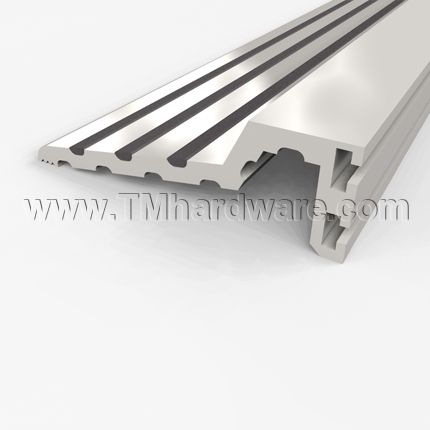

Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.
-

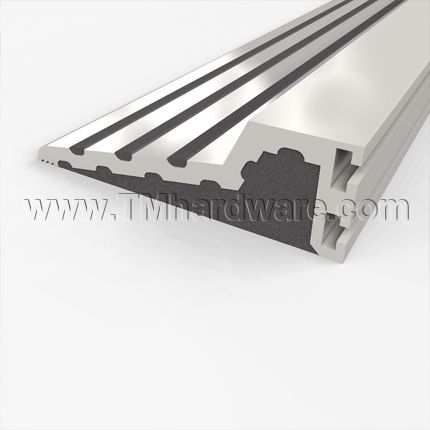

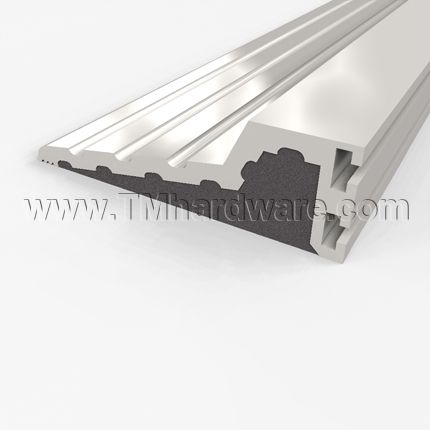

Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, and industrial facilities.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.
Click here to see more Half Thresholds.
-
QuickShipNo
-
ManufacturerZero International
-
MPN523
-
OptionsStandard Aluminum, Epoxy Abrasives, Full Body Strength, Both Epoxy and Full Body
- Dimensions
-
Overall Height.875" Height
-
Overall Width2.9" Width
-
Threshold LengthCustom Cut to Size
-
Thickness.187" Thick
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeHalf Threshold
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishFlat Black (US19)
-

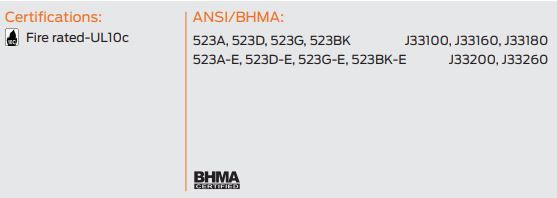

- Compliance Details
-
Warranty1 Year Limited Warranty
-
