Interior Entry Doorway Sealing System, Option 1

This system combines a Door Gasket or Self-Adhesive Weatherstrip, Mortised Door Bottom and choice of Carpet Dividers to create a high performance sealing system for a single interior entry door. The products work together to form a proper seal that will lessen penetration of dust, drafts, light, and sound.

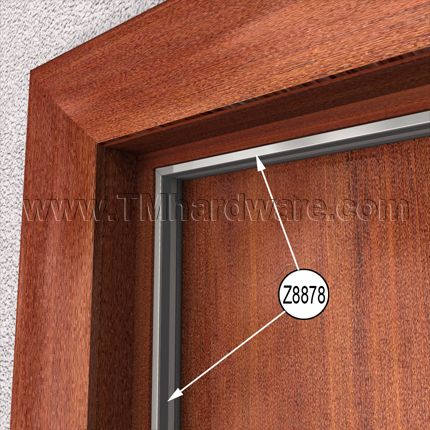

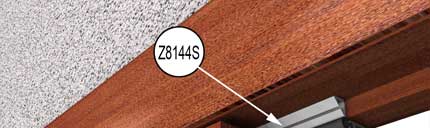

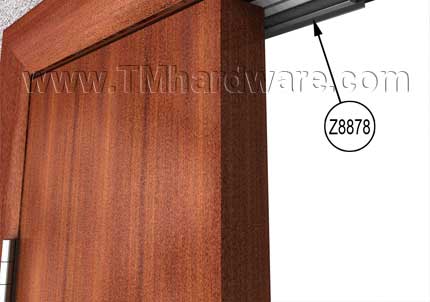

Aluminum Door Gasket with Neoprene Seal (Z8878) or Silicone Batwing Design Weatherstrip (Z8144):This door gasket or weatherstrip lines the perimeter of the door frame to create a compression barrier which prevents infiltration of sound, dust, drafts, light, and smoke. For an interior application, only one option is necessary, however for a higher STC rating, applying both is recommended.

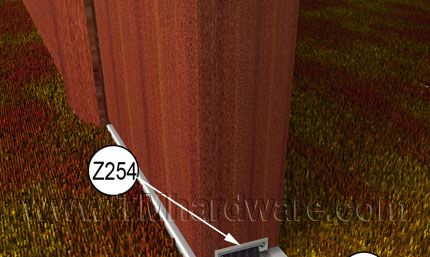

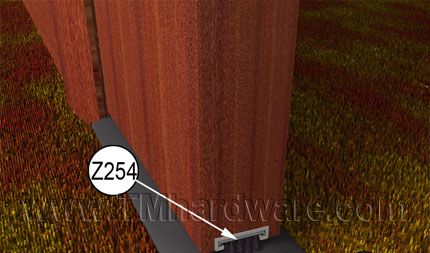

Mortised Door Sweep with Pile Brush Seal (Z254): This door bottom sweep is mortised into the bottom of the door for a clean and unobtrusive seal. The pile brush seal is made of soft, flexible fibers which can be used over carpet without damaging the area. The pile rests on a carpet divider / threshold to ensure protection against dust, drafts and light infiltration.

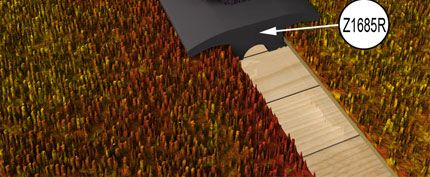

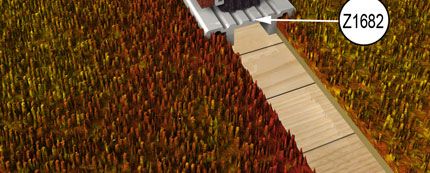

Aluminum Carpet Divider (Z1682) or Rubber Carpet Divider (Z1685R): These carpet dividers supply a smooth, hard surface for the pile brush seal to rest on, ensuring a proper seal at all times. The divider also creates a smooth transition between rooms. Rubber is more versatile and could be used in all standard interior doorways, however for a fire rated door, an aluminum divider is recommended.

Ideal Application for:

Doorway openings in an interior application, such as hotel rooms, home dining and sitting rooms, offices and commercial conference rooms.

Select the Circle with Product Code on the Image to be redirected to that specific product

For Fire Doors: For Standard Doors:

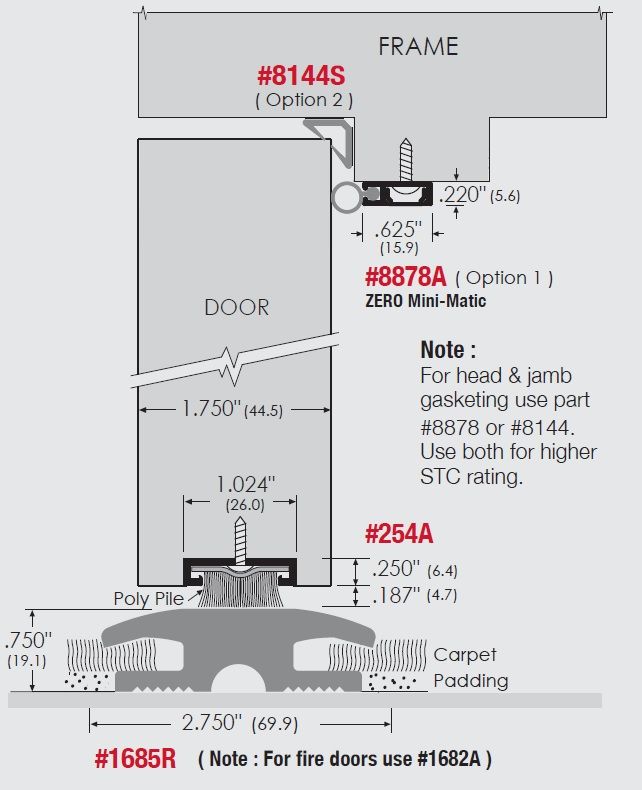

Individual Product Specs:

Door Gasket with Neoprene Ring Seal (Z8878):

Mortised Door Bottom with Pile Seal (Z254):

Aluminum Carpet Divider (Z1682):

Batwing Style Weatherstrip (Z8144):

Rubber Carpet Divider (Z1685R):

Click here to view all products pages in this Interior Entry Doorway Sealing System.
