Zero #36 Meeting Stile, Aluminum, with Neoprene Bulb Finger, Mortised
This Zero #36 aluminum meeting stile is fitted with an extruded neoprene bulb insert which effectively seals the gap between a pair of doors. It is designed to be fully mortised into the edge of the door. Corresponding solid stile is available for larger gaps or for uniformity between doors, select from options below. Available in various finishes and is custom cut to size.
See full product details and specs in the tabs below.
PRICED PER FOOTÂ

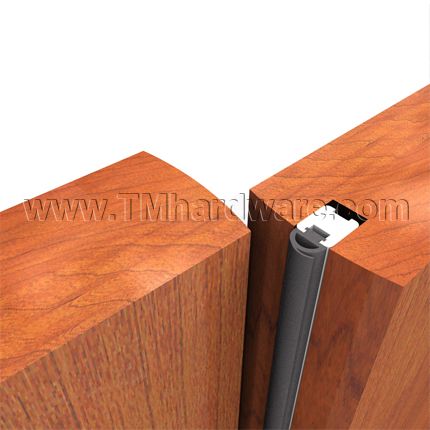

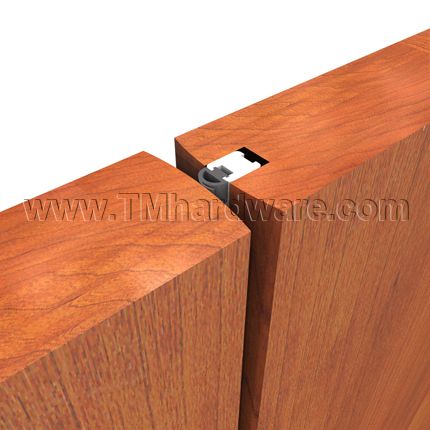

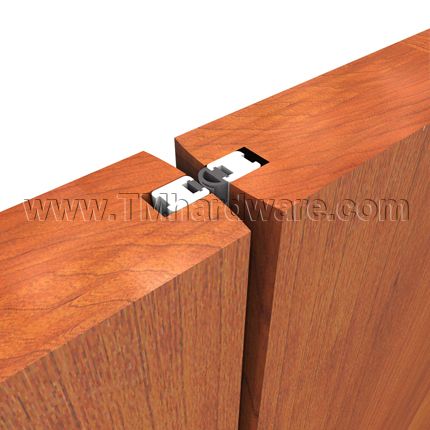

This Zero #36 aluminum meeting stile is fitted with an extruded neoprene bulb insert which effectively seals the gap between a pair of doors. Designed to be fully mortised to the edge of double active double doors.

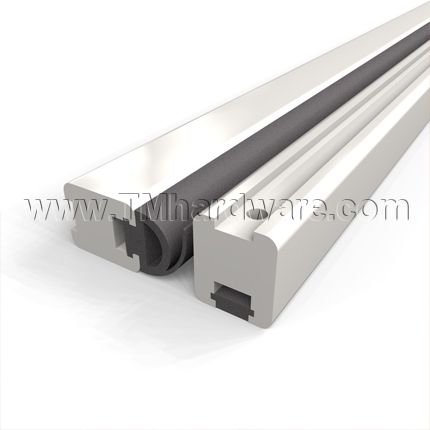

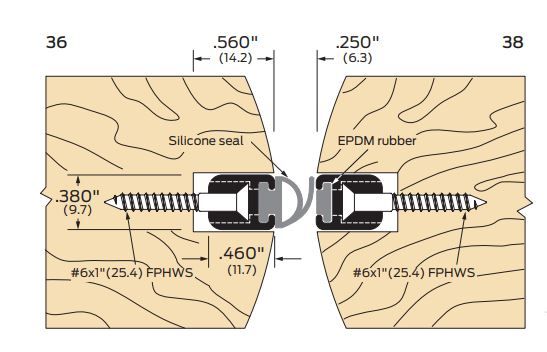

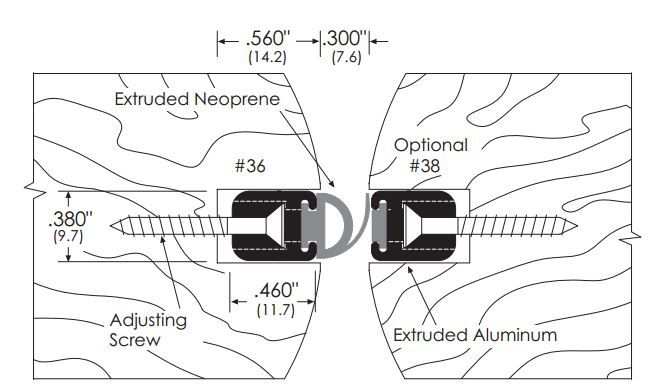

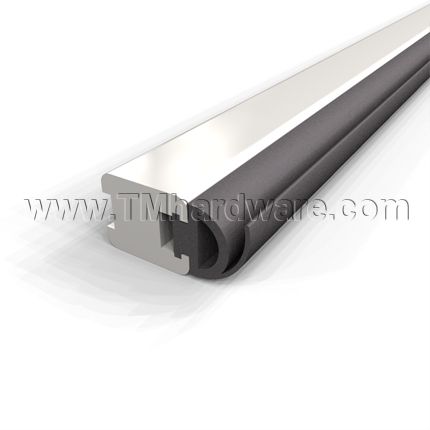

Stile Set: Can be purchased as one stile, with only the neoprene bulb seal. Or as a set, which is useful if the gap between doors are larger than .300", or for uniformity between doors.

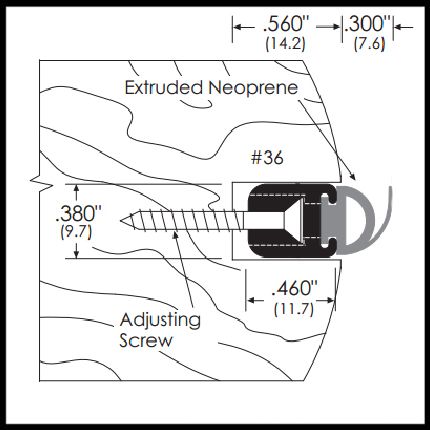

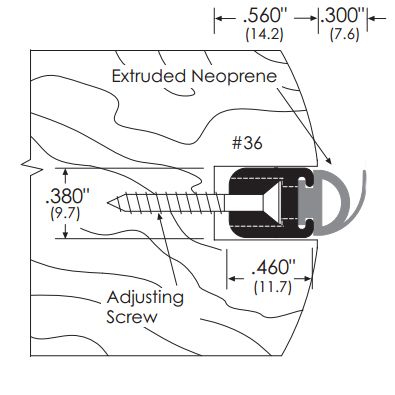

Door Compatibility:Â Recommended for wooden doors with a radius edge. Mortised channel should be .560" D x .380" W
Retainer Dimensions:Â .460" x .380" x Length is custom cut to size up to 104" (Larger sizes can be purchased through our office)
Seal:Â
- Â #36 Neoprene Bulb: Extruded Neoprene bulb with an additional fingered design. The finger ensures a reliable seal, even when the door is misaligned due to poor installation or natural warping.
- #38 Silicone Insert: Self Extinguishing Silicone
Installation: Provided with installation holes and installation screws. Screws are colored to coordinate with casing. Installation screws can be adjusted to accommodate natural shifting or warping of doors.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.
Check out our other meeting stiles for Double Active Doors
-
QuickShipNo
-
ManufacturerZero International
-
MPN36
-
OptionsComplete Set (#36 and #38), Stile with Neoprene Bulb (#36)
- About This Product
-
Retainer MaterialAluminum
-
Seal TypeNeoprene
-
Door TypeDouble Active Doors
-
MountingFully Mortised
-
- Dimensions
-
Seal Height.300"
-
Width.860"
-
Size (Feet)Custom Cut to Size
-
- Installation
-
Installation Screws#6 x 1.00" (25.4) FPHWS Provided
-
- Finishes
-

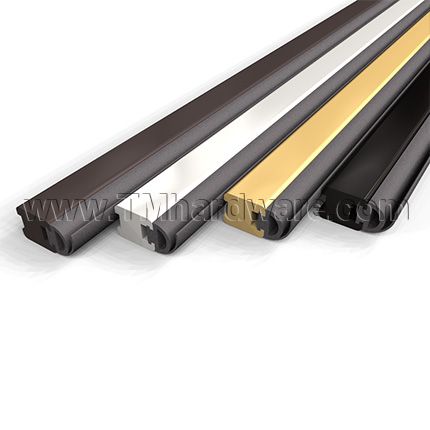

FinishBlack Anodized Aluminum (315), Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum
-
- Compliance Details
-

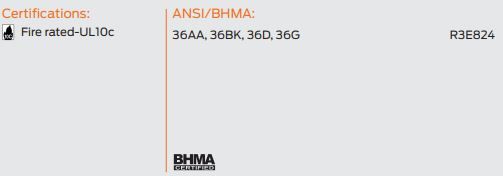

Compliance DetailsFire Rated, BHMA Certified
-
ANSI DesignationR3E824
-
Warranty1 Year Limited Warranty
-
