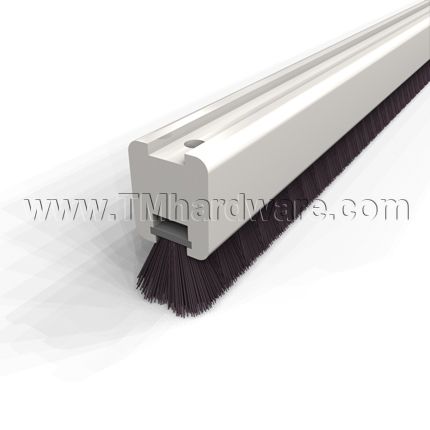

Zero #34 Meeting Stile, Aluminum With .3" Pile Brush and Fin Seal, Mortised
This Zero #34 aluminum meeting stile is fitted with a polypropylene brush insert with fin seal which effectively seals the gap between a pair of doors. It is designed to be fully mortised. Corresponding solid stile is available for larger gaps or for uniformity between doors, select from options below. Available in various finishes and is custom cut to size.
See full product details and specs in the tabs below.
PRICED PER FOOT

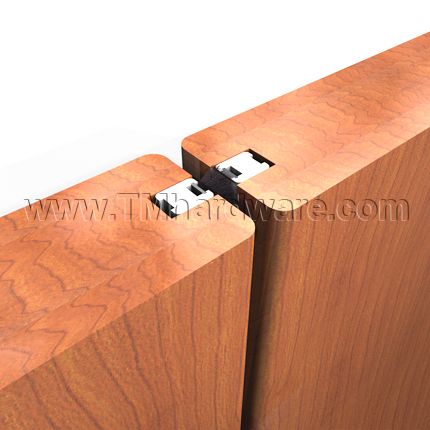

This Zero #34 aluminum meeting stile is fitted with a polypropylene brush insert with fin seal which effectively seals the gap between a pair of doors. It is designed to be fully mortised. Corresponding solid stile is available for larger gaps or for uniformity between doors, select from options below.

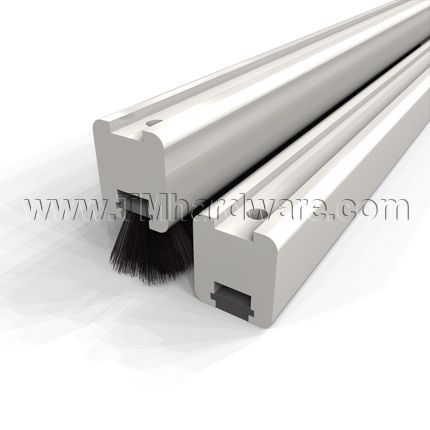

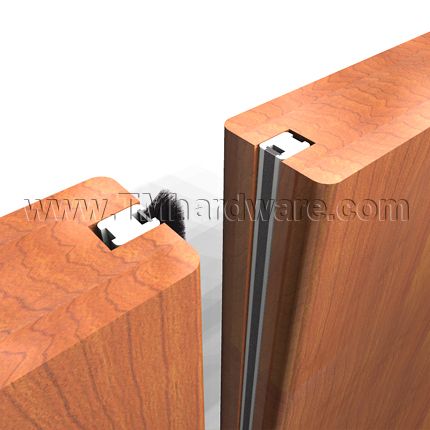

Stile Set: Can be purchased as one stile, with only the brush seal. Or as a set, which is useful if the gap between doors are larger than .3", or for uniformity between doors.

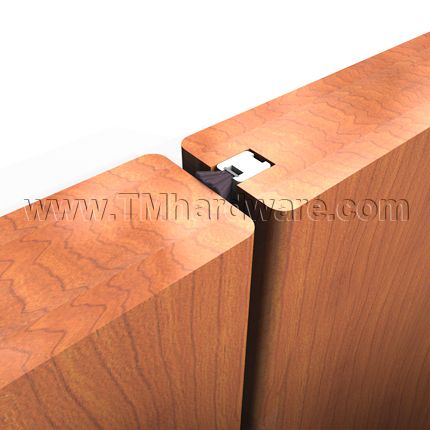

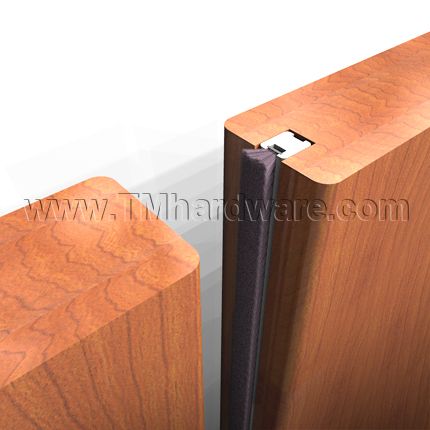

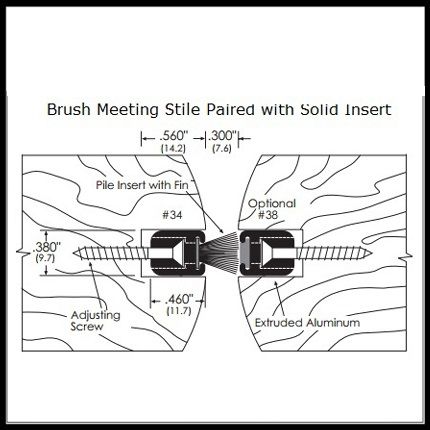

Door Compatibility: Recommended for wooden doors with a radius edge. Mortised channel should be .560" D x .380" W

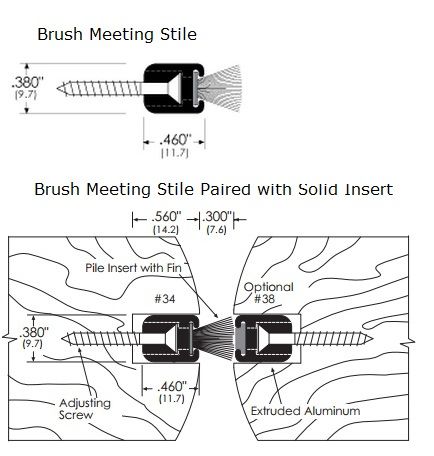

Retainer Dimensions: .460" x .380" x Length is custom cut to size up to 104" (Larger sizes can be purchased through our office)
Seal: #38 Silicone Seal: Self extinguishing silicone insert
#34 Brush Seal: High quality polypropylene brush with plastic inner fin, .300" Depth. The stiff inner fin lessens draft and sound filtration.
Installation: Provided with installation holes and installation screws. Screws are colored to coordinate with casing.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.
Check out our other meeting stiles for Double Active Doors
-
QuickShipNo
-
ManufacturerZero International
-
MPN34
-
OptionsComplete Set (#34 and #38), Stile with Pile Brush (#34)
- About This Product
-
Retainer MaterialAluminum
-
Seal TypePile Brush, Silicone
-
Door TypeDouble Active Doors
-
MountingFully Mortised
-
- Dimensions
-
Seal Height.300"
-
Total Height.860"
-
Width.380"
-
Size (Feet)Custom Cut to Size
-
- Installation
-
Installation ScrewsInstallation Screws Provided
-
- Finishes
-

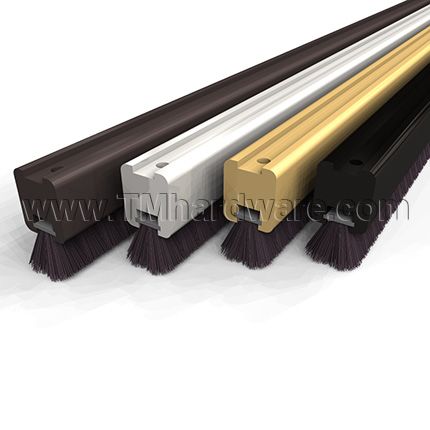

FinishBlack Anodized Aluminum (315), Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum
-
- Compliance Details
-
Compliance DetailsBHMA Certified
-

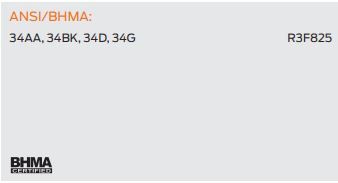

ANSI DesignationR3F825
-
Warranty1 Year Limited Warranty
-
