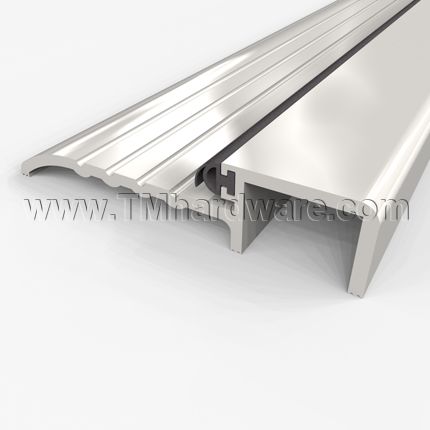

Zero #561 Rabbeted Threshold, 4.5" W Aluminum With Neoprene Gasket, 1" Clearance
This Zero #561 high quality Rabbeted Doorway Threshold is fitted with a neoprene gasket to ensure a strong seal against dust, drafts and water from entering. It is made from Aluminum Mill Finish and is Smoke rated. Available with full body strength option, length is custom cut to size.
See full product details and specs in tabs below.
PRICED PER FOOT

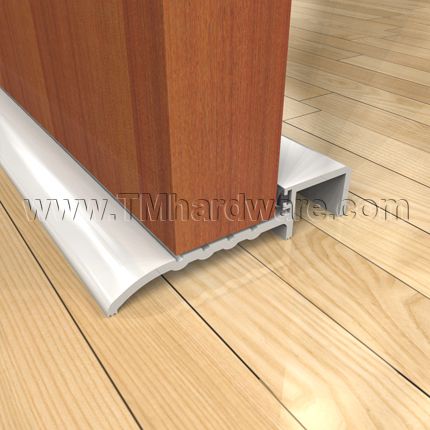

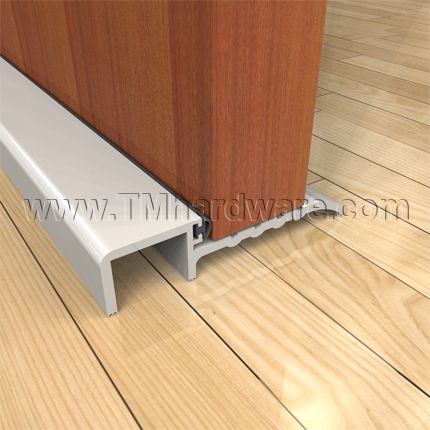

Threshold spans under doors and has a solid neoprene seal which compresses against a closed door to ensure a superior seal. Saddle design has a flat top surface which works well with a Surface Mounted Automatic Door Bottom.

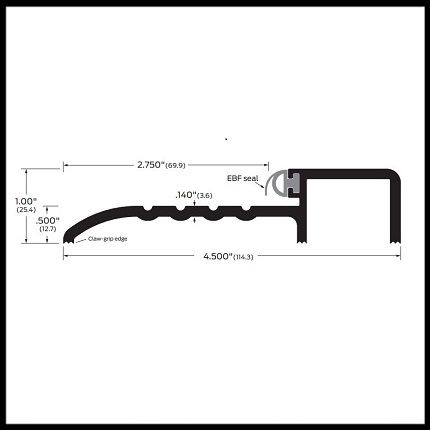

Total Width: 4.5"
Width Under Door: 2.750"
Required Door Clearance: .5"
Total Height: 1"
Length: Custom cut to size up to 104" (Larger sizes can be purchased through our office)
Thickness: .140"
Finish: Aluminum mill finish
Compliance Details: Smoke Rated
Seal: Solid Neoprene EBF (Extruded Bulb and Finger Design). The bulb has great compression properties while the additional finger aids in sealing extra gaps due to misalignment during installation or natural warping of the door. Solid neoprene will remain effective in extreme weather conditions.
Installation: Installation Instructions and screws provided. If threshold is being drilled into concrete, Expansion Anchors are recommended.
Additional Options: Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.
Click here to see more Door Bumper Thresholds.
-
QuickShipNo
-
ManufacturerZero International
-
MPN561A
-
OptionsStandard Aluminum, Alum. with Full Body Strength
- Dimensions
-
Overall Height1" Height
-
Overall Width4.5" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.5" Height
-
Thickness.140" Thick
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeRubber Seal / Bumper Threshold
-
Seal TypeNeoprene Seal
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishFlat Black (US19)
-

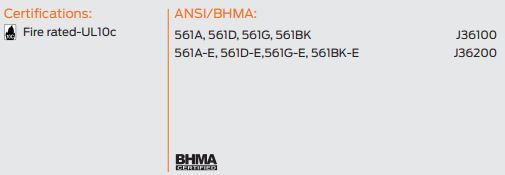

- Compliance Details
-
Warranty1 Year Limited Warranty
-
