Zero #566A Rabbeted Threshold, 5" (W) Aluminum with Neoprene and Grip Saddle, .5" H

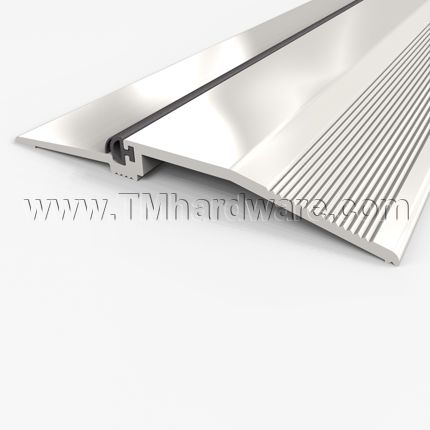

This Zero #566A rabbeted threshold is fitted with a neoprene gasket, which provides a solid seal against dust, drafts, insects and water infiltration.  It is fire and smoke rated and crafted from heavy duty Aluminum Mill Finish. Grooves on the saddle prevent slipping. Options of epoxy abrasives and full body strength available. Length is custom cut to size.

PRICED PER FOOT

See tabs below for additional information
    • SKU
      ZR566_A
    • Market price:$18.53
      • save 5%
    • Starting price: Price: $17.60 per foot

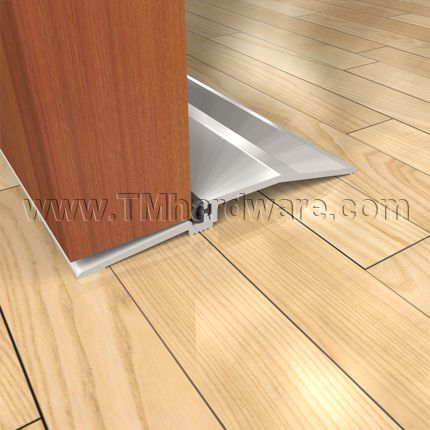

    Threshold spans under doors and has a solid neoprene seal which compresses against a closed door to ensure a superior seal. Saddle design has a flat top surface which works well with a Surface Mounted Automatic Door Bottom.

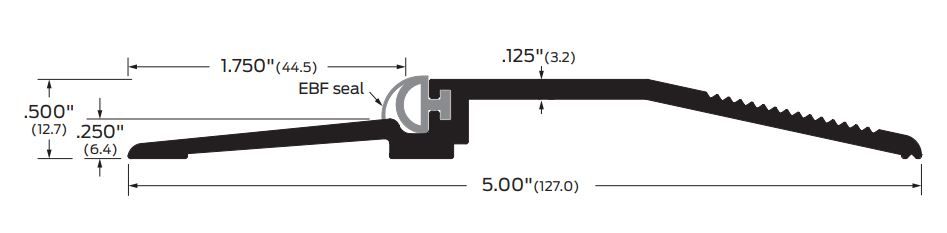

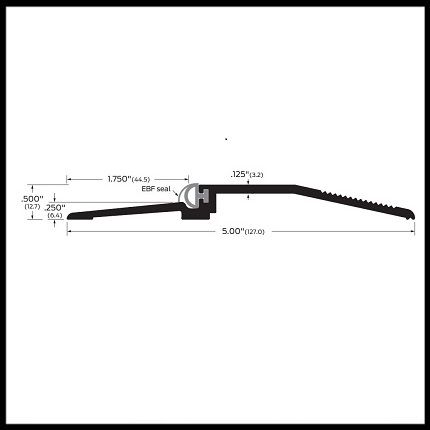

    Total Width: 5"

    Width Under Door: 1.75"

    Required Door Clearance: .25"

    Total Height: .5"

    Thickness: .125"

    Length: Custom cut to size up to 104" (Larger sizes can be purchased through our office)

    Finish: Aluminum mill finish

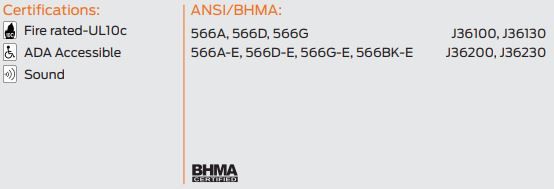

    Compliance Details: Positive Pressure Fire Rating, Smoke Rating, ITS Warnock Hersey Listed, ADA / Wheelchair Compliance

    Seal: Solid Neoprene EBF (Extruded Bulb and Finger Design). The bulb has great compression properties while the additional finger aids in sealing extra gaps due to misalignment during installation or natural warping of the door. Solid neoprene will remain effective in extreme weather conditions.

    InstallationInstallation instructions and screws provided. If threshold is being drilled into concrete, Expansion Anchors are recommended.

    Drilling: Threshold is drilled for easy installation

    Additional Options Include:

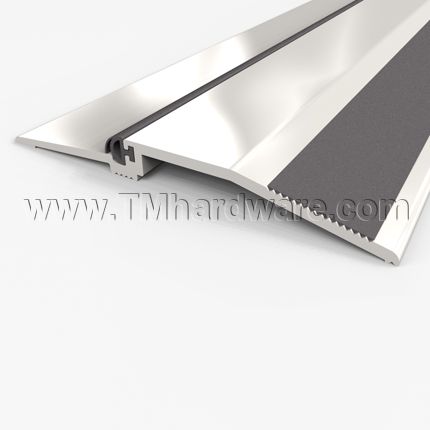

    • Non-Stick Epoxy Abrasives: can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.

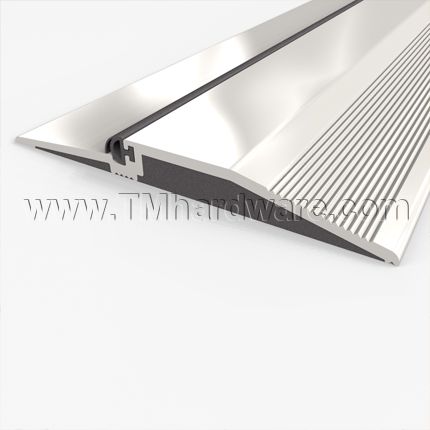

    • Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click here to view our full Warranty Policy.

    This product is also available in a bronze version, see our Zero International #566B 5" Bronze and Neoprene Rabbeted Threshold

      • SKU
        ZR566_A
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      566A
    • Options
      Standard Aluminum, Epoxy Abrasives, Full Body Strength, Both Epoxy and Full Body
    • Dimensions
      • Overall Height
        .5" Height
      • Overall Width
        .5" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .25" Height
      • Thickness
        .125" Thick
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Rubber Seal / Bumper Threshold
      • Seal Type
        Neoprene Seal
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Flat Black (US19)
    • Compliance Details
      • Warranty
        1 Year Limited Warranty

    compliance details z566
