Rockwood 73RC Push Plate, Round Corner, Extra Heavy Duty .125" Thick

Rockwood's 73RC high quality push, is great for doors in high traffic areas. Edges are beveled for added security. Available in many sizes, weights and finishes. See details and options below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      RK73RCA_US3
    • Market price:$136.00
      • save 10%
    • Starting price: Price: $122.40 per item

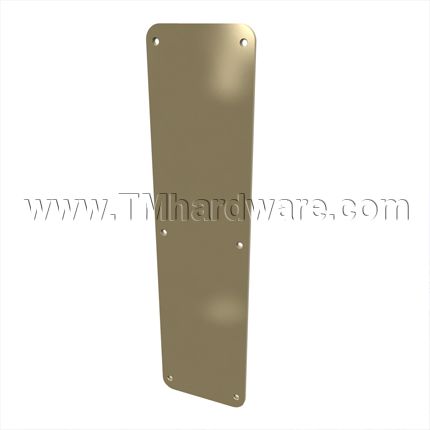

    Rockwood's 73RC push plate is commercial grade and long lasting. It is extra heavy duty (.125" thick), round cornered and contains a beveled edge. This push plate is great for use on any door of your choice, particularly doors in high traffic areas.

    Materials: Aluminum, Brass, Bronze, Stainless Steel

    Finishes: Polished Brass; Satin Brass; Satin Bronze; Satin Oil Rubbed Bronze; Dark Oxidized Satin Bronze, Equivalent; Polished Chrome; Satin Chrome; Polished Stainless; Clear Anodized Aluminum; Satin Stainless; Satin MicroShield Coated; Satin 316 Alloy (All finishes comply with BHMA codes. See Product Data for compliance details.)

    A Note on Finishes: Dark Oxidized Satin Bronze, equivalent - This new finish provides the richness and warmth of the 10B/Satin Bronze Oiled "living" finish, but maintains its original color and appearance and will not fade or wear over time. Stainless Steel, Polished/US32​ - Enhanced corrosion resistance of stainless steel. 316 Alloy - Highly recommended for use if environment/job site has road salt, marine salt air, industrial/urban pollution.

    Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.

    Features: Four beveled edges.

    Options: For details and pricing, see options tab.

    • TORX - security torx screws
    • SA-self adhesive mounting-1/16" double face foam tape (no screw holes)
    • Engraving
    • Cylinder Cutouts (CFC) and Turn Knob Cutouts (CFTT)

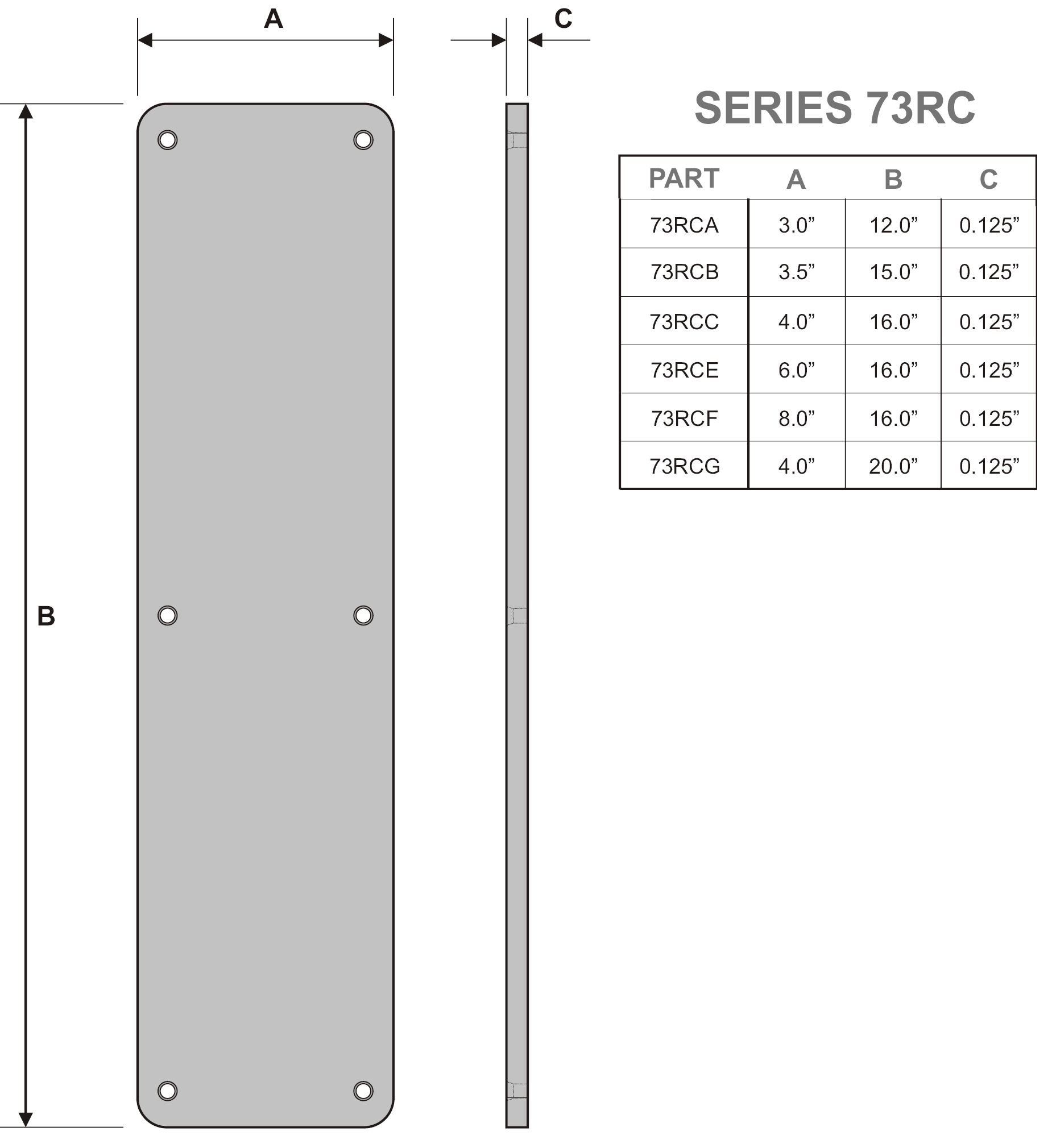

    Sizes: 6 available sizes (chart)

      Product #   Size (Inches)   Weight
      73RCA   3 x 12   1.7 lbs
      73RCB   3-1/2 x 15   2.1 lbs
      73RCC    4 x 16   2.5 lbs
      73RCE
      6 x 16   3.8 lbs
      73RCF   8 x 16    5.0 lbs
      73RCG   4 x 20   3.2 lbs

    Fastener: #6 x 5/8" OH SMS. Included.

    Priced per piece.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in workmanship and materials.

    Click here to view our Full Warrany Policy.

    Click here to view Rockwood's 73RE Extra Heavy Duty Push Plates and Round Edges.

      • SKU
        RK73RCA_US3
    • QuickShip
      No
    • Manufacturer
      Rockwood Company
    • MPN
      73RC
    • Size
      3" x 12" (73RCA), 3-1/2" x 15" (73RCB), 4" x 16" (73RCC), 6" x 16" (73RCE), 8" x 16" (73RCF), 4" x 20" (73RCG)
    • Options
      None, Adhesive Mounting, 1"-12", Adhesive Mounting, 12"-48", Cylinder Cutout, Turn-knob Cutout
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Polished Chrome (US26), Satin Chrome (US26D), Clear Anodized Aluminum (US28), Satin Stainless Steel (US32D), Polished Stainless Steel (US32), Microshield Stainless Steel, Satin, 316 Alloy Stainless Steel, Satin, 316 Alloy Stainless Steel, Polished



    To order products with more than one option, please contact us or call us at 845-388-1300.

     TORX SCREWS

    Security Torx Screws (Star Head Screws) have the advantage of a very tight fit with the screwdriver/drill. The rounded corners also reduce the wear of both screw and the tool used.

    Push plate needs a total of six screws.

    Size: #6 x 5/8" Oval Head SMS

    Priced per 6 screws: Stainless Steel-$4.80      Brass Plated-$16.20

     SELF-ADHESIVE MOUNTING

    1/16" double face foam tape. No screw holes on the plate. This tape is applied by the buyer for easy installation.

    Price: Up to 12" Height-$15.00     12"-48" Height-$32.00

     ENGRAVING

    Standard engraving words are: Push/Pull/Men/Women, 3/4" high condesed block letters with enamel fill. Other letters and styles are available upon order. To order standard or custom engravings, and for details and pricing please contact us or call us at 845-352-3200.

    Price per engraving: $16.00 ($19.20 for Stainless Steel)

    Adhesive mounting is available for $6.40

     CYLINDER(CFC)/ TURN KNOB(CFTT) CUTOUTS

    Cylinder Cutouts are holes cut out from the top of the plate for cylinders (key locks) or thumbturns.

    Turn Knob Cutouts are holes cut out from the top of the plate for a turn knob to be installed.

    Price per cutout: $4.00



    All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

    • Polished Brass-US3/605
    • Satin Brass-US4/606
    • Satin Bronze-US10/612
    • Satin Oil Rubbed Bronze-US10B/613
    • Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
    • Polished Chrome-US26/625
    • Satin Chrome-US26D/626
    • Clear Anodized-US28/628
    • Stainless Steel, Polished-US32/629
    • Stainless Steel, Satin-US32D/630
    • Polished 316 Alloy-US32316
    • Satin 316 Alloy-US32D316

    ​Push Plate complies with ANSI A156.6: J301
