Pemko #SBR 1" and .5" Height Rubber Ramp, Styrene Butadiene Fire Retardant

This Styrene Butadiene Fire Retardant Rubber Ramp Assembly is applied to transition a .5" - 1" floor offset and make it accessible for wheelchairs and those with limited mobility. Very durable with superior grip, anti-slip surface. .5" Ramp has a length of 5.625, and 1" Ramp has a length of 11.625".

SOLD BY THE FOOT

See tabs below for additional information
    • SKU
      PKSBR.5F
    • Market price:$168.06
      • save 15%
    • Starting price: Price: $142.86 per item


    This Rubber Ramp Assembly is applied to transition a .5" or 1" floor offset and make it accessible for wheelchairs and those with limited mobility.

    Material: Styrene Butadiene rubber ramps are weather, ozone, abrasion, and impact resistant. They are durable, long lasting and fire retardant.

    Safety Surface: Rubber ramps have a superior grip, anti-slip surface and 'no-bump' tapered lead edge, making them safe for wheelchairs and those with  limited mobility.

    Easy Installation: Can be installed on most surfaces, including wood, concrete, tile and asphalt. Mechanical fasteners are not required, and not recommended.

    Portable: Rubber ramp is portable. It stays in plays due to its sheer weight and can be easily transported and placed at another opening.

    Trimming: Ramps can be cross-cut to width required, or ripped to a custom offset height using a table or radial arm saw with a carbide tipped blade. These modifications must be made in the field.

    Miter Returns: Rubber ramps are cut square on each end but are available with molded rubber miter returns which can be glued to each end for a more pleasing appearance. Miter return ends can be purchased as a pair or only one side. Select from options above.

    Available Widths: Ramp is available in 12" increments and can be purchased up to standard sides on our website. Sizes up to 180" are available through our office. For details and pricing contact us or call us at 845-388-1300. Ramps can be butted together for greater widths.

    Available Heights: Ramps are compatible with offsets of 1" or .5" heights. Select options above. 1" ramps are supplied in two parts and have an interlocking design for easy installation.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.

    Click here to view our Recycled Rubber Ramp Assembly.

      • SKU
        PKSBR.5F
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      SBR1F, SBR1FMR, SBR.5F, SBR.5FMR
    • Dimensions
      • Offset Height
        .5" Height, 1" Height
      • Width
        5-5/8" Width, 11-5/8" Width
      • Length
        Custom Cut to Size
      • Width (Inches)
        24" Width, 36" Width, 48" Width, 60" Width, 72" Width, 84" Width, 96" Width
    • Ramp Design
      • Material
        Rubber
      • Ramp Component
        Ramp Edge
      • Ramp Type
        Flush Application
      • Installation
        Can be installed on most surfaces, including wood, concrete, tile and asphalt. Mechanical fasteners are not required, and not recommended.
      • Drilling
        Drilling holes NOT provided
    • Additional Options
      • Miter Return
        None, Full Pair Miter Return (#SBR-MR), Right Hand Miter Return (#SBR-MR), Left Hand Miter Return (#SBR-MR)
    • Compliance Details
      • Compliance Details
        ADAAG 2010, IBC/ANSI A117.1, California Title 24, Part 2, UL Standard 410 Slip Resistance of Floor Materials, ASTM D 2047, Federal Specifications P-F-430C
      • Warranty
        5 Year Limited Warranty

    Click to Print

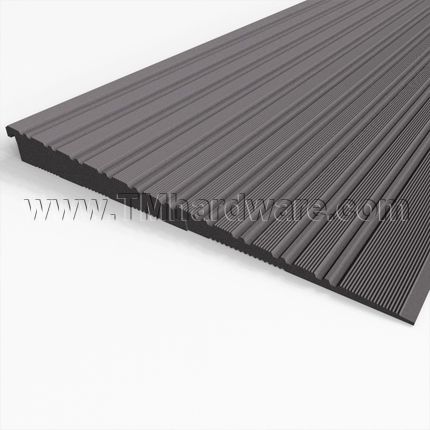

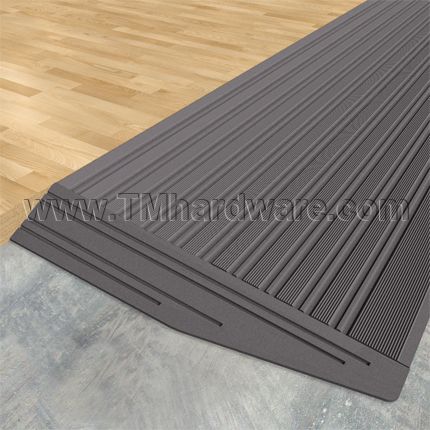

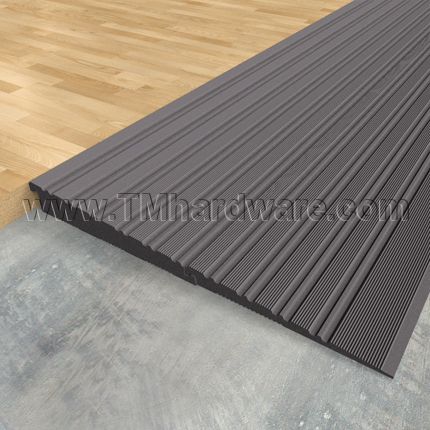

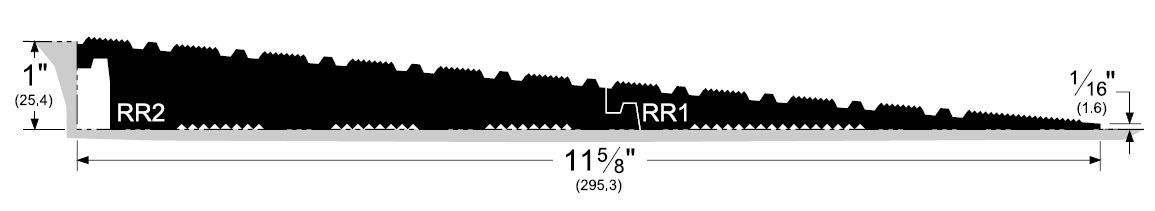

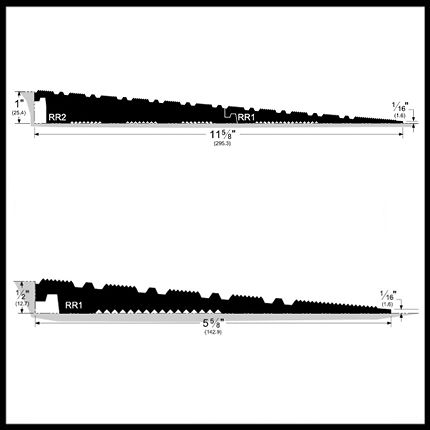

    1" Floor Offset:

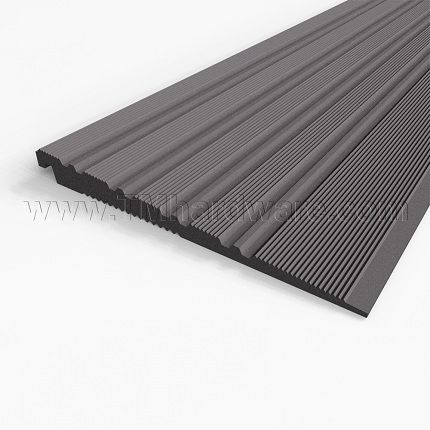

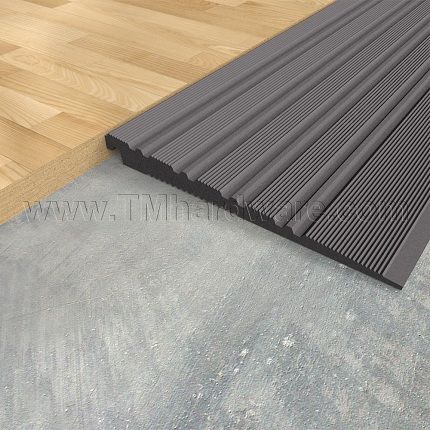

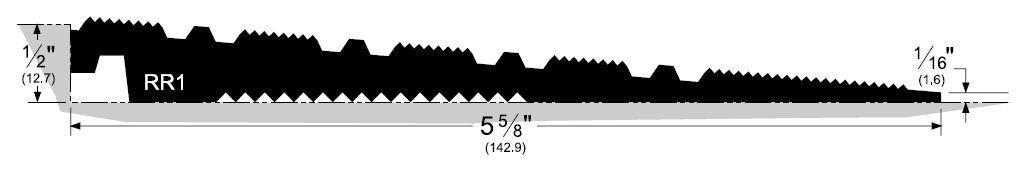

    .5" Floor Offset:

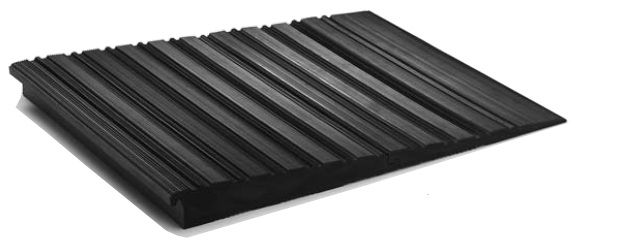

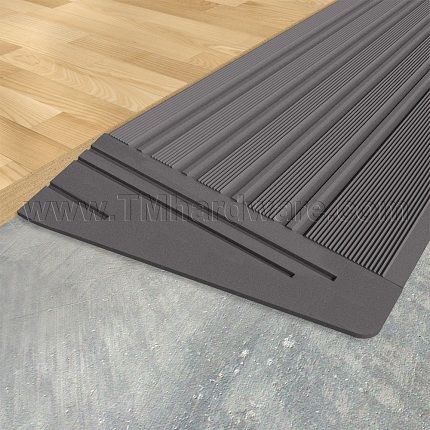

    Sample Section:

    Click to Print

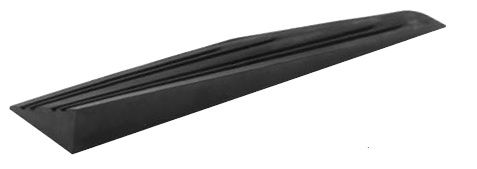

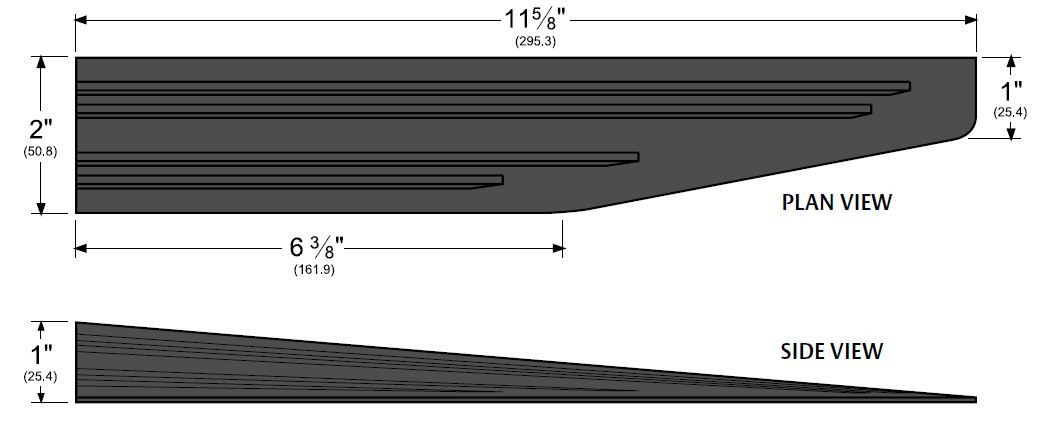

    Sample - Right Side Miter Return:

    Rubber Ramp Complies With:

    • ADAAG 2010
    • IBC/ANSI A117.1
    • California Title 24, Part 2
    • UL Standard for Safety, UL410
    • ASTM D 2047
    • Federal Specification P-F-430C
