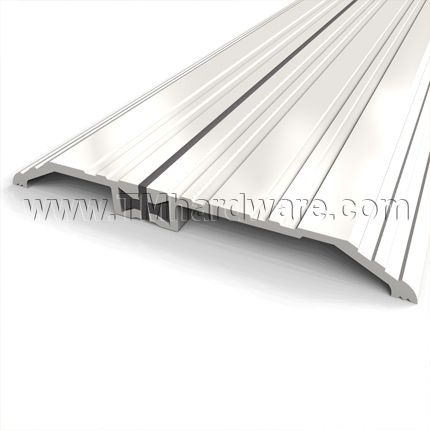

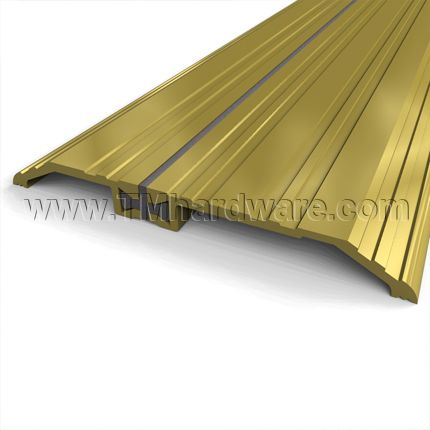

Pemko #252x5_FG Utility Threshold, 7.125" Aluminum or Bronze with Thermal Break, .5" (H)
Thermal Barrier Thresholds are manufactured with a rigid vinyl key separating two pieces of aluminum which reduces the transfer of hot and cold temperatures from one side to the other. It has a height of .5" which is ADA Compliant. Available in three finishes and is custom cut to size.
PRICED PER FOOT
Threshold is fitted with a black rigid vinyl break which reduces heat loss and prevents frost build up on the interior surface of the saddle.

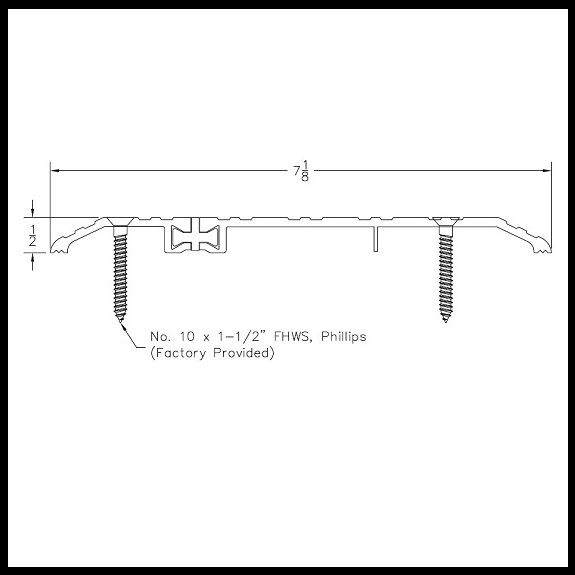

Width: 7.125" (7-1/8")
Height: .5" (1/2")
Length: Custom cut to size
Compliance Details: ADA / Wheelchair Compliance, BHMA Certified, Fire Rated
Installation: Installation instructions and screws provided. Screws are colored to coordinate with door hardware. If threshold is being drilled into concrete, an Expansion Anchor is recommended.
Drilling: Threshold requires two rows of fasteners for installation. Drilling holes will be applied to the center line of each saddle piece for easy installation.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For a 10” standard threshold in other materials, see our Utility Threshold, 10" Aluminum or Anodized with .5" Height.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN252x5_FG
- Dimensions
-
Overall Height.5" Height
-
Overall Width7.125" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.625" Height
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeFlat Utility Threshold
-
MaterialAluminum, Brass
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-

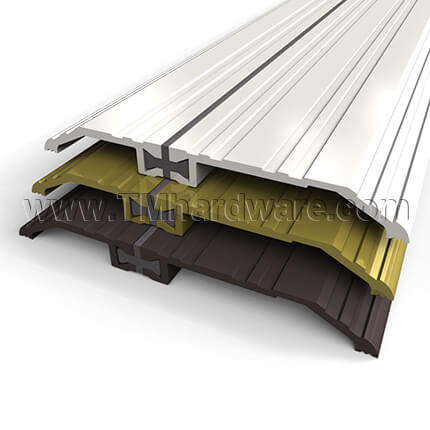

FinishMill Finish Aluminum (US27), Bronze Mill Finish (Brass), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Warranty3 Year Limited Warranty
-
Click to View Ratings Explained
- Aluminum Mill Finish - US27 / 719
- Bronze Mill Finish (Brass) - US4 / 720
- Dark Bronze Anodized Aluminum - US10B / 710
