Window Flood Barrier / Shield
Custom sized flood barrier protects doorways, windows and building content from heavy rain and flooding. Easily slides in and out of pre mounted channels. This flood barrier is fitted with a high quality marine grade aluminum and closed cell sponge neoprene strips which ensures a water-tight seal. This model has an additional channel, making it compatible with windows, see below.
FEMA and FIA Compliant
PRICED BY THE FOOT (WIDTH) - See full sizing and product details in the tabs below
Flood Barrier Shield is custom specialty fabricated item and is available in sizes not listed on our site. For greater heights or width please contact us for a quote.

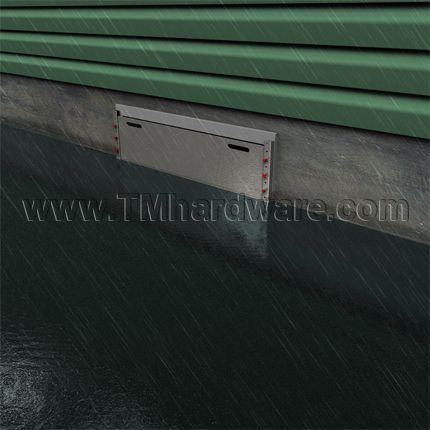

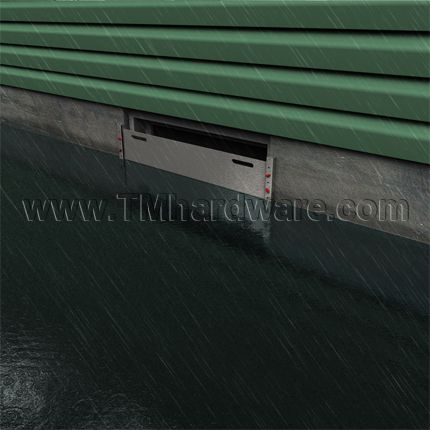

This high quality, removable barrier, specifically designed for windows, answers pleas from builders and homeowners for help in protecting doors, windows and building contents from water ingress in flood-prone areas. When water from heavy rains accumulates, the Flood Barrier Shield effectively blocks up to three feet or more of flood waters from permeating openings. The solid rubber extrusion (SRE) has been engineered to be specific for this type of application. The rubber compensates for any gaps around the door or window. As water hits the guard, the horizontal hydrostatic pressure is converted to downward pressure on the SRE causing a secure, tight seal around the perimeter of the frame.
Panel Material:Â The aluminum channels used in the Flood Barrier are extruded aluminum, while the panel is made of 5052 type marine grade aluminum.
Panel Weight: Approximately 3.2 Lb / square foot
Available Sizes: Heights from 10" - 48" and Widths from 12" - 71" can be purchased through our site. Larger dimensions will need additional supports and can be quoted by contacting us or giving us a call at 845-388-1300.
Seal:Â The key to the shield's impermeability is the use of a high quality closed cell sponge (CCS) neoprene rubber, which ensures a water-tight seal. The rubber lines the aluminum channel brackets and the bottom of the shield. The neoprene also compensates for gaps at the threshold.
Grip Handles: Grip handles are applied to allow for easy installation. Note, the grip handles are positioned within 1" above the ordered height.

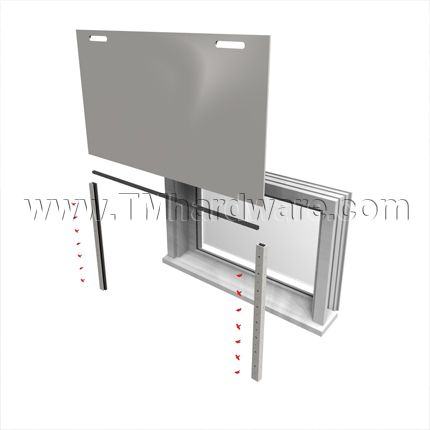

Installation: Once channels are applied, panels are quick and easy to apply with no tools required. Note, When installing, push down on top of plate to ensure compression of rubber strip at the bottom of the plate and tighten screws. Due to the weight of the plates, taller plates may require more than one person to install properly. Barrier has a convenient cut-out grip handle for simple maneuvering and installation.
Mount Type: Can be applied in an Inside Mount or Outside Mount, Select link to view specifications. Select the mounting option required above.Â

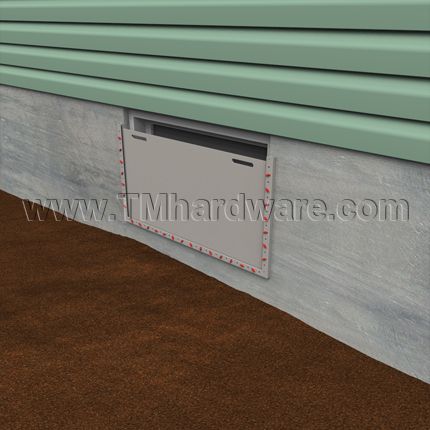

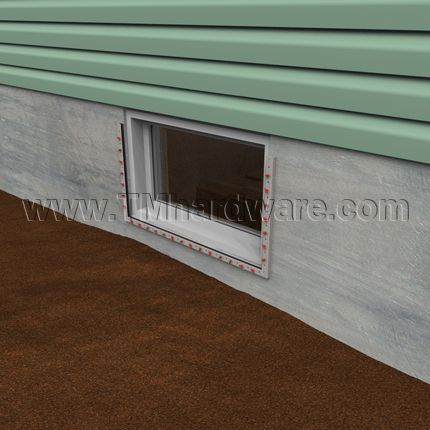

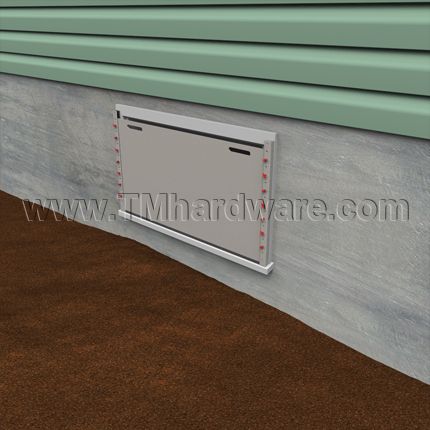

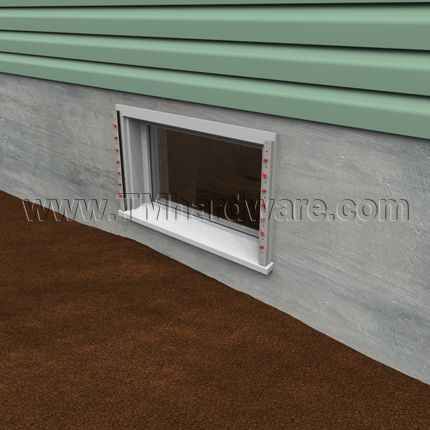

Bottom Mounting Channel: This model is designed with an extra mounting channel on the bottom to be compatible with window installation. When a window does not have a protruding sill the bottom mounting channel is required. Even with a protruding sill, we highly recommend installing the flood barrier with the bottom channel, as this prevents infiltration of water.
If a bottom mounting channel is not required you can purchase our standard Flood Barrier for Doors and apply it to your window application.
Channel Installation: We recommend using a waterproof silicone sealent like the TruSil 100 to seal the edges of the channels and bottom of threshold when installing.
Compliance Details: This flood barrier complies with FEMA and FIA Guidelines
*A Note about FEMA Certification: FEMA neither certifies products nor sends out individualized approval of products. However, this flood barrier shield does satisfy FEMA Technical Bulletin 3-93 which describes design, construction, planning, and certification requirements for the flood proofing of non-residential buildings under NFIP regulations. TM's Flood Barrier Shield for doors has been engineered to far exceed FEMA's definition of flood proofing. As a company we can provide you with a letter stating that our product does meet the minimum standards set be forth by FEMA and the U.S Army Corps of Engineers, however a letter from those specific companies does not exist to our knowledge.

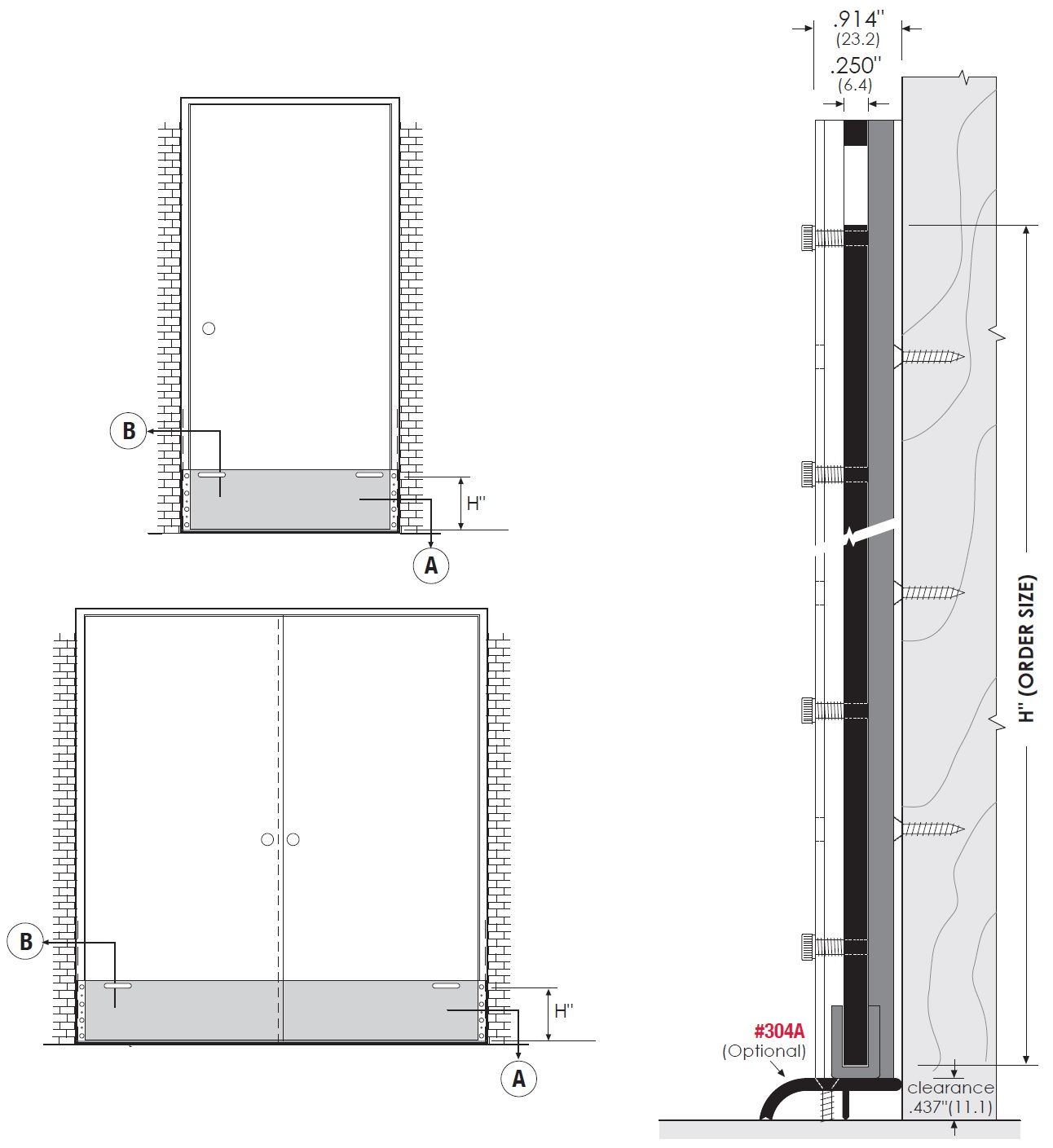

Click here to view Product Specifications.

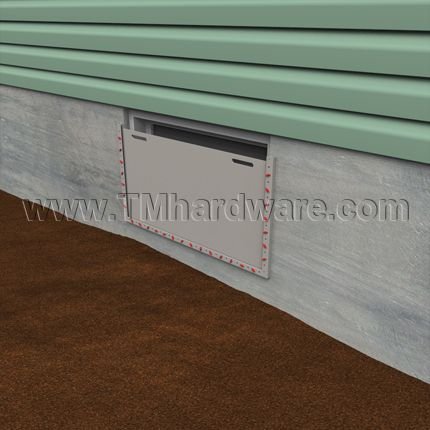

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
 Click here to view our full Warranty Policy.
Click here to return to our Flood Protection Barrier Homepage and view various accessories for the Flood Barrier.
-
SeriesTMH Flood Barrier
-
Mounting TypeInside Mount, Outside Mount
-
QuickShipNo
-
ManufacturerTrademark Hardware
-
MPN2080, 22070-CH-AA
-
Barrier Width12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50", 50.25", 50.5", 50.75", 51", 51.25", 51.5", 51.75", 52", 52.25", 52.5", 52.75", 53", 53.25", 53.5", 53.75", 54", 54.25", 54.5", 54.75", 55", 55.25", 55.5", 55.75", 56", 56.25", 56.5", 56.75", 57", 57.25", 57.5", 57.75", 58", 58.25", 58.5", 58.75", 59", 59.25", 59.5", 59.75", 60", 60.25", 60.5", 60.75", 61", 61.25", 61.5", 61.75", 62", 62.25", 62.5", 62.75", 63", 63.25", 63.5", 63.75", 64", 64.25", 64.5", 64.75", 65", 65.25", 65.5", 65.75", 66", 66.25", 66.5", 66.75", 67", 67.25", 67.5", 67.75", 68", 68.25", 68.5", 68.75", 69", 69.25", 69.5", 69.75", 70", 70.25", 70.5", 70.75", 71", 71.25", 71.5", 71.75", 72"
-
Barrier Height10" Height, 12" Height, 20" Height, 24" Height, 30" Height, 32" Height, 36" Height, 42" Height, 48" Height
Note, Window Flood Barrier shield is identical to our Door Flood Barrier Shield, except for the addition of the bottom channel.
Click to Print Mounting Options
Flood Barrier Shield is custom fabricated.
Specify exact height and width needed, and mounting option required.
Â
Â
The unit complies with standards of the Federal Emergency Management Agency (FEMA) and Federal Insurance Administration (FIA) for use on doors in flood-prone areas.
*A Note about FEMA Certification: FEMA neither certifies products nor sends out individualized approval of products. However, this flood barrier shield does satisfy FEMA Technical Bulletin 3-93 which describes design, construction, planning, and certification requirements for the flood proofing of non-residential buildings under NFIP regulations. TM's Flood Barrier Shield for doors has been engineered to far exceed FEMA's definition of flood proofing. As a company we can provide you with a letter stating that our product does meet the minimum standards set be forth by FEMA and the U.S Army Corps of Engineers, however a letter from those specific companies does not exist to our knowledge.
