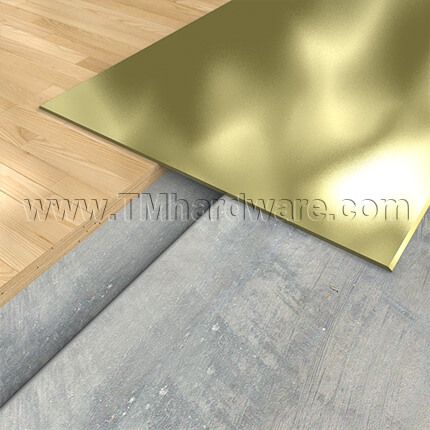

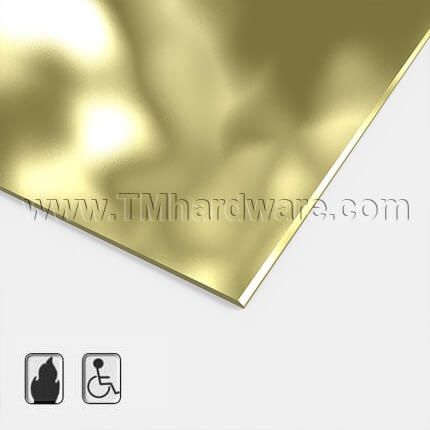

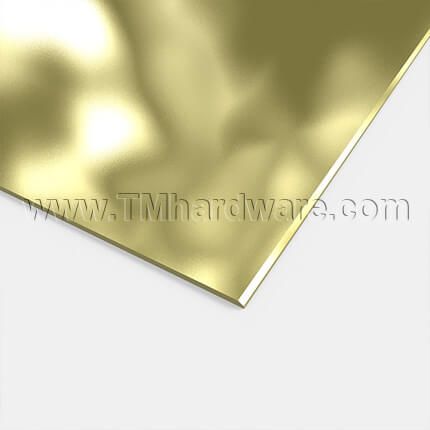

NGP 818BR Cover Plate for Expansion Joints, Brass, .125" Thick

NGP 818BR Cover Plate for Expansion Joints, Brass, .125" Thick
National Guard Products

This item has been discontinued

See tabs below for additional information
    • SKU
      NG818BR_3
    Call for price!
    845-388-1300

    NGP Brass Cover Plate Key Features:

    • Manufactured through a cold formed process providing extra durability
    • PVC coating applied to protect the finish during shipping and installation

    Material: Alloy CDA 260 Cold Formed Cartridge Brass

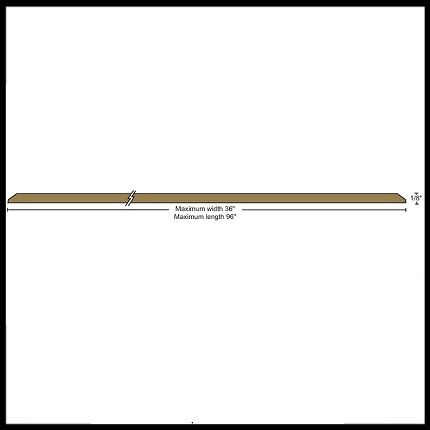

    Thickness: .125" (1/8")

    Width: Custom cut from 3" up to 36"

    Length: Custom cut to size up to 96"

    Finish: Mill Finish

    Edges: Select from the options above if 2 sided beveled edges are not required.

    Compliance Details: ADA Compliant; UL Listed; Positive Pressure Certified; ANSI/BHMA Certified.

    Installation: See installation guide in tabs below. #10 x 1-1/2" brass wood screws provided. Furnished undrilled.

    Options (Can be purchased through our office at 845-388-1300):

    • SIA- Abrasive Slip Resistant Finish
    • Polished US3 Finish

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click to view our Full Warranty Policy.

    For additional cover plates see our NGP 818 Aluminum Cover Plate for Expansion Joints, .125" Thick

      • SKU
        NG818BR_3
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      818BR
    • Width
      3" Width, 4" Width, 5" Width, 6" Width, 7" Width, 8" Width, 9" Width, 10" Width, 11" Width, 12" Width, 13" Width, 14" Width, 15" Width, 16" Width, 17" Width, 18" Width, 19" Width, 20" Width, 21" Width, 22" Width, 23" Width, 24" Width, 25" Width, 26" Width, 27" Width, 28" Width, 29" Width, 30" Width, 31" Width, 32" Width, 33" Width, 34" Width, 35" Width, 36" Width
    • Length
      12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50", 50.25", 50.5", 50.75", 51", 51.25", 51.5", 51.75", 52", 52.25", 52.5", 52.75", 53", 53.25", 53.5", 53.75", 54", 54.25", 54.5", 54.75", 55", 55.25", 55.5", 55.75", 56", 56.25", 56.5", 56.75", 57", 57.25", 57.5", 57.75", 58", 58.25", 58.5", 58.75", 59", 59.25", 59.5", 59.75", 60", 60.25", 60.5", 60.75", 61", 61.25", 61.5", 61.75", 62", 62.25", 62.5", 62.75", 63", 63.25", 63.5", 63.75", 64", 64.25", 64.5", 64.75", 65", 65.25", 65.5", 65.75", 66", 66.25", 66.5", 66.75", 67", 67.25", 67.5", 67.75", 68", 68.25", 68.5", 68.75", 69", 69.25", 69.5", 69.75", 70", 70.25", 70.5", 70.75", 71", 71.25", 71.5", 71.75", 72", 72.25", 72.5", 72.75", 73", 73.25", 73.5", 73.75", 74", 74.25", 74.5", 74.75", 75", 75.25", 75.5", 75.75", 76", 76.25", 76.5", 76.75", 77", 77.25", 77.5", 77.75", 78", 78.25", 78.5", 78.75", 79", 79.25", 79.5", 79.75", 80", 80.25", 80.5", 80.75", 81", 81.25", 81.5", 81.75", 82", 82.25", 82.5", 82.75", 83", 83.25", 83.5", 83.75", 84", 84.25", 84.5", 84.75", 85", 85.25", 85.5", 85.75", 86", 86.25", 86.5", 86.75", 87", 87.25", 87.5", 87.75", 88", 88.25", 88.5", 88.75", 89", 89.25", 89.5", 89.75", 90", 90.25", 90.5", 90.75", 91", 91.25", 91.5", 91.75", 92", 92.25", 92.5", 92.75", 93", 93.25", 93.5", 93.75", 94"
    • Edges
      2 Sided Bevel, No Bevel
