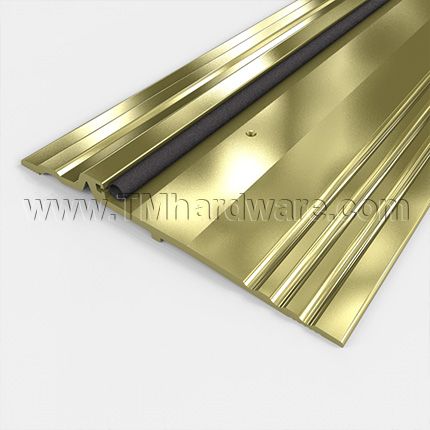

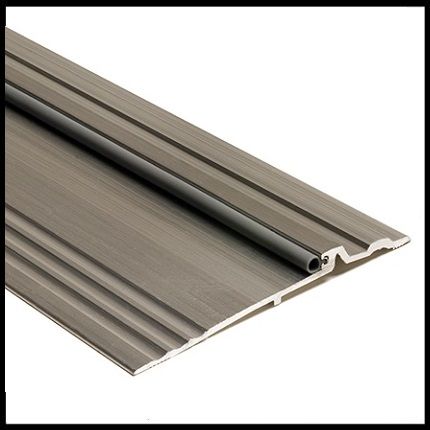

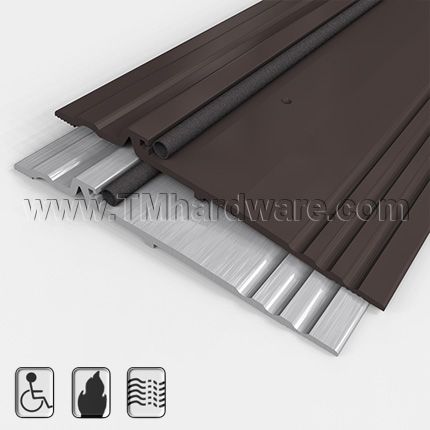

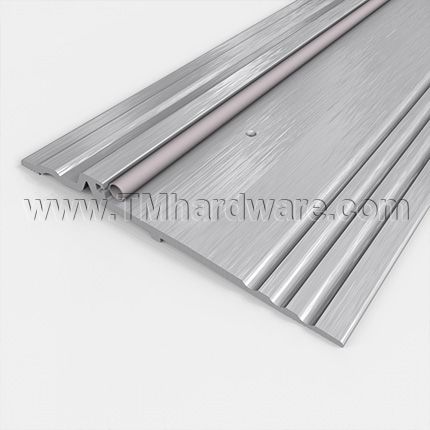

NGP 896 Latching Panic Exit Threshold, 5" Aluminum or Brass, .5" Height

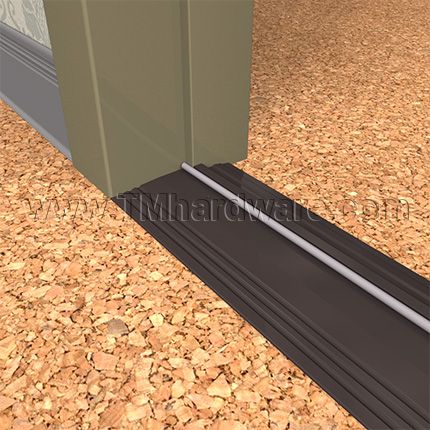

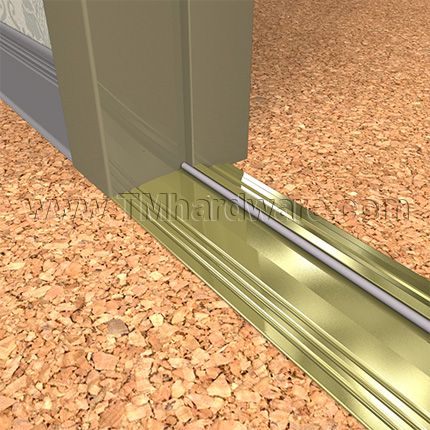

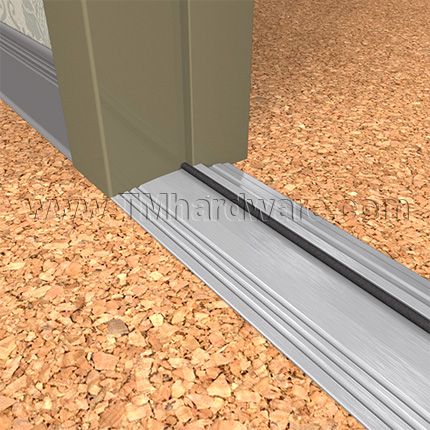

NGP 896 Latching Panic Exit Threshold is designed to be used with a surface applied vertical rod exit device and as a door bumper with a seal at the bottom of doors. It has a width of 5" with a full height of .5" which creates a barrier against dirt, dust, drafts and light infiltration. Available in two aluminum finishes and a brass finish with a choice of seals. Length is custom cut to size.
PRICED PER FOOT - See full product details and specs in the tabs below
NGP 896 Latching Panic Exit Threshold Key Features:
Threshold design is compatible with a surface applied vertical rod exit device.
Material: Aluminum Alloy 6063, T5 Temper; Alloy CDA 385 (Copper Alloy No. C38500)
Width: 5"
Height: .5" (1/2")
Length: Custom cut to size

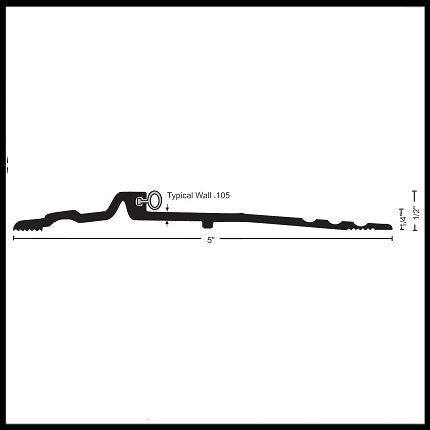

Typical Wall Thickness: .105" for aluminum .120" for brass
Weight: .64 lbs./Ft. for aluminum, 1.94 lbs./ft. for brass
Inserts: Gray Vinyl, Black Silicone, Black NGP-TPV

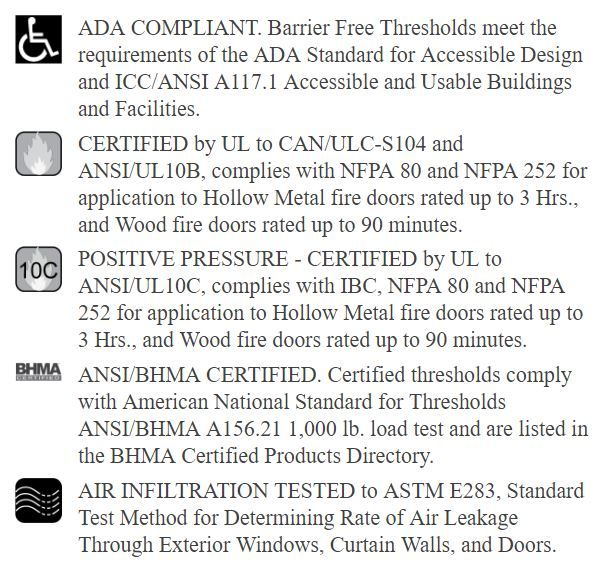

Compliance Details: ADA Compliant, UL Listed, ANSI/BHMA Certified, Air Infiltration Tested, Positive Pressure Certified.

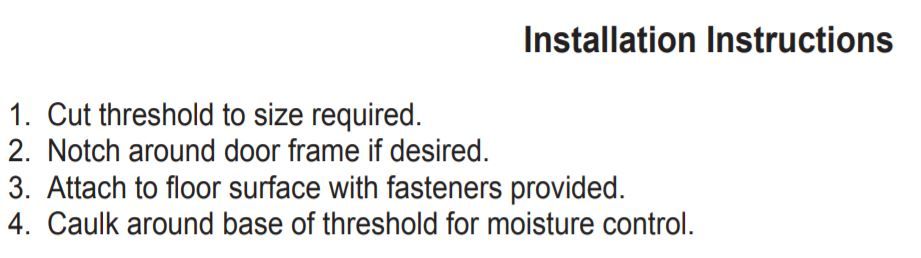

Installation: See Installation Guide tab.
- If threshold is being drilled into concrete, an Expansion Anchor is recommended.
- #10 x 1-1/2” FH zinc/brass plated wood screws provided.
- Dark Bronze Aluminum thresholds are supplied with dark bronze plated screws
Drilling: Threshold is drilled in standard factory locations.
Options (Can be purchased through our office at 845-388-1300):
- SIA - Slip Resistant Finish
- Polished (721) Finish for Brass Threshold
- Dark Oxidized Oil Rubbed (722) Finish for Brass Threshold
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For additional thresholds see our NGP 896HD Heavy Duty Latching Panic Exit Threshold .5" Height
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN896V, 896S, 896N
-
SealVinyl, Silicone, NGP-TPV
- Dimensions
-
Overall Height.5" Height
-
Overall Width5" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.625" Height
-
Thickness.105" Thick, .120" Thick
-
- Product Design
-
Flat Saddle DesignSmooth Top Design
-
Threshold TypeLatching Panic Exit Threshold
-
MaterialBrass, Aluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-

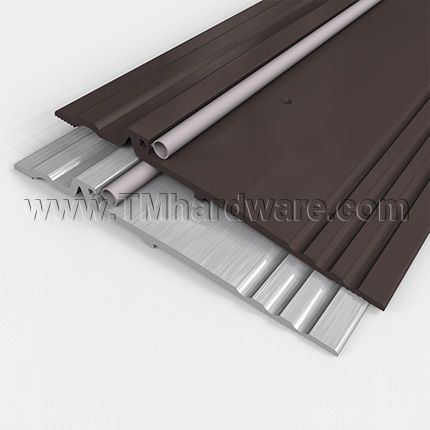

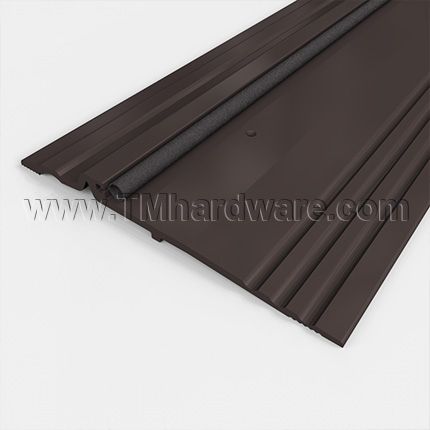

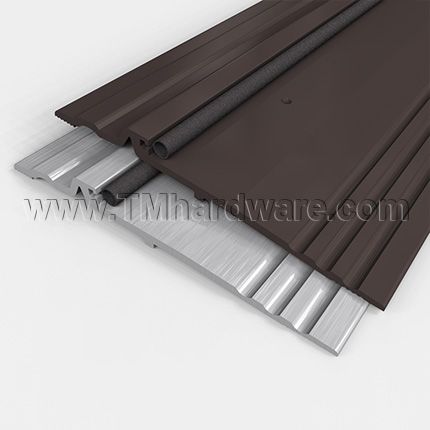

FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313), Bronze Mill Finish (Brass)
-
- Compliance Details
-
Warranty3 Year Limited Warranty
-
