Pemko #S776BL Adhesive Weatherstrip, 1" Silicone Seal with 6 Fins, .375" Profile

This triple-fin wetherstrip gasketing slows and prohibits smoke, fire, weather, sound and dirt from infiltrating a room. It is easily installed along the perimeter of the door with a self-adhesive backing. The seal is made of high quality silicone which can withstand temperature extremes. Available in Black Silicone.

SOLD BY THE FOOT - Seal can be easily resized with household scissors. If more than 500' is required, adjust quantity as necessary.

See tabs below for additional information
    • SKU
      PKS776BL
    • Market price:$30.24
      • save 20%
    • Starting price: Price: $24.20 per foot

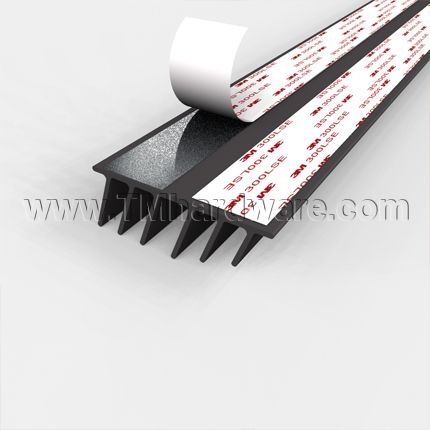

    This Six Fin Self-Adhesive Silicone Weatherstrip is designed to be applied to the full perimeter of door, to seal the gap between the door and the door frame. The six fin design is particularly effective in blocking sound and light from infiltrating, great for hotels and dormitory condos. It is easily installed to reduce infiltration of smoke, fire, weather, sound and dirt. It also provides protection from weather conditions and minimizes heat loss. Available in black silicone and is sold by the foot.

    Silicone Rubber: This silicone door gasket is extruded from high temperature silicone rubber, which is effective between -76°F and 446°F, making it ideal for an exterior door. It is self-extinguishing, non-toxic, is unaffected by ozone, ultraviolet rays and sunlight and is impervious to mildew and fungus.

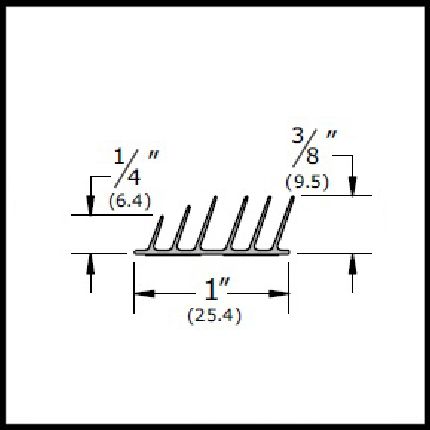

    Dimensions: The base of the seal has a width of 1" while the fins extends upward starting at .25" (1/4) and gradually reaching a total of .375" (3/8") height. It begins compressing at .375" (3/8") and compresses to seal gaps as small as .0625" (1/16").

    Installation: The gasket is easily installed with a high quality self-adhesive backing. Please note, this product has a limited shelf life. Product must be used within 6 months of purchase and must be stored between 50°F and 100°F.

    Compliance: Self-Adhesive Weatherstripping is rated for fire, smoke and air infiltration and is BHMA Compliant.

    • High Grade Silicone Rubber
    • Full Perimeter Gasket
    • Self-Adhesive Backing for Easy Installation
    • Seals Gaps from 3/8” – 1/16”
    • Reduces Transfer of Heat and Cold Air
    • Great Design for Hotels and Condos

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click to view our Full Warranty Policy.

    For smaller gaps, consider our 1" Silicone Seal with 6 Fins, .313" Profile.

      • SKU
        PKS776BL
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      S776
    • Length
      4', 5', 6', 7', 8', 9', 10', 11', 12', 13', 14', 15', 16', 17', 18', 19', 20', 21', 22', 23', 24', 25', 26', 27', 28', 29', 30', 31', 32', 33', 34', 35', 36', 37', 38', 39', 40', 41', 42', 43', 44', 45', 46', 47', 48', 49', 50', 51', 52', 53', 54', 55', 56', 57', 58', 59', 60', 61', 62', 63', 64', 65', 66', 67', 68', 69', 70', 71', 72', 73', 74', 75', 76', 77', 78', 79', 80', 81', 82', 83', 84', 85', 86', 87', 88', 89', 90', 91', 92', 93', 94', 95', 96', 97', 98', 99', 100', 101', 102', 103', 104', 105', 106', 107', 108', 109', 110', 111', 112', 113', 114', 115', 116', 117', 118', 119', 120', 121', 122', 123', 124', 125', 126', 127', 128', 129', 130', 131', 132', 133', 134', 135', 136', 137', 138', 139', 140', 141', 142', 143', 144', 145', 146', 147', 148', 149', 150', 151', 152', 153', 154', 155', 156', 157', 158', 159', 160', 161', 162', 163', 164', 165', 166', 167', 168', 169', 170', 171', 172', 173', 174', 175', 176', 177', 178', 179', 180', 181', 182', 183', 184', 185', 186', 187', 188', 189', 190', 191', 192', 193', 194', 195', 196', 197', 198', 199', 200', 201', 202', 203', 204', 205', 206', 207', 208', 209', 210', 211', 212', 213', 214', 215', 216', 217', 218', 219', 220', 221', 222', 223', 224', 225', 226', 227', 228', 229', 230', 231', 232', 233', 234', 235', 236', 237', 238', 239', 240', 241', 242', 243', 244', 245', 246', 247', 248', 249', 250', 251', 252', 253', 254', 255', 256', 257', 258', 259', 260', 261', 262', 263', 264', 265', 266', 267', 268', 269', 270', 271', 272', 273', 274', 275', 276', 277', 278', 279', 280', 281', 282', 283', 284', 285', 286', 287', 288', 289', 290', 291', 292', 293', 294', 295', 296', 297', 298', 299', 300', 301', 302', 303', 304', 305', 306', 307', 308', 309', 310', 311', 312', 313', 314', 315', 316', 317', 318', 319', 320', 321', 322', 323', 324', 325', 326', 327', 328', 329', 330', 331', 332', 333', 334', 335', 336', 337', 338', 339', 340', 341', 342', 343', 344', 345', 346', 347', 348', 349', 350', 351', 352', 353', 354', 355', 356', 357', 358', 359', 360', 361', 362', 363', 364', 365', 366', 367', 368', 369', 370', 371', 372', 373', 374', 375', 376', 377', 378', 379', 380', 381', 382', 383', 384', 385', 386', 387', 388', 389', 390', 391', 392', 393', 394', 395', 396', 397', 398', 399', 400', 401', 402', 403', 404', 405', 406', 407', 408', 409', 410', 411', 412', 413', 414', 415', 416', 417', 418', 419', 420', 421', 422', 423', 424', 425', 426', 427', 428', 429', 430', 431', 432', 433', 434', 435', 436', 437', 438', 439', 440', 441', 442', 443', 444', 445', 446', 447', 448', 449', 450', 451', 452', 453', 454', 455', 456', 457', 458', 459', 460', 461', 462', 463', 464', 465', 466', 467', 468', 469', 470', 471', 472', 473', 474', 475', 476', 477', 478', 479', 480', 481', 482', 483', 484', 485', 486', 487', 488', 489', 490', 491', 492', 493', 494', 495', 496', 497', 498', 499', 500'

    Click to Print

    Product Specs for 6 Fin Silicone Weatherstrip by Pemko, S776

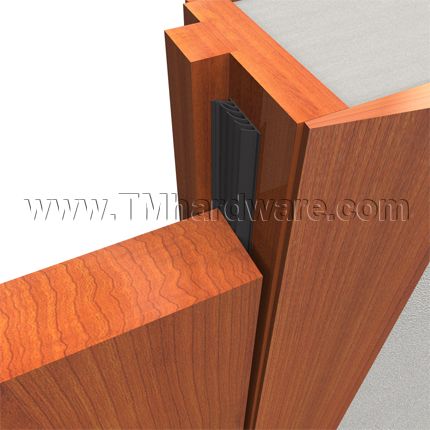

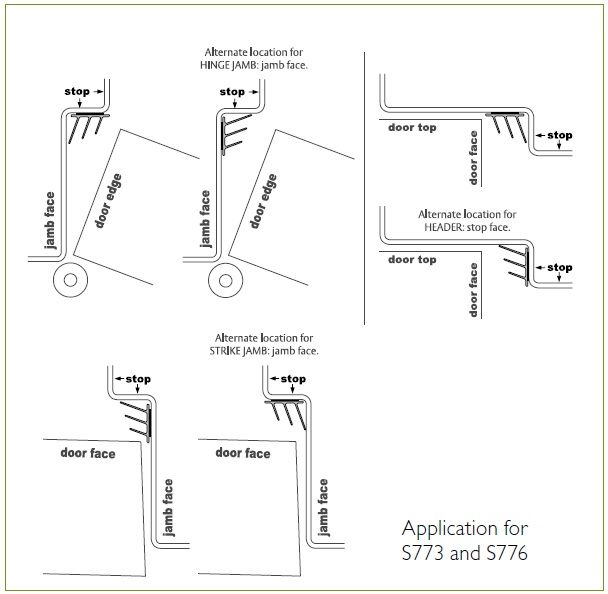

    Sample Application

    Sample Application for 6 Fin Silicone Weatherstrip by Pemko, S776

    Click to Print Installation Tips

    Installation Tips:

    • All adhesive gaskets have a limited shelf life. These products must be used within 6 months of purchase and must be stored between 50ºF and 100ºF.
    • Thoroughly clean the frame with the enclosed cleansing towelette to remove grease, dust or cleanser build-up. Before installation, wait for frame surface to completely dry (evaporate). Some hospital environments have wax or anti-bacterial cleanser build-up. As an alternative or substitute cleanser, use isopropyl (rubbing) alcohol. Note: Mineral spirits or other petroleum based cleaning products should NOT be used.
    • If frames are too cold (below 50ºF) or too hot (above 100ºF) adhesion may be impaired.
    • Installation should take place after construction is completed, flooring is installed and final cleaning is completed.
    • Paint on frame must be cured for at least 5-7 days. Paint cannot be wet under dry surface when gaskets are pressed on. Avoid quick-dry primers, which leave a powdery surface preventing sufficient adhesion. When applying to a wood frame, the surface must be non-porous and sealed. Follow standard industry guidelines on sealed wood frames and/or rough surface before applying. Note: Anti-bacterial, anti-fungal or silicone additives in paint may inhibit adhesion.
    • Do NOT stretch material. Product can retract or shrink if stretched.
    • Use very firm, perpendicular pressure when applying. Use wallpaper seam roller to reinforce adhesion after applying.
    • Do not stretch material when using seam roller. Run roller with up and down motions.
    • Double check adhesion after 2-3 hours before leaving job overnight.
    • If gaskets separate from the frame, press again with firm pressure in place. If adhesive strip is exposed, airborne dust may impede adhesion. Replacement may be necessary.
    • Application at header can be awkward due to overhead condition. Be sure to apply enough pressure.
    • Adhesion takes delayed set. Immediate removal and resetting can be done if error occurs in initial placement. DO NOT reset after one hour. Full set is reached in 24 hours.
    •
