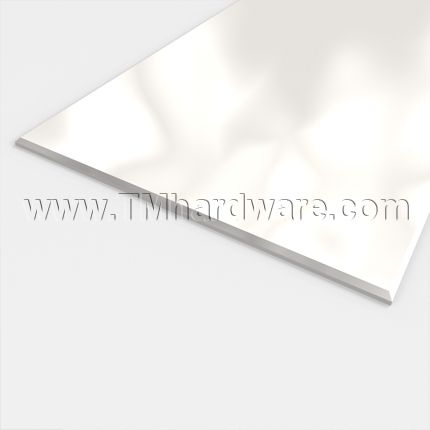

Pemko #14/1 Cover Plate for Expansion Joint, Aluminum with Pemkote, .25” Thick
Commercial Aluminum Cover Plates can be used whenever unusual floor conditions necessitate covering or evening out of floor surface, such as the placement of expansion joints between flooring. This fire rated and wheelchair accessible cover plate is .25” thick and has many customized options.
PRICED PER SQUARE INCH
How to Order: Select desired options from each drop-down box below to calculate final price.
This Aluminum Cover Plate for Commercial Applications can be used to cover or even-out the floor surfaces beneath it. It can be combined with other products and with supports and accessories to solve almost any floor condition.
One application is the placement of plates over expansion joints, or gaps, left between two flooring areas to prevent warping of floor materials resulting from the expansion and shrinkage due to seasonal temperature changes. When plates are placed between the floor surfaces, they supply the flexibility needed to allow for possible floor changes.

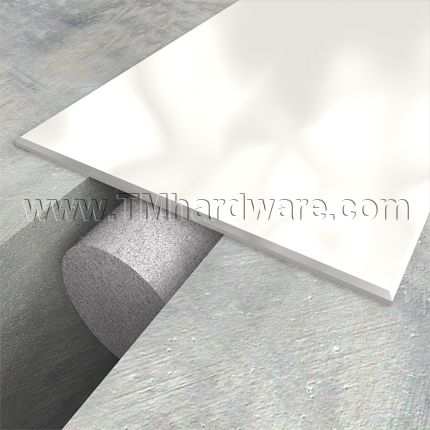

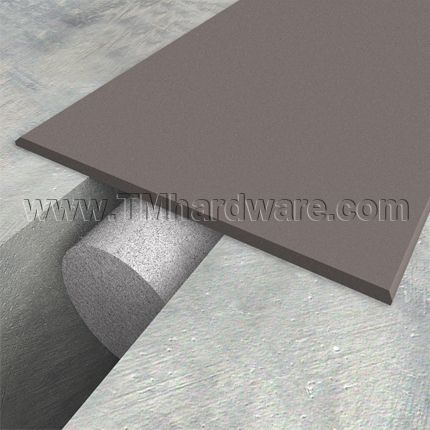

This strong aluminum plate is applied above the gap and fastened to one side of the floor. This will allow the two floors to move independently of each other. Available in standard aluminum and non-slip PemKote™ finish. Beveling and drilling options can be chosen from options above. It is fire rated, ADA compliant, and non-slip tested (with PemkoteTM option).

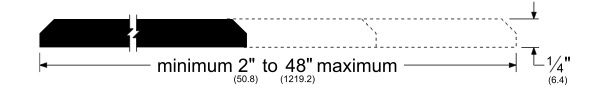

Dimensions: Standard widths are available and length is custom cut to size. Plates thickness is .25” (see product specs).
Installation Notes: Elevated plates require support every 4” on center, at welded seams or as needed for support. See our Floor Plate Support Accessory for more information.
Screws: Plates are furnished with #10 x 1 ⁄2" plated wood screws.The amount of screws needed are as follows: one (1) screw per foot up to 8" wide; two (2) screws per foot 8" to 12" wide; and three (3) screws per foot over 12" wide.
When installing into concrete, anchors are recommended. Anchors can be ordered through our office. Please contact us or call us at 845-388-1300 for details.
- Fire Rated
- ADA Compliant (Applied to PemKote™ Finish only)
- Non-Slip Tested (Applied to PemKote™ Finish only)
- Width available in standard sizes, Length is custom cut
- .25” Plate thickness
- Option for Beveled Edges
- Surface mounted above expansion joints
- Prevents floor warping
Additional options listed below are available for this product.

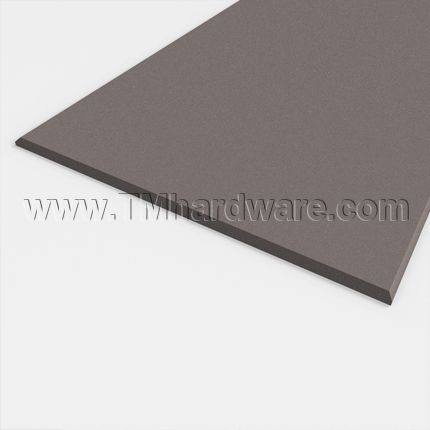

PemKote™ Finish: Plates are ADA compliant only when ordered with PemKote finish. PemKote™ Non-Slip surface, a rugged, abrasive, skid resistant coating, has an extremely high bond strength and excellent resistance to oxidation. It provides safety in environments used by youths and people with disabilities. It is particularly recommended for thresholds placed in exterior conditions where moisture may be present. Choose from ‘Finish’ option above.
Edges: Both width- side edges are beveled at a 45° angle; and 'single edge bevel' or 'no bevel' is also available at no extra cost. Choose from ‘Edge’ option above.
Drilling: Standard locations can be provided, if required select from options above. For custom drilling holes and locations a template will need to be supplied. Please contact us or call us at 845-388-1300 for details. Drilling is recommended for PemKote™ finish, as it is really difficult to drill through this coating.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
PemKote™ Finish has a 10 year guarantee.
Click here to view our Full Warranty Policy.
Click here to view our Straight Edge Fluted Expansion Joist Cover Plates.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN14/1
-
Width2" Width, 3" Width, 4" Width, 5" Width, 6" Width, 7" Width, 8" Width, 9" Width, 10" Width, 11" Width, 12" Width, 13" Width, 14" Width, 15" Width, 16" Width, 17" Width, 18" Width, 19" Width, 20" Width, 21" Width, 22" Width, 23" Width, 24" Width, 25" Width, 26" Width, 27" Width, 28" Width, 29" Width, 30" Width, 31" Width, 32" Width, 33" Width, 34" Width, 35" Width, 36" Width, 37" Width, 38" Width, 39" Width, 40" Width, 41" Width, 42" Width, 43" Width, 44" Width, 45" Width, 46" Width, 47" Width, 48" Width
-
EdgeTwo Sided Bevel, Single Edge Bevel, No Bevel
- Dimensions
-
Overall Height.25" Height
-
Threshold LengthCustom Cut to Size
-
- Product Design
-
Flat Saddle DesignSmooth Top Design
-
Threshold TypeThreshold Accessory
-
MaterialAluminum
-
- Finishes
-

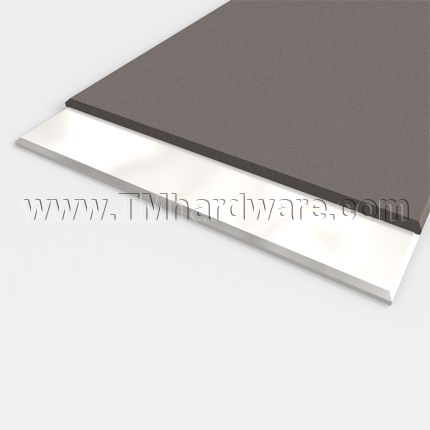

FinishMill Finish Aluminum (US27), Aluminum PemKote™
-
- Compliance Details
-
Compliance DetailsFire Rated, BHMA Certified
-
Warranty5 Year Limited Warranty
-
Click to View Ratings Explained
Handicap Accessibility and non-Slip rating applies to plates with PemKoteTM non-slip coating.
